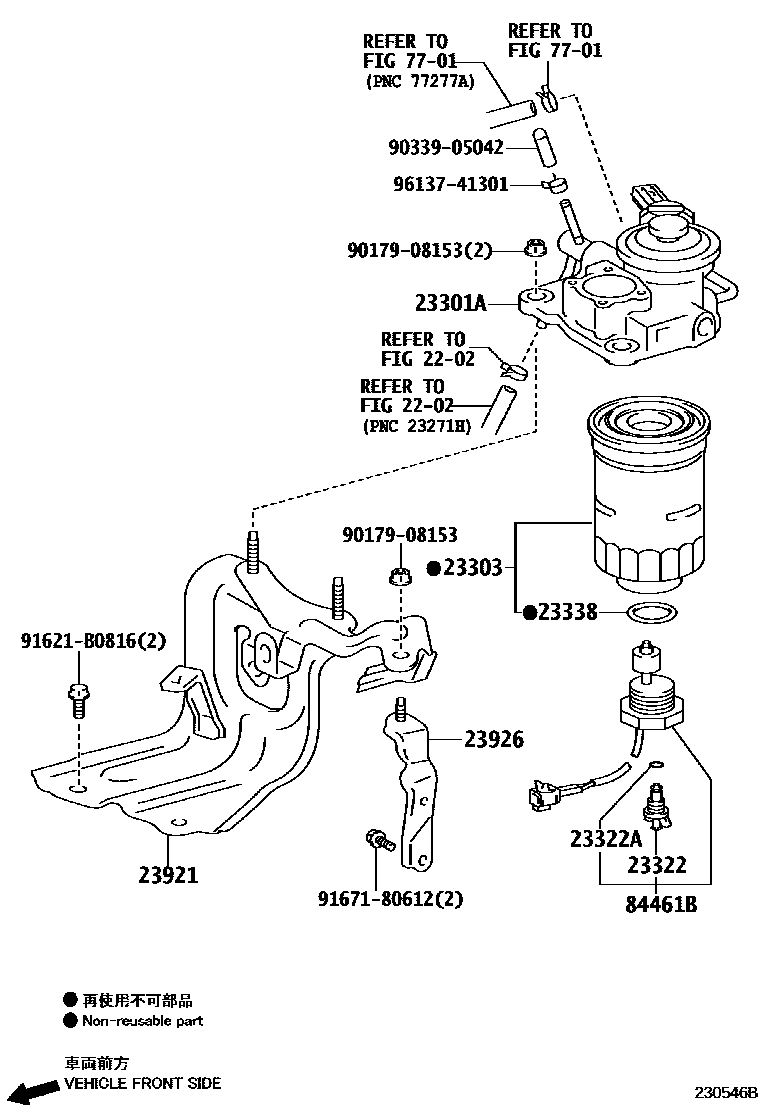

FUEL FILTER

2202

23301ACAP ASSY, FUEL FILTER

main23380-33090i1NDTV..NDE170201405-201702

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26280i1NDTV..NDE170201405-201702

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NDE170201405-201702

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NDE170201405-201702

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NDE170201405-201702

23921SUPPORT, FUEL FILTER

main23904-0N020i1NDTV..NDE170201405-201702

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0N020i1NDTV..NDE170201405-201702

7701

84461BSWITCH, LEVEL WARNING

main84461-28041iNDE170201405-201702

9017908153

main90179-08153

9033905042

main90339-05042

91621B0816

main91621-B0816

9167180612

main91671-80612

9613741301

main96137-41301

15 parts on this diagram · 1 diagram in section
