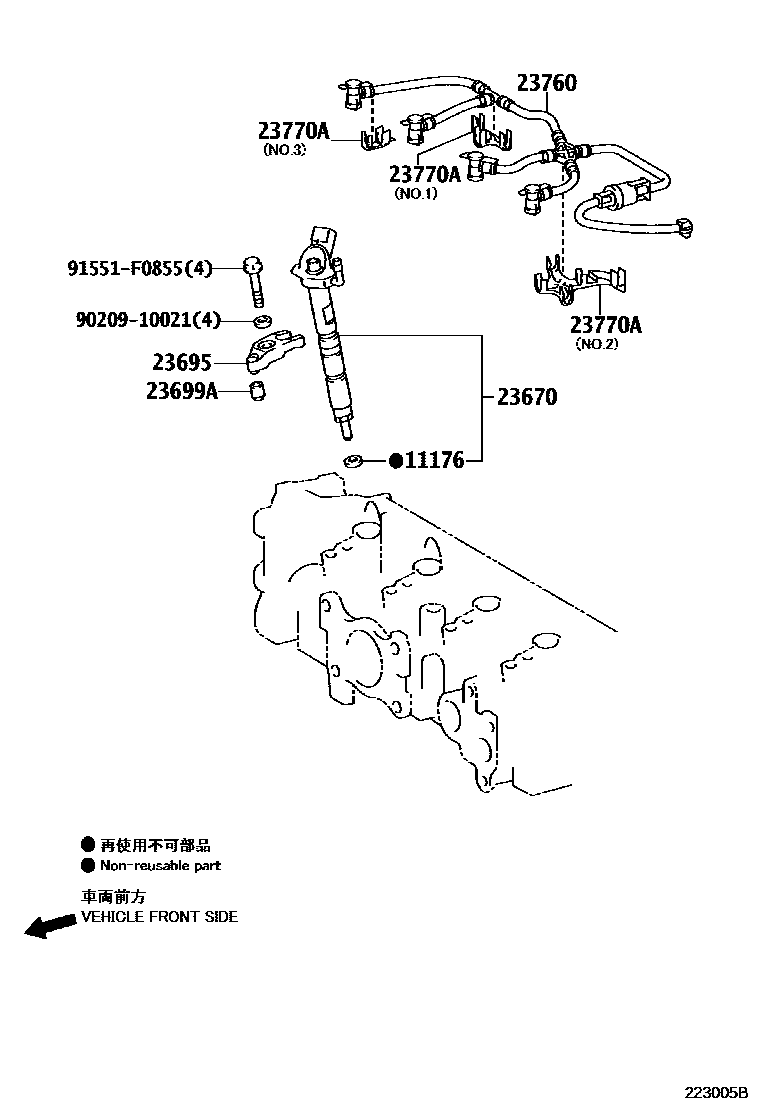

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010i1NDTV..NDE170201405-201906

23670INJECTOR ASSY

main23670-09370i1NDTV..NDE170201405-201906

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-33020i1NDTV..NDE170201405-201906

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-33020i1NDTV..NDE170201405-201906

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0W010i1NDTV..NDE170201405-201906

23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)

main23841-33030i1NDTV..NDE170201405-201906

NO.1:REFER ILLUST.

main23841-33040i1NDTV..NDE170201405-201906

NO.2:REFER ILLUST.

main23841-33050i1NDTV..NDE170201405-201906

NO.3:REFER ILLUST.

9020910021

main90209-10021

91551F0855

main91551-F0855

8 parts on this diagram · 1 diagram in section
