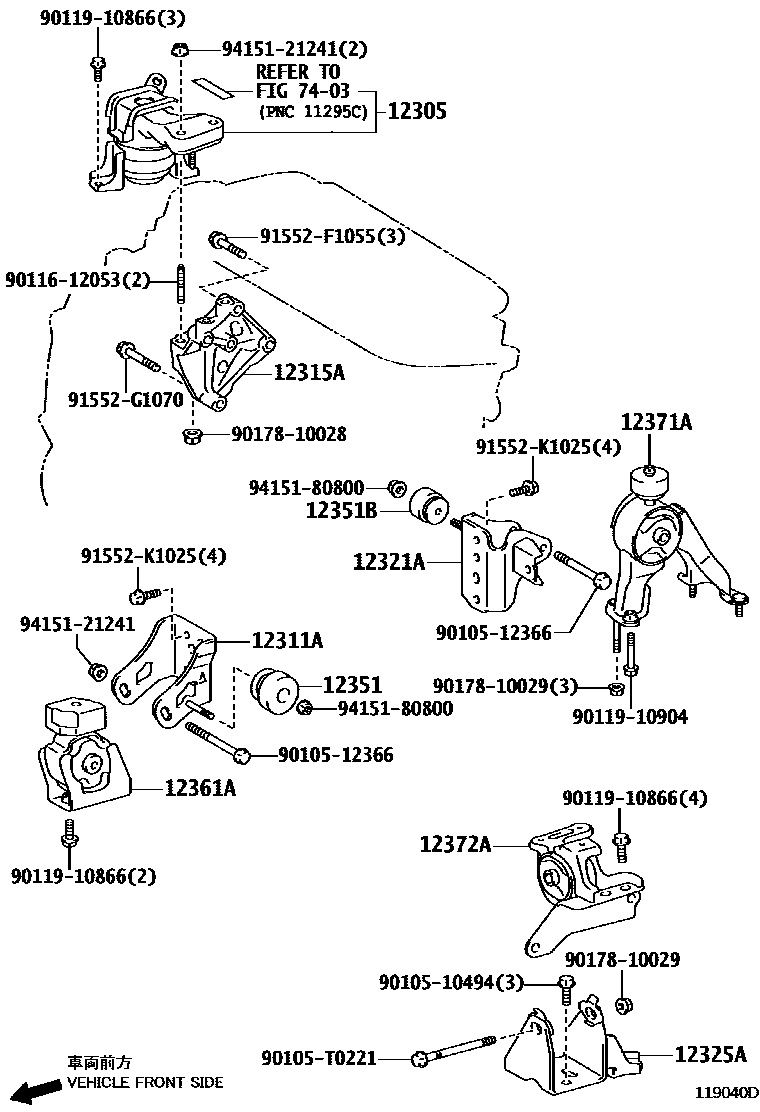

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0D160i1ZZFE..ZZE172201310-201409

main12305-0T091i3ZRFE..ZRE173..4FC201310-201512

main12305-0T092i3ZRFE..ZRE173201708-202007

main12305-0T200i2ZRFE..ZRE172..6F..PKN201611-202109

main12305-0T210i1ZRFE..ZRE171..6F..GLI201310-201511

main12305-0T211i1ZRFE,2ZRFE..ZRE171,172..GCC,TAIW201708-201903

main12305-0T260i2ZRFE..ZRE172..IND201703-201906

main12305-21550i2NZFE..NZE170201407-201707

main12305-33160i1NDTV..NDE170201405-201702

main12305-33161i1NDTV..NDE170201801-201906

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0D230i1ZZFE..ZZE172..4FC201310-201409

main12311-0M010i2NZFE..NZE170..5F201707-201911

main12311-0M020i2NZFE..NZE170..4FC201707-201911

main12311-0T130i3ZRFE..ZRE173201610-202007

main12311-0T200i1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,SGP,TH,VN)201611-202201

sub12311-37020

main12311-0T210i1ZRFE..ZRE171..6F..N201707

main12311-0T230i1ZRFE..ZRE171..CVT..GCC201512-201609

main12311-0T250i1ZRFE..ZRE171..4FC..GCC201310-201512

main12311-0T260i1ZRFE..ZRE171..4FC..GEN201611-201907

sub12311-37150

main12311-0T300i1ZRFE..ZRE171..N201407-201707

main12311-0T310i2ZRFE..ZRE172..6F..IND201312-201702

sub12311-37160

main12311-0T420i2ZRFE..ZRE172..CVT..PKN201407-201707

main12311-0T430i3ZRFE..ZRE173..6F201310-201511

main12311-0T440i1ZRFE..ZRE171..6F..GLI201310-201511

main12311-22280i1ZZFE..ZZE172..5F201310-201409

main12311-33050i1NDTV..NDE170201703-201906

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0M020i2NZFE..NZE170201407-201707

main12315-0T030i1ZRFE,3ZRFE..ZRE171,173..CVT..GCC201512-201609

(L)

main12315-22050i1ZZFE..ZZE172201310-201409

main12315-33050i1NDTV..NDE170201703-201906

main12315-37030i2ZRFE,3ZRFE..ZRE172,173..VN201410-201709

(J)

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0D081i1ZZFE..ZZE172..4FC201310-201409

main12321-0D171i2NZFE..NZE170..5F201707-201911

main12321-0M050i2NZFE..NZE170..4FC201707-201911

main12321-0T160i3ZRFE..ZRE173..4FC201310-201512

main12321-0T450i1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,SGP,TH,VN)201611-202201

main12321-0T460i2ZRFE..ZRE172..CVT..PKN201407-201707

main12321-0T470i1ZRFE..ZRE171..CVT..GCC201512-201609

main12321-0T480i3ZRFE..ZRE173..6F201310-201511

main12321-0T490i2ZRFE..ZRE172..6F..IND201310-201702

main12321-0T520i1ZRFE..ZRE171..N201310-201707

main12321-0T550i1ZRFE..ZRE171..6F..N201707

main12321-0T580i3ZRFE..ZRE173..GCC201512-201609

main12321-22261i1ZZFE..ZZE172..5F201310-201409

main12321-33020i1NDTV..NDE170201405-201702

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-0T130i3ZRFE..ZRE173..4FC201310-201512

main12325-0D120i1ZZFE..ZZE172..4FC201310-201409

main12325-0T240i2ZRFE..ZRE172..6F..VN201312-201709

main12325-0T250i1ZRFE,2ZRFE..ZRE17#..CVT202501

(L)

main12325-0T260i2ZRFE..ZRE172..TAIW201310-201609

main12325-0T270i3ZRFE..ZRE173201610-202007

main12325-0T280i1ZRFE..ZRE171..4FC..GEN201312-201610

sub12325-37150

main12325-0T290i1ZRFE..ZRE171..4FC..GCC201310-201512

main12325-0T340i2ZRFE..ZRE172..6F..IND201703-201906

main12325-0T400i3ZRFE..ZRE173..6F201310-201511

main12325-0T410i1ZRFE..ZRE171..6F..GCC201610-201903

main12325-21200i2NZFE..NZE170..5F201707-201911

main12325-21280i2NZFE..NZE170..4FC201707-201911

main12325-22330i1ZZFE..ZZE172..5F201310-201409

main12325-33070i1NDTV..NDE170201703-201906

main12325-37010i1ZRFE,2ZRFE..ZRE17#..CVT202501

(J)

12351DAMPER, ENGINE MOUNTING

main12351-0T240i3ZRFE..ZRE173..6F201310-201511

main12351-11130i1NDTV..NDE170201405-201702

main12351-22080i2NZFE..NZE170..4FC201407-201707

main12351-26010i2ZRFE..ZRE172..18E..VN201610-202007

12351BDAMPER, ENGINE MOUNTING

main12351-0T250i2ZRFE..ZRE172..6F..IND201310-201702

main12351-11072i2NZFE..NZE170..4FC201407-201707

main12351-11130i1ZZFE..ZZE172..5F201310-201409

main12351-37120i1NDTV..NDE170201405-201702

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0D210i2ZRFE..ZRE172..6F..VN201312-201709

main12361-0D220i2ZRFE..ZRE172..CVT..PKN201312-201707

main12361-0D232i1ZRFE..ZRE171..CVT..GCC201512-201609

main12361-0D233i1ZRFE,2ZRFE..ZRE171,172..CVT..(GCC,TAIW)201708-201903

main12361-0T092i3ZRFE..ZRE173..GCC201512-201609

main12361-0T093i3ZRFE..ZRE173..VN201708-201709

main12361-0T130i1ZRFE..ZRE171..N201312-201707

main12361-0T141i1ZRFE..ZRE171..4FC..GCC201310-201512

main12361-0T260i1ZRFE..ZRE171..6F..XLI..GCC201310-201609

main12361-0T310i2ZRFE..ZRE172..6F..ARL201611-201907

main12361-0T320i2ZR#..ZRE172..CVT..(ARL,TH)201611-201907

main12361-21080i2NZFE..NZE170..5F201407-201707

main12361-21090i2NZFE..NZE170..4FC201707-201911

main12361-33040i1NDTV..NDE170201405-201702

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0T090i3ZRFE..ZRE173..4FC201310-201512

main12371-0T180i3ZRFE..ZRE173..GCC,MA,PHL201610-201707

main12371-0T181i3ZRFE..ZRE173..VN201708-201709

main12371-0T320i1ZRFE..ZRE171..16J..HTWC201312-201601

main12371-0T330i1ZRFE..ZRE171..CVT..(PHL,SGP);1ZRF,1ZRFBE,2ZRFE..ZRE171,172..CVT..(ARL,IDN,MA,TH)201312-201610

main12371-0T340i1ZRFE..ZRE171..CVT..GCC201512-201609

main12371-0T350i3ZRFE..ZRE173..6F201310-201511

main12371-0T360i1ZRFE..ZRE171..4FC..GCC201310-201512

main12371-0T370i1ZRFE..ZRE171..4FC201611-202208

main12371-0T380i1ZRFE..ZRE171..6F..XLI..GCC201310-201609

main12371-21240i2NZFE..NZE170..5F201407-201707

main12371-21320i2NZFE..NZE170..4FC201407-201707

main12371-33081i1NDTV..NDE170201703-201906

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0D210i1ZZFE..ZZE172..5F201310-201409

main12372-0N080i1NDTV..NDE170201703-201906

main12372-0T201i2ZRFE..ZRE172..6F..PKN201611-202109

main12372-0T211i2ZRFE..ZRE172..CVT..PKN201312-201707

main12372-0T370i1ZRFE,2ZRFE..ZRE171,172..CVT..(GCC,TAIW)201610-201903

main12372-0T380i3ZRFE..ZRE173..4FC201310-201512

main12372-0T400i3ZRFE..ZRE173..6F201310-201511

main12372-0T410i1ZRFE..ZRE171..4FC..GCC201310-201512

main12372-0T420i1ZRFE..ZRE171..4FC..GEN201312-201610

main12372-0T430i1ZRFE..ZRE171..6F..GLI201310-201511

main12372-0T440i3ZRFE..ZRE173..VN201312-201709

main12372-21380i2NZFE..NZE170..4FC201707-201911

main12372-21440i2NZFE..NZE170..5F201707-201911

7403

9010510494

main90105-10494

9010512366

main90105-12366

90105T0221

main90105-T0221

9011612053

main90116-12053

9011910866

main90119-10866

9011910904

main90119-10904

9017810028

main90178-10028

9017810029

main90178-10029

91552F1055

main91552-F1055

91552G1070

main91552-G1070

91552K1025

main91552-K1025

9415121241

main94151-21241

9415180800

main94151-80800

24 parts on this diagram · 13 diagrams in section
