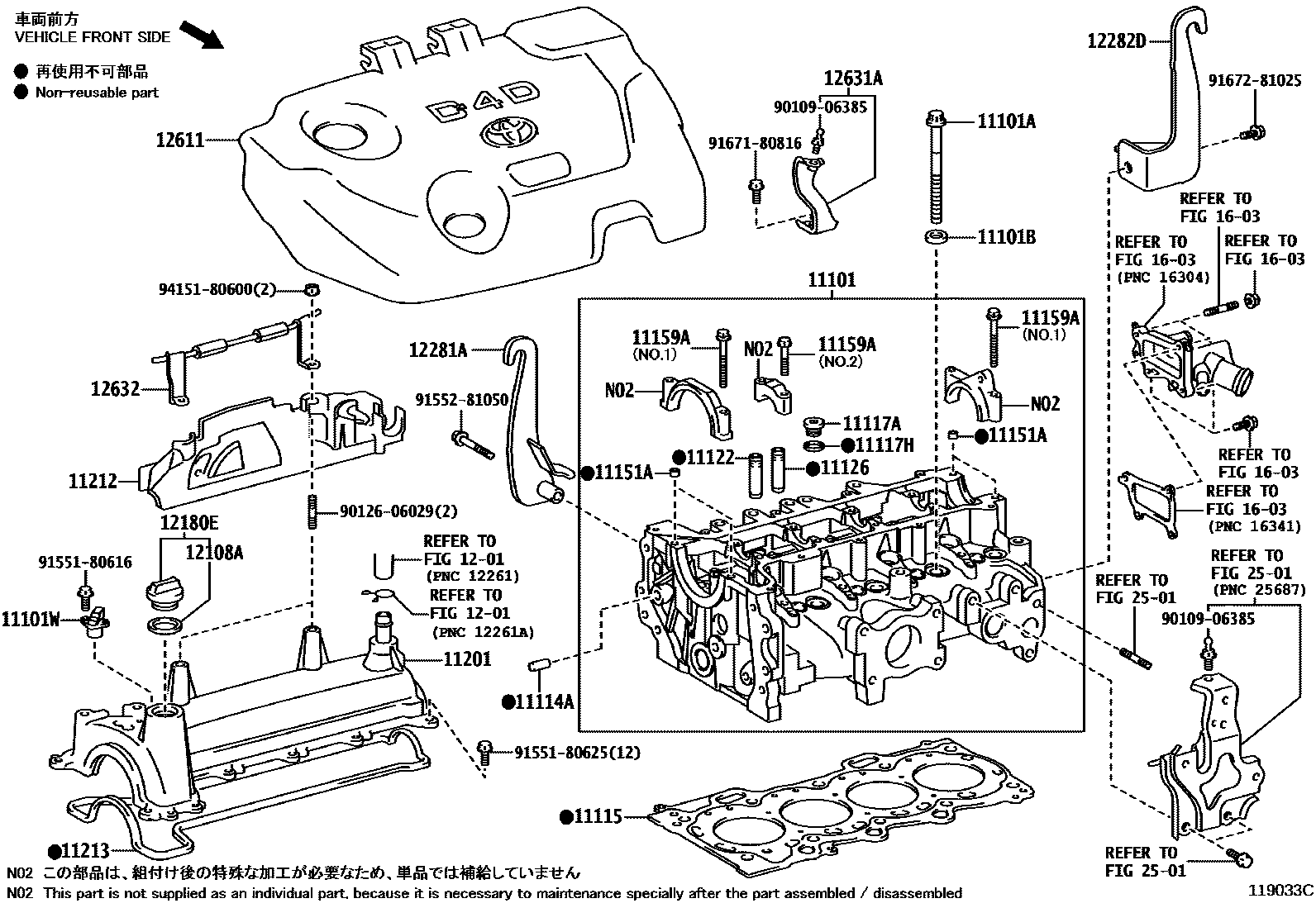

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(L)
(J),(L)
MADE IN JAPAN
main11101-39686i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRFE,3ZRFE..ZRE171,173..GCC,GEN,MA,PHL,VN201401-202201
(J)
sub11101-09520
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02166i1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201807-202201
(J)
main90910-T2014i1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201807-202201
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101WSENSOR, CRANK POSITION, NO.1
11114APIN, STRAIGHT
L=14,OD=6
L=36,OD=10
11115GASKET, CYLINDER HEAD
sub11115-21091
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
sub11115-37061
sub11115-37062
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
STD
main11122-31090i1ZRF,1ZRFAE,1ZRFE,2ZRFE,3ZRFE..ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH,VN201904-202201
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
main11123-31090i1ZRF,1ZRFAE,1ZRFE,2ZRFE,3ZRFE..ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH,VN201904-202201
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
main11126-31040i1ZRF,1ZRFAE,1ZRFE,2ZRFE,3ZRFE..ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH,VN201904-202201
STD
main11127-31040i1ZRF,1ZRFAE,1ZRFE,2ZRFE,3ZRFE..ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH,VN201904-202201
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
L=10,OD=8
L=12.5,OD=8
main90253-13005i1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201810-202201
L=12.5,OD=8,(J)
main90253-T0014i1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201810-202201
L=12.5,OD=8,(L)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2:REFER ILLUST.
NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1
NO.1:REFER ILLUST.
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(J)
11212COVER, CYLINDER HEAD, NO.2
(L)
(J)
main11212-37010i1ZRFE,2ZRFE,3ZRFE..ZRE17#..(HTWC,HTWCF)..(GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH)201310-201408
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
12180ECAP ASSY, OIL FILLER
12281AHANGER, ENGINE, NO.1
main12281-0T050i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN201606-202201
W(PAINTED)
NO.1
NO.2
W/O(PAINTED)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12282DHANGER, ENGINE, NO.2
main12282-0T050i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN201606-202201
W(PAINTED)
W/O(PAINTED)
NO PAINTED
PAINTED=WHITE
12611COVER, ENGINE, NO.1
12631ABRACKET, ENGINE COVER
12632BRACKET, ENGINE COVER, NO.2
1603
2501
9010906385
main90109-06385
9012606029
main90126-06029
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180816
main91671-80816
9167281025
main91672-81025
9415180600
main94151-80600
34 parts on this diagram · 7 diagrams in section
