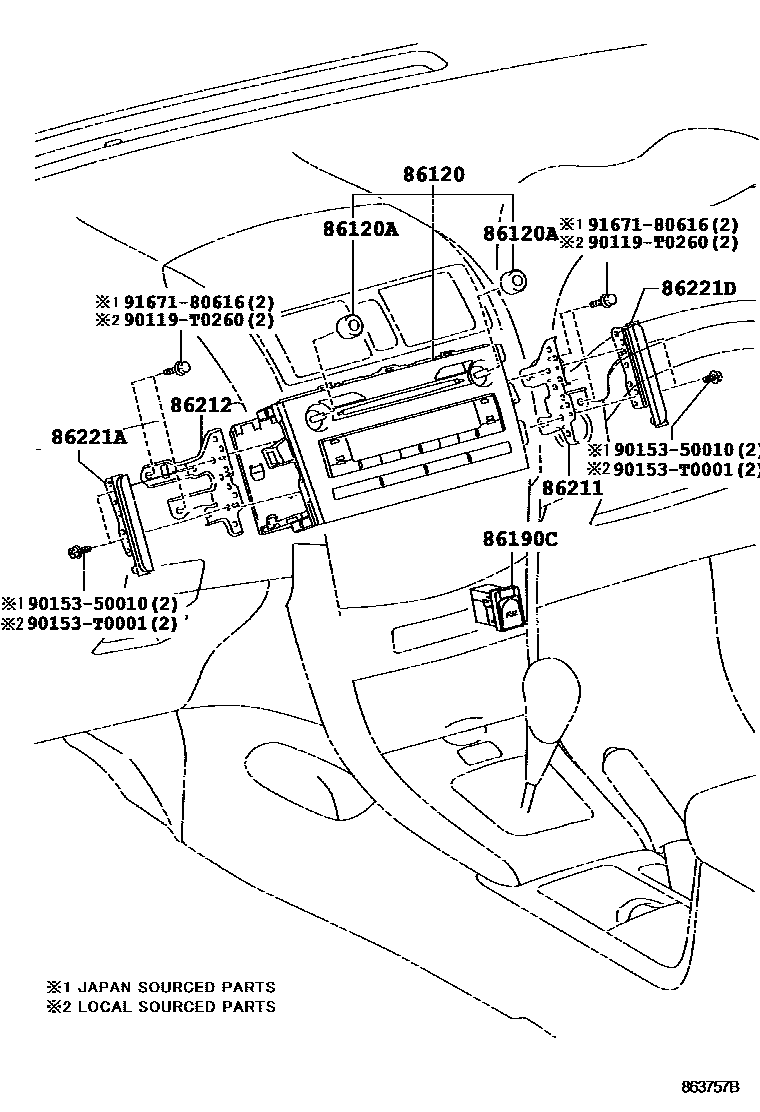

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02530supersedes 86120-02530iZZE141..16E..TH200801-200812

MATSUSHITA,ID=52833,GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)

main86120-02540iZZE141..(16E,16G)..PHL200802-201008

MATSUSHITA,ID=52832

main86120-02550supersedes 86120-02550iZRE143,ZZE142..(18E,20E)..TAIW200811-201007

PANASONIC,ID=52834

main86120-02810supersedes 86120-02810iZZE142..18G..TH;ZZE142..(18E,18V)..(IDN,TH)200801-200812

PIONEER,ID=P2836,SINGAPORE SPEC

main86120-02820iZRE143,ZZE142..VN200802-201010

PIONEER,ID=P2837

main86120-02830iZZE142..(18E,18G)..TAIW200712-200811

PANASONIC,ID=52835

main86120-02A00iZZE141..TAIW200712-200811

PANASONIC,ID=52836

main86120-02E00supersedes 86120-02E00iZRE143..20V..TH;ZRE142..18G..HTWCF201008-201311

PANASONIC,ID=52878

main86120-02E10iZRE141..(16E,16G)..PHL201008-201311

PANASONIC,ID=52876

main86120-02E20iZRE142,143..(18E,20G,G)..TAIW201007-201310

PANASONIC,ID=52874

sub86120-02E21

main86120-02E30iZRE141,142..GCC201007-201310

PANASONIC,ID=52875,AUDIO-AM/FM CD 6SPEAKER

sub86120-02E31

main86120-02F00iZRE141,143..(16V,20V)..PHL201008-201311

PIONEER,ID=P28A4

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25150×2supersedes 90011-25150iZRE143,ZZE142..VN200801-201010

main90011-25182×2iZRE143..20V..TH;ZRE142..18G..HTWCF201008-201311

AUDIO-RADIO LESS 6SPEAKER

main90010-24123×2iZRE141,142..GCC201007-201310

INSTRUMENT PANEL CENTER CLUSTER-SILVER&AUDIO-AM/FM CD-CHANGER 6SPEAKER

main90010-24124×2iZZE14#..GCC200901-201007

AUDIO-AM/FM CD-CHANGER 6SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-52040iZRE142..TH201007-201211

86211BRACKET, RADIO, NO.1

main86211-02210iNDE140,ZZE142..IND200801-201105

main86211-02220iCE140,NZE140,ZRE141..PKN201104

main86211-02230iZZE14#..(16J,18G,18V)..TAIW200712-200811

86212BRACKET, RADIO, NO.2

main86212-02210iZRE143,ZZE142..VN200801-201010

main86212-02220iCE140,NZE140,ZRE141..PKN201104

main86212-02230iZRE14#..GCC,TAIW201007-201310

86221APANEL, RADIO RECEIVER

main86221-02010iCE140,NZE140,ZRE141..PKN201104

86221DPANEL, RADIO RECEIVER

main86221-02020iCE140,NZE140,ZRE141..PKN201104

90119T0260

main90119-T0260

9015350010

main90153-50010

90153T0001

main90153-T0001

9167180616

main91671-80616

11 parts on this diagram · 3 diagrams in section
