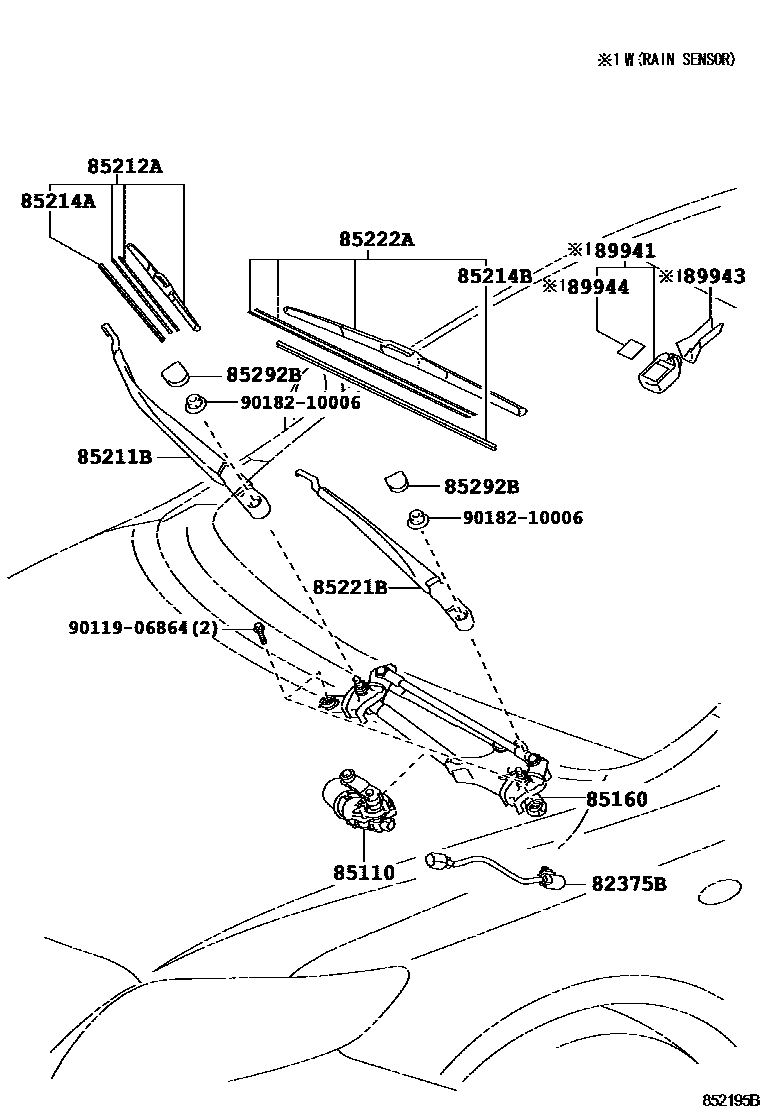

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-12310iZZE14#..(16J,18G,18V)..TAIW200712-200811

main82375-12311iNDE140,ZZE142..IND200907-201105

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02290iZZE142..PKN200801

main85110-02300iZRE143,ZZE141..PHL200712-201008

main85110-02310iNDE140,ZZE142..IND200808-201105

85160LINK ASSY, WINDSHIELD WIPER

main85150-02250iZZE142..PKN200801

main85150-02260iZRE143,ZZE141..PHL200712-201008

main85150-02270iNDE140,ZRE142..IND201105-201312

85211BARM, FRONT WIPER, RH

main85211-02270iZZE142..PKN200801

main85211-02280iZZE14#..(16J,18G,18V)..TAIW200712-200811

85212ABLADE, FR WIPER, RH

main85212-12430iZZE14#..(16J,18G,18V)..TAIW200712-200811

main85212-12480iZRE141,142..ATM..(16J,18G)..TH201008-201211

85214ARUBBER, WIPER, RH

main85214-68020iCE140,NZE140200801-201104

sub85214-52110

main85214-68030iZRE143,ZZE142..VN200712-201010

85214BRUBBER, WIPER, LH

main85214-68020iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

sub85214-52110

main85214-68030iZRE141,142..ATM..(16J,18G)..TH201008-201211

85221BARM, FRONT WIPER, LH

main85221-02280iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,201008

main85221-02290iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201008

main85221-02320iZRE14#..GCC,TAIW201007-201310

85222ABLADE, FR WIPER, LH

main85222-12830iZZE14#..(16J,18G,18V)..TAIW200712-200811

main85222-12860iCE140,NZE140200801-201104

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,18E,18J,20G,20V,LIMO)..(IDN,MA,TH)..HTWC201106-201311

main85292-0D050×2iZRE14#..GCC,TAIW201108-201310

main85292-13010×2iZRE143..LHD..CVFC..20V;CE140,NDE140,NZE140,ZRE141,142..IND,PHL,PKN,VN201007

89941SENSOR, RAIN

main89941-42010supersedes 89941-42010iZZE142..18V..TAIW200712-200811

89943COVER, RAIN SENSOR

main89943-42010supersedes 89943-42010iZZE142..18V..TAIW200712-200811

89944TAPE, RAIN SENSOR

main89944-42010supersedes 89944-42010iZZE142..18V..TAIW200712-200811

9011906864

main90119-06864

9018210006

main90182-10006

15 parts on this diagram · 2 diagrams in section
