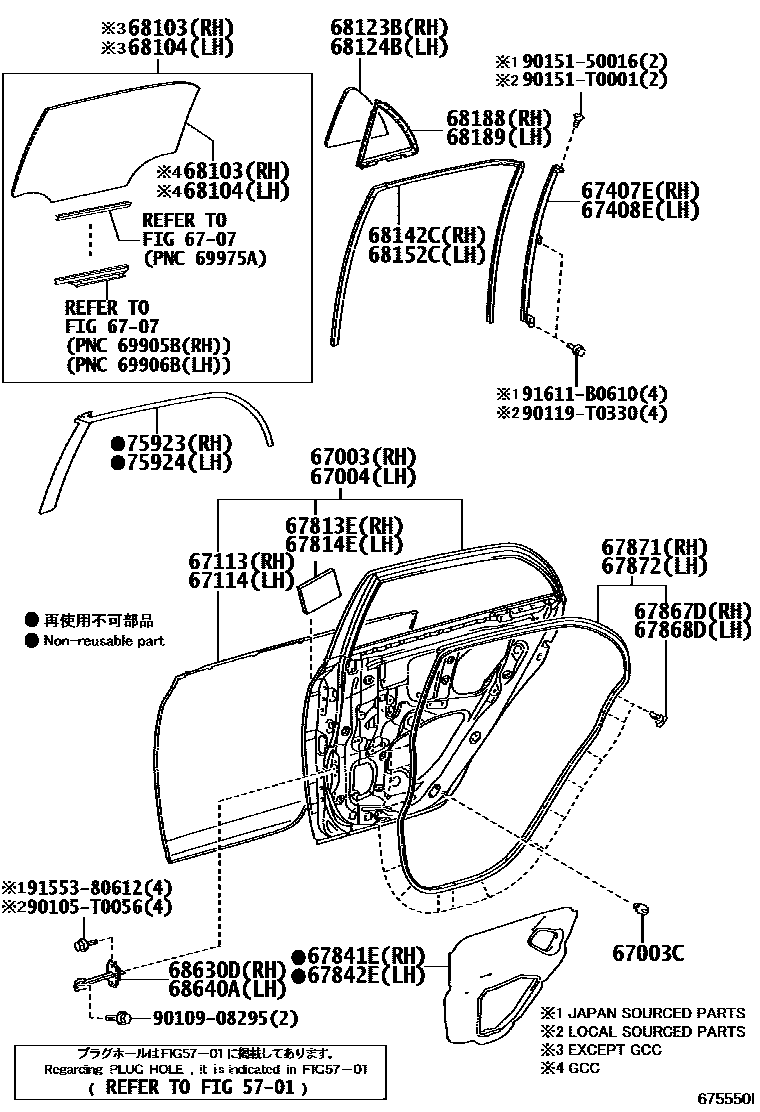

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02340supersedes 67003-02350iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main67003-02350iZZE141..LIMO200808-200912

main67003-02470iCE140,NZE140,ZRE141..20DSA,D,GLI,N201209

main67003-02480iCE140,NZE140..20D,XLI201209

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iCE140,NDE140,NZE140,ZRE14#,ZZE141201308

BLACK X NATURAL

main90541-09143×2iZRE143,ZZE142..VN200809-201010

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02340supersedes 67004-02350iZRE141,142..ATM..(16J,18G)..TH201007-201211

main67004-02350iCE140,NZE140..20D,XLI201007-201209

main67004-02470iCE140,NZE140,ZRE141..20DSA,D,GLI,N201209

main67004-02480iCE140,NZE140..20D,XLI201209

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-02160iCE140,NZE140200712-201104

67114PANEL, REAR DOOR, OUTER LH

main67114-02160iZZE142..PKN200712

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-02070iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main67407-02090iZZE14#..(16J,18G,18V)..TAIW200712-200811

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-02070iZRE141,142..ATM..(16J,18G)..TH201008-201211

main67408-02090iZZE14#..(16J,18G,18V)..TAIW200712-200811

67813ESHEET, QUARTER PANEL SILENCER, RH

main67817-47010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

67814ESHEET, QUARTER PANEL SILENCER, LH

main67817-47010iZZE14#..(16J,18G,18V)..TAIW200712-200811

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02200iZZE141..(16G,LIMO)..TH;ZRE141,142..IDN,MA,PHL,TH,VN;ZRE143..CVFC..(IDN,MA,PHL,TH,VN)201007-201108

main67841-02250iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA,VN);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH,VN)..HTWC201108

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02180iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main67842-02230iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA,VN);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH,VN)..HTWC201108

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×15iZRE141,142..ATM..(16J,18G)..TH201007-201211

main67868-02020×15iZZE14#..(16J,18G,18V)..TAIW200712-200811

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×15iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

main67868-02020×15iZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,LIMO)..(IDN,IND,MA,PHL,PKN,TH,VN);CE140,NZE140,ZRE143,ZZE141..(16E,20D,20DSA,20E,20G200712-200901

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02190iNDE140,ZZE142..IND200712-201105

main67871-02300iZRE14#..GCC,TAIW201305-201310

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02190iZZE14#..(16J,18G,18V)..TAIW200712-200811

main67872-02300iZRE14#..GCC,TAIW201305-201310

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02160iZZE14#..IDN,MA,PHL,TH200801-200804

*TEM,T=3.5,GREEN

main68103-02161iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200805-200812

*TEM,T=3.5,GREEN

sub68103-02162

main68103-02280iZRE142,143..TAIW201007-201310

*TEM,T=3.5,GREEN

main68103-02290iNDE140,ZZE142..IND200808-201105

*TEM,T=3.5,GREEN

main68113-02310iZZE14#..GCC200901-201007

*UVCT,T=3.5,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02260iZZE14#..IDN,MA,PHL,TH200801-200804

*TEM,T=3.5,GREEN

main68104-02261iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200805-200812

*TEM,T=3.5,GREEN

sub68104-02262

main68104-02280iZRE143,ZZE14#..TAIW200712-201007

*TEM,T=3.5,GREEN

main68104-02290iNDE140,ZRE142..IND201105-201312

*TEM,T=3.5,GREEN

main68114-02310iZRE141,142..GCC201007-201310

*UVCT,T=3.5,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02230iZZE14#..IDN,MA,PHL,TH200801-200804

*TEM,T=3.5 GREEN

main68123-02231iZRE141,142..ATM..(16J,18G)..TH201008-201211

*TEM,T=3.5 GREEN

sub68123-02232

main68123-02240iZZE14#..(16J,18G,18V)..TAIW200712-200811

*TEM,T=3.5 GREEN

main68123-02250iNDE140,ZRE142..IND201105-201312

*TEM,T=3.5 GREEN

main68123-02270iZZE14#..GCC200901-201007

*UVCT,T=3.5,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02230iZZE14#..IDN,MA,PHL,TH200801-200804

*TEM,T=3.5 GREEN

main68124-02231iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200805-200812

*TEM,T=3.5 GREEN

sub68124-02232

main68124-02240iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

*TEM,T=3.5 GREEN

main68124-02250iNDE140,ZRE142..IND201105-201312

*TEM,T=3.5 GREEN

main68124-02270iZZE14#..GCC200901-201007

*UVCT,T=3.5,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02210iZZE142..PKN200712

main68142-02240iZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(201007-201311

main68142-12290iNDE140,ZRE142,143..IND,VN201010

68152CRUN, REAR DOOR GLASS, LH

main68152-02210iCE140,NZE140,ZRE141..PKN201104

main68152-02240iZZE142..TAIW200811-201007

main68152-12200iZRE143,ZZE142..VN200808-201010

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02130iZRE143,ZZE142..VN200712-201010

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02130iZZE14#..(16J,18G,18V)..TAIW200712-200811

68630DCHECK ASSY, REAR DOOR, RH

main68630-02180iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,20D,20DSA,D,GLI201008-201212

main68630-02181iCE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN201212

main68630-02190iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main68630-02191iZRE14#..GCC,TAIW201111-201310

main68630-02200iNDE140,ZRE142..IND201105-201207

main68630-02201iNDE140,ZRE142..IND201207-201312

68640ACHECK ASSY, REAR DOOR, LH

main68630-02180iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main68630-02181iCE140,NZE140,ZRE14#,ZZE141..IDN,MA,PHL,PKN,TH,VN201212

main68630-02190iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main68630-02191iZRE14#..GCC,TAIW201111-201310

main68630-02200iNDE140,ZRE142..IND201105-201207

main68630-02201iNDE140,ZRE142..IND201207-201312

75923TAPE, BLACK OUT, NO.2 RH

main75923-02180supersedes 75923-02180iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

75924TAPE, BLACK OUT, NO.2 LH

main75924-02180supersedes 75924-02180iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

90105T0056

main90105-T0056

9010908295

main90109-08295

90119T0330

main90119-T0330

9015150016

main90151-50016

90151T0001

main90151-T0001

9155380612

main91553-80612

91611B0610

main91611-B0610

36 parts on this diagram · 3 diagrams in section
