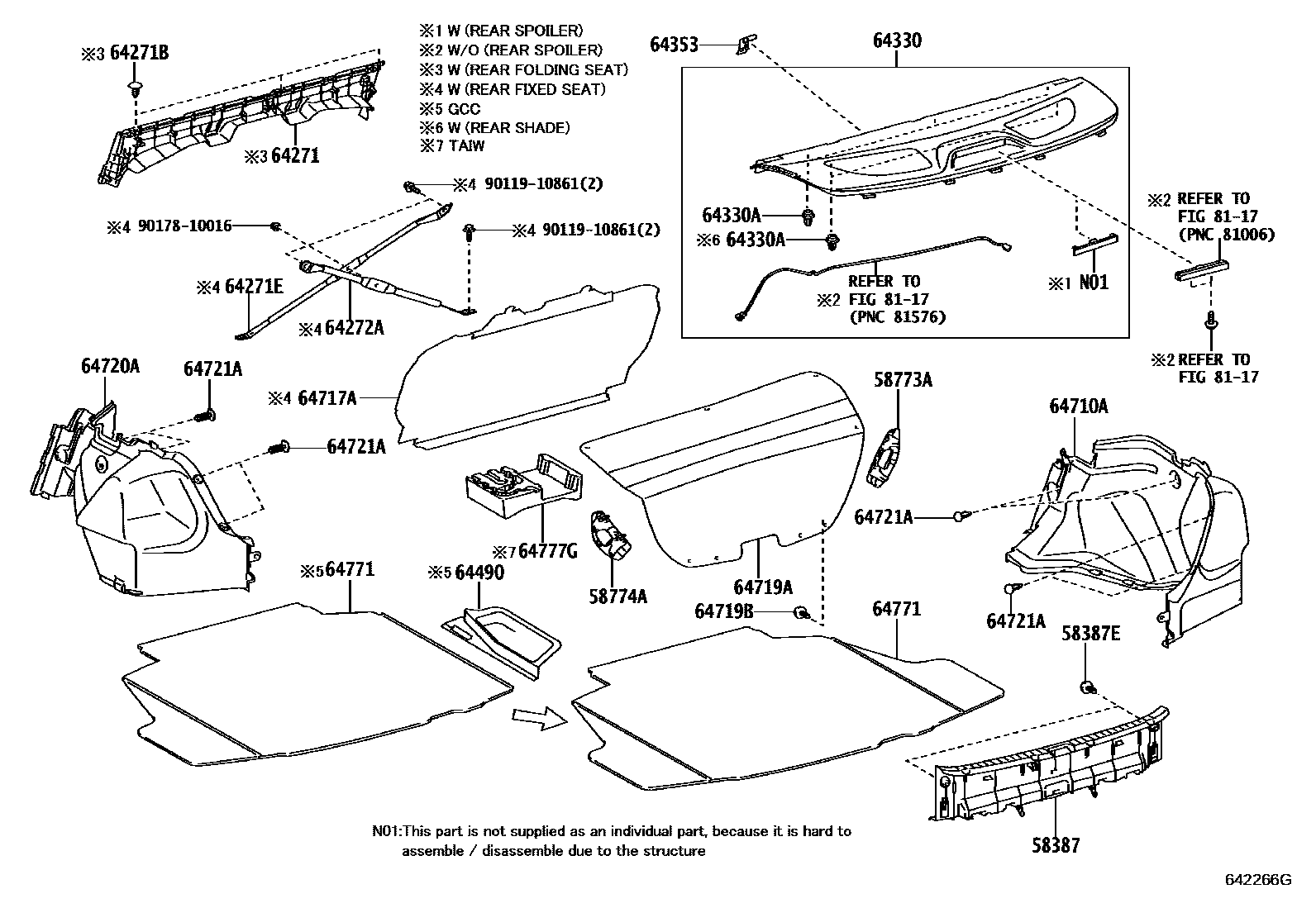

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02110iNDE140,ZRE142..IND201105-201312

main58387-02120iCE140,NZE140,ZRE141..PKN201104

main58387-02130iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main58387-02140iZRE14#..GCC,TAIW201007-201310

main58387-02180iZRE143,ZZE14#..GCC,TAIW200811-201007

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

BLACK

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02110iNDE140,ZZE142..IND200808-201105

main58773-02120iCE140,NZE140,ZRE141..PKN201104

main58773-02130iZRE141..6F..TH;ZRE142..(18E,18EL)..HTWCF;ZRE142,143..(6F,CVFC)..VN;ZRE141,142,ZZE141..(16E,16G,18J,LIMO)..(IDN,MA,PHL,TH)201008

main58773-02140iZZE14#..(16J,18G,18V)..TAIW200712-200811

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02100iNDE140,ZRE142..IND201105-201312

main58774-02110iCE140,NZE140200808-201104

main58774-02120iZRE142..18G..HTWCF;ZRE142..18G..(IDN,MA);ZRE14#..(16V,18E,20G,20V)..(IDN,MA,PHL,TH)..HTWC201008-201310

main58774-02130iZRE14#..GCC,TAIW201007-201310

64271BOARD, ROOM PARTITION, NO.1

main64271-02130iNDE140,ZRE142..(18G,18V,E,G)..IND201105-201312

main64271-02140supersedes 64271-02140iZRE142..18G..TH201008-201211

SINGAPORE SPEC

main64271-02150iZZE142..(18G,18V)..TAIW200712-200811

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3supersedes 90467-08186-C0iZZE142..(18G,18V)..TAIW200712-200811

BLACK

64271EPANEL, ROOM PARTITION

main64241-02050supersedes 64241-02050iCE140,NZE140,ZRE141..PKN201104

main64241-02070iZRE141..6F..(16E,16J);ZRE142..(18E,18EL)..HTWCF;ZRE141,142,ZZE141..(16E,16G,18J,LIMO)..(IND,MA,TH)201008-201312

main64241-02130iZRE142..XLI201203-201310

(L)

main64241-12050supersedes 64241-12050iZRE142..XLI201007-201203

REAR SEAT-6:4 FOLDING TYPE

64272APANEL, ROOM PARTITION, LH

main64242-02050supersedes 64242-02050iZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,18J,LIMO)..(IND,TH)200801-200912

SINGAPORE SPEC

main64242-02070iZRE141,142..ATM..(16J,18E)..TH201008-201211

SINGAPORE SPEC

main64242-02130iZRE142..XLI201203-201310

(L)

main64242-12050supersedes 64242-12050iZRE142..XLI201007-201203

REAR SEAT-6:4 FOLDING TYPE

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02660-B0iCE140,NZE140..20D,XLI201104-201406

DK.GRAY,TRIM4#

main64330-02660-E0iCE140,NZE140..20D,XLI200808-201104

ASH BROWN,TRIM4#

main64330-02740-B0iZRE141..16G..PHL;ZRE141..(16E,16J)..(PHL,TH)201008-201310

DK.GRAY,TRIM1#

main64330-02740-E0iZZE141..16E..TH200801-200812

ASH BROWN,TRIM4#

main64330-02750-B0iZRE141,143..(16V,20V)..(IDN,PHL)201008-201311

DK.GRAY,TRIM4#

main64330-02750-E0iZZE142..18G..TH;ZZE142..(18E,18V)..(IDN,PHL,TH)200801-200812

ASH BROWN,TRIM4#

main64330-02760-B0iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main64330-02760-E0iZZE142..(18G,18V)..TAIW200712-200811

ASH BROWN,TRIM4#

main64330-02770-B0iNDE140;ZRE142..(18G,18J,E)..IND201105-201312

DK.GRAY,TRIM4#

main64330-02770-E0iZZE142..(18J,G)..IND;NDE140,ZZE142..(4FC,6F)..(18G,E,G)..IND200808-201105

ASH BROWN,TRIM4#

main64330-02780-B0iZRE142..18V,G201105-201312

DK.GRAY,TRIM4#

main64330-02780-E0iZZE142..18V..IND;ZZE142..5F..18G..IND200808-201105

ASH BROWN,TRIM4#

main64330-02790-B0iCE140,NZE140,ZRE141..20DSA,D,GLI,N201104-201406

DK.GRAY,TRIM4#

main64330-02790-E0iCE140,NZE140..20DSA,GLI200808-201104

ASH BROWN,TRIM4#

main64330-02820-B0iZZE141..LIMO201008-201311

DK.GRAY,TRIM1#

main64330-02840-B0iZRE143..20V..TH201008-201311

DK.GRAY,TRIM1#,4#

main64330-02840-E0iZRE143..20V..TH200905-201008

ASH BROWN,TRIM4#

main64330-02600-B1iZRE143..G201007-201310

GRADE MARK : 2.0Z,DK.GRAY,TRIM1#

main64330-02850-B0supersedes 64330-02A00-B0iZZE14#..GCC200901-201007

REAR SPOILER-DECK&REAR SEAT BELT-ELR/ALR X3,MD.GRAY,TRIM1#

main64330-02850-B1iZRE142..GCC201007-201310

REAR SPOILER-DECK&REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64330-02850-E0supersedes 64330-02A00-E0iZZE14#..GCC200901-201007

REAR SPOILER-DECK&REAR SEAT BELT-ELR/ALR X3,ASH BROWN,TRIM4#

main64330-02860-B0supersedes 64330-02A00-B0iZZE14#..GCC200901-201007

REAR SPOILER-DECK,MD.GRAY,TRIM1#

main64330-02860-B1iZRE142..GCC201007-201310

HIGH MOUNT STOP LAMP-WITH(LED TYPE SPOILER),DK.GRAY,TRIM1#,4#

main64330-02860-E0supersedes 64330-02A00-E0iZZE14#..GCC200901-201007

REAR SPOILER-DECK,ASH BROWN,TRIM4#

main64330-02890-B0supersedes 64330-02A00-B0iZZE14#..GCC200901-201007

REAR SEAT BELT-ELR/ALR X3,MD.GRAY,TRIM1#

main64330-02890-B1supersedes 64330-02A00-B1iZRE141,142..GCC201007-201310

REAR SEAT BELT-3POINT TYPE X3,DK.GRAY,TRIM1#,4#

main64330-02890-E0supersedes 64330-02A00-E0iZZE14#..GCC200901-201007

REAR SEAT BELT-ELR/ALR X3,ASH BROWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main90467-T0021×5iZZE141..16E..TH200801-200812

SINGAPORE SPEC

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02040-B0iZRE142,143..MA;ZRE142..18E..TH..HTWC;ZRE142..(18E,18G)..HTWCF201008-201310

DK.GRAY,TRIM1#,4#

main64353-02040-E0iZRE143,ZZE142..VN200801-201010

ASH BROWN,TRIM4#

main64353-02050-B0iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main64353-02050-E0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

ASH BROWN,TRIM4#

main64353-02050-B1iZZE14#..GCC200901-201007

REAR SEAT BELT-ELR/ALR X3,MD.GRAY,TRIM1#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-02070iZRE141,142..GCC201007-201310

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02150-C0iZRE142..IND201105-201312

BLACK,TRIM4#

main64710-02160-C0iCE140,NZE140200808-201104

BLACK,TRIM4#

main64710-02170-C0iZZE141..16J..TH;ZZE141..(16E,16G)..PHL200801-201008

BLACK,TRIM1#

main64710-02180-C0iZRE142,143..(18E,20G,G)..TAIW201007-201310

BLACK,TRIM1#

main64710-02181-C0iZRE143,ZZE142..TAIW200811-201007

BLACK,TRIM1#,4#

main64710-02200-C0iZZE14#..GCC200901-201007

BLACK,TRIM1#,4#

main64710-02230-C0iZRE141,142..GCC201007-201310

BLACK,TRIM1#,4#

main64710-02240-C0iNDE140201006-201105

BLACK,TRIM4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02110iNDE140..E201105-201312

GRADE MARK : J

main64717-02120iZZE142..PKN200808

main64717-02130iZZE141..16E..TH200801-200812

main64717-02140iZRE141,142..ATM..(18J,XLI)201007-201310

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02110-C0supersedes 64719-02110-C0iZZE142..PHL200801-200812

BLACK,TRIM4#

main64719-02120-C0iZZE142..(18G,18V)..TAIW200712-200811

BLACK,TRIM1#,4#

main64719-02160-C0iNDE140,ZRE142..IND201105-201312

BLACK,TRIM4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×9supersedes 90467-08186-C0iNDE140,ZZE142..IND200712-201105

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02150-C0iNDE140,ZRE142..IND201105-201312

BLACK,TRIM4#

main64720-02160-C0iCE140,NZE140,ZRE141..PKN201104-201406

BLACK,TRIM4#

main64720-02170-C0iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

BLACK,TRIM1#

main64720-02180-C0iZZE14#..TAIW200712-200810

BLACK,TRIM1#,4#

main64720-02200-C0iZRE143,ZZE14#..GCC,TAIW200811-201007

BLACK,TRIM1#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C0×8iZZE142..PKN200712

BLACK

64771COVER, SPARE WHEEL

main64771-02191-C0iZZE141..16J..TH;ZZE141..(16E,16G)..PHL200801-201008

BLACK,TRIM1#

main64771-02200-C0iZZE14#..TAIW200712-200810

BLACK,TRIM1#,4#

main64771-02201-C0iZRE143,ZZE142..TAIW200811-201007

BLACK,TRIM1#,4#

main64771-02230-C0iZRE142..IND201105-201312

BLACK,TRIM4#

main64771-02240-C0iCE140,NZE140,ZRE141..PKN201104-201406

BLACK,TRIM4#

main64771-02250-C0iZRE141,142..GCC201007-201310

BLACK,TRIM1#,4#

main64771-02320-C0iNDE140201105-201110

BLACK,TRIM4#

64777GCUSHION, SPARE WHEEL

main64777-02150iZZE14#..(16J,18G,18V)..TAIW200712-200811

8117

9011910861

main90119-10861

9017810016

main90178-10016

23 parts on this diagram · 1 diagram in section
