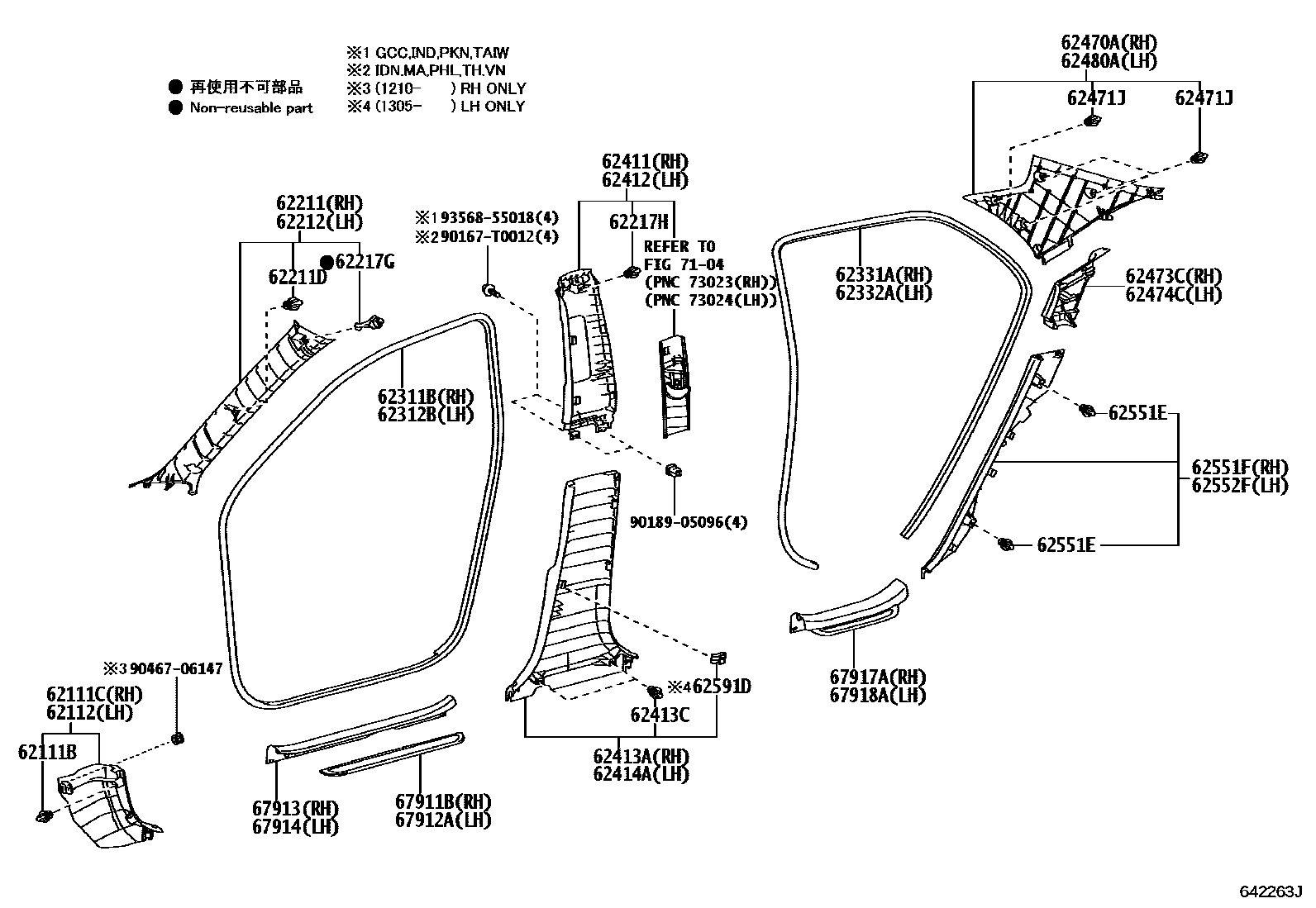

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iZRE14#..GCC,TAIW200712-201310

main90467-T0021iZRE143,ZZE142..VN200801-201310

62111CBOARD, COWL SIDE TRIM, RH

main62111-02190-B0iZZE142..PHL200801-201209

GRAY,TRIM1#

sub62111-02191

main62111-02190-B1iZRE142,143..MA,TH201008-201209

DK.GRAY,TRIM1#

sub62111-02191

main62111-02190-E0iZRE143,ZZE142..VN200801-201209

GREGE,TRIM4#

sub62111-02191

main62111-02191iZRE141,142..ATM..(16J,18G)..TH201210-201211

main62111-02191-B0iZRE141..4FC..16G..PHL;ZRE141,ZZE141..MTM..(PHL,TH)201210-201310

GRAY,TRIM1#

sub62111-02191

main62111-02191-B1iZRE142..MA;ZRE143..MA,TH;ZRE142..(18E,18G)..HTWCF201210-201310

DK.GRAY,TRIM1#

sub62111-02191

main62111-02191-E0iZRE142,143..VN201210-201407

GREGE,TRIM4#

sub62111-02191

main62111-02200-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

GRAY,TRIM11

main62111-02200-B0iZZE142..(18G,18V)..TAIW200712-201310

GRAY,TRIM1#

main62111-02200-B1iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM12

main62111-02200-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62111-02200-E0iZZE14#..(16J,18G,18V)..TAIW200712-201310

GREGE,TRIM4#

main62111-02210-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main62111-02220-E0iCE140,NZE140200808-201406

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-02190-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200801-201310

GRAY,TRIM1#

sub62112-02190

main62112-02190-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

DK.GRAY,TRIM1#

sub62112-02190

main62112-02190-E0iZRE143..CVFC..VN;ZRE142..18G..(TH,VN)..HTWC200801-201407

GREGE,TRIM4#

sub62112-02190

main62112-02200-B0iZZE141..TAIW200712-201007

GRAY,TRIM11

main62112-02200-B0iZZE142..(18G,18V)..TAIW200712-201310

GRAY,TRIM1#

main62112-02200-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62112-02200-B1iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM12

main62112-02200-E0iZZE14#..(16J,18G,18V)..TAIW200712-201310

GREGE,TRIM4#

main62112-02210-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main62112-02220-E0iCE140,NZE140200808-201406

GREGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-02310-B0iZZE142..PHL200801-201310

LT.GRAY,TRIM1#

sub62211-02310

main62211-02310-E0iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201407

GREGE,TRIM4#

sub62211-02310

main62211-02320-B0iZZE14#..TAIW200712-200802

LT.GRAY,TRIM1#

sub62211-02321

main62211-02320-E0iZZE14#..TAIW200712-200802

GREGE,TRIM4#

sub62211-02321

main62211-02321-B0iZRE142,143..TAIW200803-201310

LT.GRAY,TRIM1#

main62211-02321-E0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200803-201310

GREGE,TRIM4#

main62211-02330-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main62211-02340-E0iZZE142..PKN200808-201406

GREGE,TRIM4#

main62211-02360-B0iZZE14#..GCC200901-201310

LT.GRAY,TRIM1#

main62211-02360-E0iZZE14#..GCC200901-201310

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iZRE14#..GCC,TAIW200712-201310

main90467-T0021iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201310

62212GARNISH, FRONT PILLAR, LH

main62212-02310-B0iZRE141..16G..PHL;ZRE141..(16E,16J)..(PHL,TH);ZRE142,143,ZZE141..(18E,18G,20G,20V,LIMO)..(MA,TH)200801-201310

LT.GRAY,TRIM1#

sub62212-02310

main62212-02310-E0iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201407

GREGE,TRIM4#

sub62212-02310

main62212-02320-B0iZZE14#..TAIW200712-200802

LT.GRAY,TRIM1#

sub62212-02321

main62212-02320-E0iZZE14#..TAIW200712-200802

GREGE,TRIM4#

sub62212-02321

main62212-02321-B0iZRE142,143..TAIW200803-201310

LT.GRAY,TRIM1#

main62212-02321-E0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200803-201310

GREGE,TRIM4#

main62212-02330-E0iNDE140,ZRE142..IND200808-201312

GREGE,TRIM4#

main62212-02340-E0iCE140,NZE140200808-201406

GREGE,TRIM4#

main62212-02360-B0iZRE141,142..GCC200901-201310

LT.GRAY,TRIM1#

main62212-02360-E0iZZE14#..GCC200901-201310

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52010iZZE14#..(16J,18G,18V)..TAIW200712-201310

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201310

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02080-B0iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62311-02080-B0iZRE143,ZZE142..TAIW200811-201007

DK.GRAY,TRIM12

main62311-02080-B1iZRE143,ZZE142..TAIW200811-201007

GRAY,TRIM11

main62311-02080-B1iZZE14#..GCC200901-201310

GRAY,TRIM1#

main62311-02080-E0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200811-201310

GREGE,TRIM4#

main62311-02180-B0iZZE142..18E..TAIW200712-201311

GRAY,TRIM1#

main62311-02180-B0iZZE142..18E..TAIW200712-200811

GRAY,TRIM11

main62311-02180-B1iZZE142..18E..TAIW200712-200811

DK.GRAY,TRIM12

main62311-02180-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main62311-02180-E0iNDE140,ZZE142..IND200712-201407

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02080-B0iZRE143,ZZE142..TAIW200811-201007

DK.GRAY,TRIM12

main62312-02080-B0iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62312-02080-B1iZRE143,ZZE142..TAIW200811-201007

GRAY,TRIM11

main62312-02080-B1iZZE14#..GCC200901-201310

GRAY,TRIM1#

main62312-02080-E0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200811-201310

GREGE,TRIM4#

main62312-02180-B0iZZE14#..(16J,18G,18J,18V)..TAIW200712-201311

GRAY,TRIM1#

main62312-02180-B0iZZE142..18E..TAIW200712-200811

GRAY,TRIM11

main62312-02180-B1iZZE142..18E..TAIW200712-200811

DK.GRAY,TRIM12

main62312-02180-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main62312-02180-E0iNDE140,ZZE142..IND200712-201407

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02130-B0iZRE143,ZZE142..TAIW200811-201007

DK.GRAY,TRIM12

main62331-02130-B0iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62331-02130-B1iZZE14#..GCC200901-201310

GRAY,TRIM1#

main62331-02130-B1iZRE143,ZZE142..TAIW200811-201007

GRAY,TRIM11

main62331-02130-E0iZRE143,ZZE14#..GCC,TAIW200811-201310

GREGE,TRIM4#

main62331-02220-B0iZZE14#..(16J,18G,18J,18V)..TAIW200712-200811

GRAY,TRIM11

main62331-02220-B0iZZE142..PHL200712-201311

GRAY,TRIM1#

main62331-02220-B1iZZE142..18E..TAIW200712-200811

DK.GRAY,TRIM12

main62331-02220-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main62331-02220-E0iNDE140,ZZE142..IND200712-201407

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02130-B0iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62332-02130-B0iZRE143,ZZE142..TAIW200811-201007

DK.GRAY,TRIM12

main62332-02130-B1iZRE143,ZZE142..TAIW200811-201007

GRAY,TRIM11

main62332-02130-B1iZZE14#..GCC200901-201310

GRAY,TRIM1#

main62332-02130-E0iZRE143,ZZE14#..GCC,TAIW200811-201310

GREGE,TRIM4#

main62332-02220-B0iZZE14#..(16J,18G,18J,18V)..TAIW200712-201311

GRAY,TRIM1#

main62332-02220-B0iZZE14#..(16J,18G,18J,18V)..TAIW200712-200811

GRAY,TRIM11

main62332-02220-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main62332-02220-B1iZZE142..18E..TAIW200712-200811

DK.GRAY,TRIM12

main62332-02220-E0iNDE140,ZZE142..IND200712-201407

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-02160-B1iZRE141..16G..PHL;ZRE141..(16E,16J)..(PHL,TH);ZRE142,143,ZZE141..(18E,18G,20G,20V,LIMO)..(MA,TH)200801-201310

LT.GRAY,TRIM1#

sub62410-02160

main62410-02160-E1iZRE142..HTWCF;ZRE141..RHD..(16E,16G);ZRE141,142..(16V,18G)..(IDN,MA,PHL);ZRE142,143,ZZE141..(16G,18E,18J,20G,20V)..(IDN,MA,PHL,TH)..HTWC200801-201407

GREGE,TRIM4#

sub62410-02160

main62410-02170-B1iZRE14#..GCC,TAIW200712-201310

LT.GRAY,TRIM1#

main62410-02170-E1iZRE14#..LHD..(18E,20G,G,GLI,XLI)200712-201310

GREGE,TRIM4#

main62410-02180-E1iNDE140,ZRE142..IND200808-201312

GREGE,TRIM4#

main62410-02190-E1iCE140,NZE140,ZRE141..PKN200808-201406

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-02150-B1iZRE141..16G..PHL;ZRE141..(16E,16J)..(PHL,TH);ZRE142,143,ZZE141..(18E,18G,20G,20V,LIMO)..(MA,TH)200801-201310

LT.GRAY,TRIM1#

sub62420-02150

main62420-02150-E1iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201407

GREGE,TRIM4#

sub62420-02150

main62420-02160-B1iZRE14#..GCC,TAIW200712-201310

LT.GRAY,TRIM1#

main62420-02160-E1iZZE14#..(16J,18G,18V)..TAIW200712-201310

GREGE,TRIM4#

main62420-02170-E1iNDE140,ZRE142..IND200808-201312

GREGE,TRIM4#

main62420-02180-E1iZZE142..PKN200808-201406

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02160-B0iZZE142..PHL200801-201310

GRAY,TRIM1#

sub62413-02160

main62413-02160-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

DK.GRAY,TRIM1#

sub62413-02160

main62413-02160-E0iZRE143..CVFC..VN;ZRE142..18G..(TH,VN)..HTWC200801-201407

GREGE,TRIM4#

sub62413-02160

main62413-02170-B0iZRE141,142..ATM..(18J,GLI,XLI)200712-201310

GRAY,TRIM1#

main62413-02170-B0iZZE142..(18G,18V)..TAIW200712-201007

GRAY,TRIM11

main62413-02170-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62413-02170-B1iZZE142..(18G,18V)..TAIW200712-201007

DK.GRAY,TRIM12

main62413-02170-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

GREGE,TRIM4#

main62413-02180-E0iNDE140,ZRE142..IND200808-201312

GREGE,TRIM4#

main62413-02190-E0iCE140,NZE140200808-201406

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main62217-13010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02160-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)200801-201310

GRAY,TRIM1#

sub62414-02160

main62414-02160-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

DK.GRAY,TRIM1#

sub62414-02160

main62414-02160-E0iZRE142..HTWCF;ZRE141..RHD..(16E,16G);ZRE141,142..(16V,18G)..(IDN,MA,PHL);ZRE142,143,ZZE141..(16G,18E,18J,20G,20V)..(IDN,MA,PHL,TH)..HTWC200801-201407

GREGE,TRIM4#

sub62414-02160

main62414-02170-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201310

GRAY,TRIM1#

main62414-02170-B0iZZE14#..GCC200712-201007

GRAY,TRIM11

main62414-02170-B1iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM12

main62414-02170-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62414-02170-E0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200712-201310

GREGE,TRIM4#

main62414-02180-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main62414-02190-E0iZZE142..PKN200808-201406

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02230-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200801-201310

LT.GRAY,TRIM1#

sub62470-02230

main62470-02230-E0iZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200801-201407

GREGE,TRIM4#

sub62470-02230

main62470-02240-B0iZZE14#..TAIW200712-200802

LT.GRAY,TRIM1#

sub62470-02241

main62470-02240-E0iZZE14#..TAIW200712-200802

GREGE,TRIM4#

sub62470-02241

main62470-02241-B0iZZE14#..(16J,18G,18V)..TAIW200803-201310

LT.GRAY,TRIM1#

main62470-02241-E0iZZE142..(18G,18V)..TAIW200803-201310

GREGE,TRIM4#

main62470-02250-E0iCE140,NZE140,ZRE141..PKN200808-201406

GREGE,TRIM4#

main62470-02270-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main90467-T0021iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201310

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-02050-B0iZRE14#..(16V,18G,18J,20V)..(IDN,PHL);ZRE141,142,ZZE141..RHD..(16E,16G,18EL)201008-201407

DK.GRAY,TRIM4#

main62473-02050-B0iZRE14#..(16V,18G,18J,20V)..(IDN,PHL);ZRE141,142,ZZE141..RHD..(16E,16G,18EL)201008-201310

DK.GRAY,TRIM1#,4#

main62473-02050-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)200801-201310

DK.GRAY,TRIM1#

main62473-02050-E0iZRE143,ZZE142..VN200801-201010

ASH BROWN,TRIM4#

main62473-02060-B0iZRE14#..LHD..(18E,20G,G,GLI,XLI)201007-201310

DK.GRAY,TRIM1#,4#

main62473-02060-B0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200712-201310

DK.GRAY,TRIM1#

main62473-02060-B1iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

main62473-02060-E0iZZE14#..(16J,18G,18V)..TAIW200712-201007

ASH BROWN,TRIM4#

main62473-02070-B0iNDE140,ZRE142..IND201105-201312

DK.GRAY,TRIM4#

main62473-02070-E0iNDE140,ZZE142..IND200808-201105

ASH BROWN,TRIM4#

main62473-02080-B0iCE140,NZE140,ZRE141..PKN201104-201406

DK.GRAY,TRIM4#

main62473-02080-E0iCE140,NZE140200808-201104

ASH BROWN,TRIM4#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-02050-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)201008-201407

DK.GRAY,TRIM4#

main62474-02050-B0iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

DK.GRAY,TRIM1#,4#

main62474-02050-B0iZRE14#..(16V,18G,18J,20V)..(IDN,PHL);ZRE141,142,ZZE141..RHD..(16E,16G,18EL)200801-201310

DK.GRAY,TRIM1#

main62474-02050-E0iZRE143,ZZE142..VN200801-201010

ASH BROWN,TRIM4#

main62474-02060-B0iZRE142..18J..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main62474-02060-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201310

DK.GRAY,TRIM1#

main62474-02060-B1iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

main62474-02060-E0iZZE14#..(16J,18G,18V)..TAIW200712-201007

ASH BROWN,TRIM4#

main62474-02070-B0iNDE140,ZRE142..IND201105-201312

DK.GRAY,TRIM4#

main62474-02070-E0iNDE140,ZZE142..IND200808-201105

ASH BROWN,TRIM4#

main62474-02080-B0iCE140,NZE140,ZRE141..PKN201104-201406

DK.GRAY,TRIM4#

main62474-02080-E0iZZE142..PKN200808-201104

ASH BROWN,TRIM4#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02230-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200801-201310

LT.GRAY,TRIM1#

sub62480-02230

main62480-02230-E0iZRE143,ZZE142..VN200801-201407

GREGE,TRIM4#

sub62480-02230

main62480-02240-B0iZZE14#..TAIW200712-200802

LT.GRAY,TRIM1#

sub62480-02241

main62480-02240-E0iZZE14#..TAIW200712-200802

GREGE,TRIM4#

sub62480-02241

main62480-02241-B0iZRE14#..GCC,TAIW200803-201310

LT.GRAY,TRIM1#

main62480-02241-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200803-201310

GREGE,TRIM4#

main62480-02250-E0iCE140,NZE140,ZRE141..PKN200808-201406

GREGE,TRIM4#

main62480-02270-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161iZZE14#..(16J,18G,18V)..TAIW200712-201310

NATURAL

main90467-10167iZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH);ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH).200712-201310

BLUE

main90467-T0021iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201310

NATURAL

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02200-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)200801-201310

GRAY,TRIM1#

sub62551-02200

main62551-02200-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

DK.GRAY,TRIM1#

sub62551-02200

main62551-02200-E0iZRE142..HTWCF;ZRE141..RHD..(16E,16G);ZRE141,142..(16V,18G)..(IDN,MA,PHL);ZRE142,143,ZZE141..(16G,18E,18J,20G,20V)..(IDN,MA,PHL,TH)..HTWC200801-201407

GREGE,TRIM4#

sub62551-02200

main62551-02210-B0iZZE14#..GCC200712-201007

GRAY,TRIM11

main62551-02210-B0iZZE142..(18G,18V)..TAIW200712-201310

GRAY,TRIM1#

main62551-02210-B1iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM12

main62551-02210-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62551-02210-E0iZZE14#..(16J,18G,18V)..TAIW200712-201310

GREGE,TRIM4#

main62551-02220-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main62551-02230-E0iZZE142..PKN200808-201406

GREGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02180-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200801-201310

GRAY,TRIM1#

sub62552-02180

main62552-02180-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201310

DK.GRAY,TRIM1#

sub62552-02180

main62552-02180-E0iZRE143,ZZE142..VN200801-201407

GREGE,TRIM4#

sub62552-02180

main62552-02190-B0iZZE14#..GCC200712-201007

GRAY,TRIM11

main62552-02190-B0iZZE142..(18G,18V)..TAIW200712-201310

GRAY,TRIM1#

main62552-02190-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main62552-02190-B1iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM12

main62552-02190-E0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200712-201310

GREGE,TRIM4#

main62552-02200-E0iNDE140,ZRE142..IND200808-201312

GREGE,TRIM4#

main62552-02210-E0iCE140,NZE140200808-201406

GREGE,TRIM4#

62591DPLATE, SIDE TRIM BASE, NO.1

main62591-12020iZRE14#..GCC,TAIW201305-201310

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-02140-E0iZRE142..18J..IND201105-201312

GRADE MARK : J,GREGE,TRIM4#

main67911-02140-E0iNDE140..E200808-201312

GREGE,TRIM4#

main67911-02150-E0iCE140,NZE140,ZRE141..PKN200808-201406

GREGE,TRIM4#

main67911-02160-E0iNDE140,ZRE142..(18G,18V,E,G)..IND200808-201312

GREGE,TRIM4#

main67911-02170-B0iZZE142..VN;ZZE141..(16J,LIMO)..TH;ZZE141..(16E,16G)..(MA,PHL)200801-201310

GRAY,TRIM1#

sub67911-02170

main67911-02170-E0iZRE142..MA201008-201310

GRADE MARK : 1.6E OR 1.8E,GREGE,TRIM4#

sub67911-02170

main67911-02170-E0iZZE141..16E..TH200801-201407

GREGE,TRIM4#

sub67911-02170

main67911-02170-E0iZZE142..18J..IDN;ZZE141..RHD..4FC..(16E,16G)200801-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN),GREGE,TRIM4#

sub67911-02170

main67911-02180-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main67911-02180-E0iZRE14#..(16V,18E,18EL,18G,20G,20V)..(IDN,MA,PHL,TH)200801-201311

GREGE,TRIM4#

main67911-02190-B0iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

GRAY,TRIM11

main67911-02190-B0iZZE14#..GCC200712-201310

GRAY,TRIM1#

main67911-02190-B1iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

DK.GRAY,TRIM12

main67911-02190-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main67911-02190-E0iZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)200712-201310

GREGE,TRIM4#

main67911-02200-B0iZZE142..(18G,18V)..TAIW200712-200811

GRAY,TRIM1#

main67911-02200-B1iZRE143..(20G,20V)..TAIW200811-201007

DK.GRAY,TRIM1#

main67911-02200-E0iZZE142..(18G,18V)..TAIW200712-201007

GREGE,TRIM4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-02140-E0iNDE140..E201105-201312

GRADE MARK : J,GREGE,TRIM4#

main67911-02140-E0iNDE140..E200808-201312

GREGE,TRIM4#

main67911-02150-E0iCE140,NZE140200808-201406

GREGE,TRIM4#

main67911-02160-E0iNDE140,ZRE142..(18G,18V,E,G)..IND200808-201312

GREGE,TRIM4#

main67911-02170-B0iZZE142..VN;ZZE141..(16J,LIMO)..TH;ZZE141..(16E,16G)..(MA,PHL)200801-201310

GRAY,TRIM1#

sub67911-02170

main67911-02170-E0iZZE141..16E..TH200801-201407

GREGE,TRIM4#

sub67911-02170

main67911-02170-E0iZRE141,142,ZZE141..(16E,16G,18J)..(IDN,MA,TH)201008-201310

GRADE MARK : 1.6E OR 1.8E,GREGE,TRIM4#

sub67911-02170

main67911-02170-E0iZZE142..MA200801-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN),GREGE,TRIM4#

sub67911-02170

main67911-02180-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main67911-02180-E0iZRE143,ZZE14#..(16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH)200801-201311

GREGE,TRIM4#

main67911-02190-B0iZZE14#..GCC200712-201007

GRAY,TRIM11

main67911-02190-B0iZZE141..TAIW200712-201310

GRAY,TRIM1#

main67911-02190-B1iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

DK.GRAY,TRIM12

main67911-02190-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main67911-02190-E0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200712-201310

GREGE,TRIM4#

main67911-02200-B0iZZE142..(18G,18V)..TAIW200712-200811

GRAY,TRIM1#

main67911-02200-B1iZRE143..(20G,20V)..TAIW200811-201007

DK.GRAY,TRIM1#

main67911-02200-E0iZRE143..(20G,20V)..TAIW200712-201007

GREGE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02200-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main67913-02210-E0iCE140,NZE140200808-201406

GREGE,TRIM4#

main67913-02220-B0iZZE142..VN;ZZE141..(16J,LIMO)..TH;ZZE141..(16E,16G)..(MA,PHL)200801-201310

GRAY,TRIM1#

sub67913-02220

main67913-02220-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

sub67913-02220

main67913-02220-E0iZRE143..CVFC..(IDN,MA,PHL,TH,VN);ZRE141,142..(16V,18E,18EL,18G)..(IDN,MA,PHL,TH,VN)200801-201407

GREGE,TRIM4#

sub67913-02220

main67913-02230-B0iZZE14#..GCC200712-201007

GRAY,TRIM11

main67913-02230-B0iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201310

GRAY,TRIM1#

main67913-02230-B1iZRE143..(20G,20V)..TAIW200811-201310

DK.GRAY,TRIM1#

main67913-02230-B1iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

DK.GRAY,TRIM12

main67913-02230-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02200-E0iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main67914-02210-E0iCE140,NZE140,ZRE141..PKN200808-201406

GREGE,TRIM4#

main67914-02220-B0iZZE142..VN;ZZE141..(16J,LIMO)..TH;ZZE141..(16E,16G)..(MA,PHL)200801-201310

GRAY,TRIM1#

main67914-02220-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main67914-02220-E0iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201407

GREGE,TRIM4#

main67914-02230-B0iZRE141,142..ATM..(18J,GLI,XLI)200712-201310

GRAY,TRIM1#

main67914-02230-B0iZZE14#..GCC200712-201007

GRAY,TRIM11

main67914-02230-B1iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

DK.GRAY,TRIM12

main67914-02230-B1iZRE143..(20G,20V)..TAIW200811-201310

DK.GRAY,TRIM1#

main67914-02230-E0iZRE14#..LHD..(18E,20G,G,GLI,XLI)200712-201310

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02190-E0iZZE142..18J..IND200808-201312

GREGE,TRIM4#

main67917-02190-E0iNDE140..E201105-201312

GRADE MARK : J,GREGE,TRIM4#

main67917-02200-E0iZZE142..PKN200808-201406

GREGE,TRIM4#

main67917-02210-E0iNDE140,ZRE142..(18G,18V,E,G)..IND200808-201312

GREGE,TRIM4#

main67917-02220-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)200801-201310

GRAY,TRIM1#

sub67917-02220

main67917-02220-E0iZZE142..18J..IDN;ZZE141..RHD..4FC..(16E,16G)200801-201407

GREGE,TRIM4#

sub67917-02220

main67917-02220-E0iZZE142..18J..IDN;ZZE141..RHD..4FC..(16E,16G)200801-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN),GREGE,TRIM4#

sub67917-02220

main67917-02220-E0iZRE141,142,ZZE141..(16E,16G,18J)..(IDN,MA,TH)201008-201310

GRADE MARK : 1.6E OR 1.8E,GREGE,TRIM4#

sub67917-02220

main67917-02230-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main67917-02230-E0iZZE142..18V..(IDN,PHL)200801-201311

GREGE,TRIM4#

main67917-02240-B0iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

GRAY,TRIM11

main67917-02240-B0iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201310

GRAY,TRIM1#

main67917-02240-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main67917-02240-B1iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

DK.GRAY,TRIM12

main67917-02240-E0iZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)200712-201310

GREGE,TRIM4#

main67917-02250-B0iZZE142..(18G,18V)..TAIW200712-200811

GRAY,TRIM1#

main67917-02250-B1iZRE143..(20G,20V)..TAIW200811-201007

DK.GRAY,TRIM1#

main67917-02250-E0iZZE142..(18G,18V)..TAIW200712-201007

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02190-E0iZZE142..18J..IND200808-201312

GREGE,TRIM4#

main67918-02190-E0iNDE140..E201105-201312

GRADE MARK : J,GREGE,TRIM4#

main67918-02200-E0iCE140,NZE140,ZRE141..PKN200808-201406

GREGE,TRIM4#

main67918-02210-E0iNDE140,ZRE142..(18G,18V,E,G)..IND200808-201312

GREGE,TRIM4#

main67918-02220-B0iZZE142..VN;ZZE141..(16J,LIMO)..TH;ZZE141..(16E,16G)..(MA,PHL)200801-201310

GRAY,TRIM1#

sub67918-02220

main67918-02220-E0iZRE142..MA201008-201310

GRADE MARK : 1.6E OR 1.8E,GREGE,TRIM4#

sub67918-02220

main67918-02220-E0iZRE142..MA200801-201407

GREGE,TRIM4#

sub67918-02220

main67918-02220-E0iZZE142..18J..IDN;ZZE141..RHD..4FC..(16E,16G)200801-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN),GREGE,TRIM4#

sub67918-02220

main67918-02230-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

main67918-02230-E0iZZE142..18V..(IDN,PHL)200801-201311

GREGE,TRIM4#

main67918-02240-B0iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

GRAY,TRIM11

main67918-02240-B0iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201310

GRAY,TRIM1#

main67918-02240-B1iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

DK.GRAY,TRIM12

main67918-02240-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY,TRIM1#

main67918-02240-E0iZZE141..TAIW200712-201310

GREGE,TRIM4#

main67918-02250-B0iZZE142..(18G,18V)..TAIW200712-200811

GRAY,TRIM1#

main67918-02250-B1iZRE143..(20G,20V)..TAIW200811-201007

DK.GRAY,TRIM1#

main67918-02250-E0iZZE142..(18G,18V)..TAIW200712-201007

GREGE,TRIM4#

7104

90167T0012

main90167-T0012

9018905096

main90189-05096

9046706147

main90467-06147

9356855018

main93568-55018

37 parts on this diagram · 1 diagram in section
