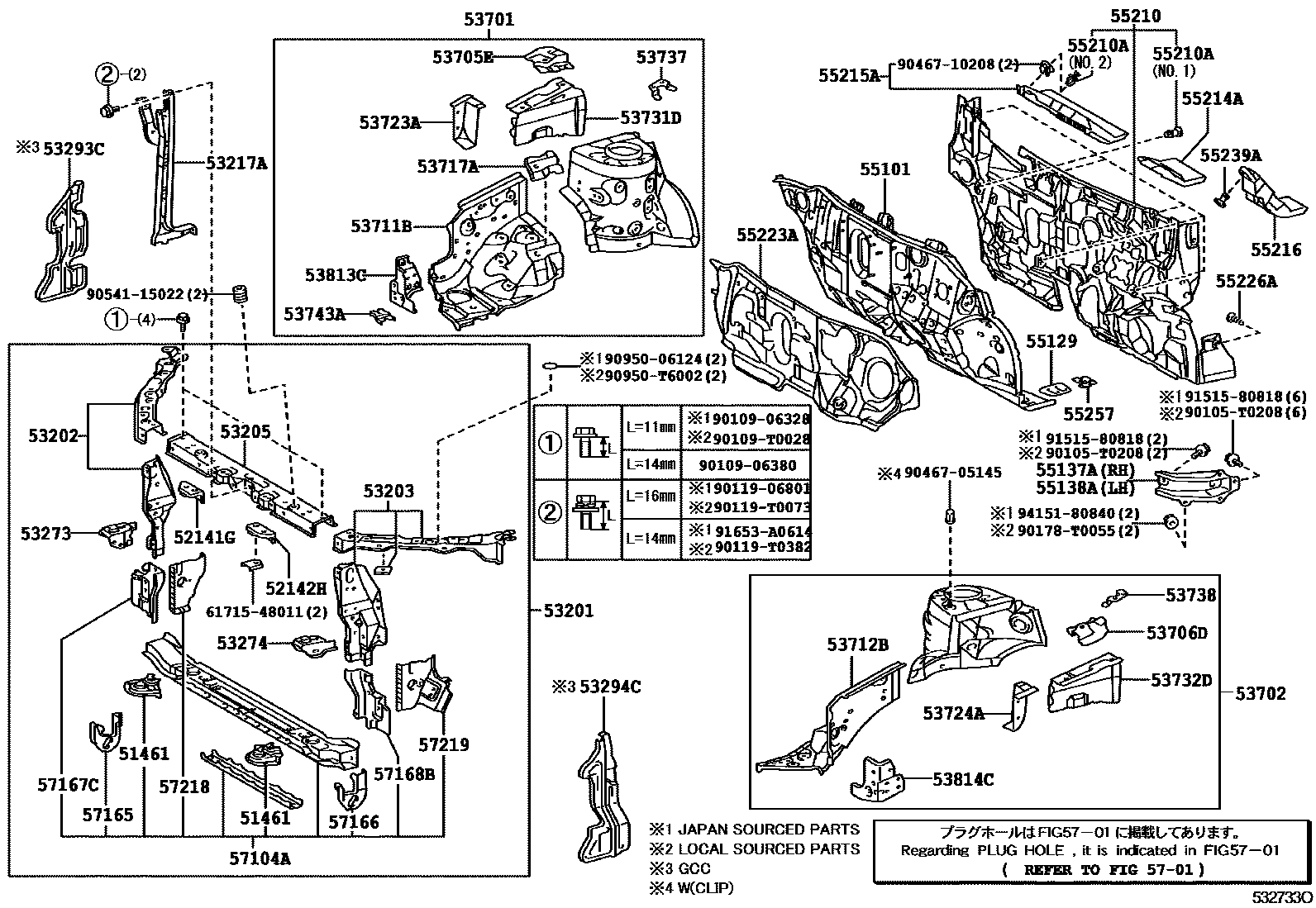

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

51461BRACKET, RADIATOR STAY

main51461-02030iCE140,NZE140200712-201104

RH

main51461-02030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

RH

main51461-02030iNDE140,ZZE142..IND200712-201105

RH

main51461-02030iZRE143,ZZE142..VN200712-201010

RH

main51461-02030iZZE142..PKN200712

RH

main51461-02030iZZE14#..(16J,18G,18V)..TAIW200712-200811

RH

main51461-02030iZRE141,142..ATM..(16J,18G)..TH201007-201211

RH

main51461-02030iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

RH

main51461-02030iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

RH

main51461-02030iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

RH

main51462-02030iZZE14#..(16J,18G,18V)..TAIW200712-200811

LH

main51462-02030iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

LH

main51462-02030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

LH

main51462-02030iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

LH

main51462-02030iZRE143,ZZE142..VN200712-201010

LH

main51462-02030iCE140,NZE140200712-201104

LH

main51462-02030iNDE140,ZZE142..IND200712-201105

LH

main51462-02030iZZE142..PKN200712

LH

main51462-02030iZRE141,142..ATM..(16J,18G)..TH201007-201211

LH

main51462-02030iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

LH

52141GSTAY, FRONT BUMPER, RH

main52141-02120iZZE14#..(16J,18G,18V)..TAIW200712-200811

main52141-02120iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main52141-02120iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main52141-02120iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main52141-02120iZRE143,ZZE142..VN200712-201010

main52141-02120iCE140,NZE140200712-201104

main52141-02120iNDE140,ZZE142..IND200712-201105

main52141-02120iZZE142..PKN200712

main52141-02120iZRE141,142..ATM..(16J,18G)..TH201007-201211

main52141-02120iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

52142HSTAY, FRONT BUMPER, LH

main52142-02110iZZE142..PKN200712

main52142-02110iZZE14#..(16J,18G,18V)..TAIW200712-200811

main52142-02110iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main52142-02110iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main52142-02110iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main52142-02110iZRE143,ZZE142..VN200712-201010

main52142-02110iCE140,NZE140200712-201104

main52142-02110iNDE140,ZZE142..IND200712-201105

main52142-02110iZRE141,142..ATM..(16J,18G)..TH201007-201211

main52142-02110iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02270iZZE14#..TAIW200712-200811

main53201-02270iZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NDE140,NZE140,ZRE141,142,ZZE141..IDN,IND,MA,PHL,PKN,TH,VN201008-201407

main53201-02270iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53201-02270iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53201-02270iZRE143,ZZE142..VN200712-201010

main53201-02270iCE140,NZE140200712-201104

main53201-02270iNDE140,ZZE142..IND200712-201105

main53201-02270iZZE142..PKN200712

main53201-02320iZRE143,ZZE14#..GCC,TAIW200811-201007

main53201-02320iZRE14#..GCC,TAIW201007-201310

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-02120iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

main53202-02120iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53202-02120iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53202-02120iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53202-02120iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53202-02120iZRE143,ZZE142..VN200712-201010

main53202-02120iCE140,NZE140200712-201104

main53202-02120iNDE140,ZZE142..IND200712-201105

main53202-02120iZZE142..PKN200712

main53202-02120iZRE141,142..ATM..(16J,18G)..TH201007-201211

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-02130iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

main53203-02130iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53203-02130iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53203-02130iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53203-02130iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53203-02130iZRE143,ZZE142..VN200712-201010

main53203-02130iCE140,NZE140200712-201104

main53203-02130iNDE140,ZZE142..IND200712-201105

main53203-02130iZZE142..PKN200712

main53203-02130iZRE141,142..ATM..(16J,18G)..TH201007-201211

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02170iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53205-02170iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53205-02170iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53205-02170iZRE143,ZZE142..VN200712-201010

main53205-02170iCE140,NZE140200712-201104

main53205-02170iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53205-02170iNDE140,ZZE142..IND200712-201105

main53205-02170iZZE142..PKN200712

main53205-02170iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53205-02170iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53217ABRACE, HOOD LOCK SUPPORT

main53208-02120iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53208-02120iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53208-02120iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53208-02120iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53208-02120iZRE143,ZZE142..VN200712-201010

main53208-02120iCE140,NZE140200712-201104

main53208-02120iNDE140,ZZE142..IND200712-201105

main53208-02120iZZE142..PKN200712

main53208-02120iZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142201007-201407

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-02160iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53273-02160iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53273-02160iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53273-02160iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53273-02160iZRE143,ZZE142..VN200712-201010

main53273-02160iCE140,NZE140200712-201104

main53273-02160iNDE140,ZZE142..IND200712-201105

main53273-02160iZZE142..PKN200712

main53273-02160iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53273-02160iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-02140iCE140,NZE140200712-201104

main53274-02140iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53274-02140iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53274-02140iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53274-02140iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53274-02140iZRE143,ZZE142..VN200712-201010

main53274-02140iNDE140,ZZE142..IND200712-201105

main53274-02140iZZE142..PKN200712

main53274-02140iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53274-02140iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-02070iZZE14#..GCC200901-201007

main53293-02110iZRE141,142..GCC201007-201310

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-02070iZZE14#..GCC200901-201007

main53294-02110iZRE141,142..GCC201007-201310

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02220iZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53701-02220iZZE141..5F..PHL;ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..4FC..(16E,16G,16V,20G,20V)..(IDN,MA,PHL,TH)200712-201008

main53701-02220iZRE143..CVFC;NDE140,ZRE141..16E,16G,16V,E,G;ZRE142,ZZE141..(16G,18E,18EL,18G,18J,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,TH,VN)201007-201407

main53701-02220iZRE143,ZZE142..VN200712-201010

main53701-02220iNDE140,ZZE142..IND200712-201105

main53701-02220iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53701-02220iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53701-02230iZZE141..LIMO;ZRE141..16J,XLI201007-201311

main53701-02230iZZE141..GCC200801-201007

main53701-02230iZZE141..(16J,LIMO)..TH200801-201008

main53701-02260iCE140,NZE140,ZRE141..20DSA,D,GLI,N201104-201406

main53701-02260iZZE142..PKN200808

main53701-02260iCE140,NZE140..20DSA,GLI200808-201104

main53701-02270iCE140,NZE140..20D,XLI201104-201406

main53701-02270iCE140,NZE140..20D,XLI200808-201104

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02170iNDE140,ZZE142..IND200712-201104

sub53702-02171

main53702-02170iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200712-201008

sub53702-02171

main53702-02170iZZE14#..(16J,18G,18V)..TAIW200712-200811

sub53702-02171

main53702-02170iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

sub53702-02171

main53702-02170iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

sub53702-02171

main53702-02170iZRE143,ZZE142..VN200712-201010

sub53702-02171

main53702-02170iZRE143..CVFC;NDE140,ZRE141,142..GCC,IDN,IND,MA,PHL,TAIW,TH,VN201007-201107

sub53702-02171

main53702-02171iNDE140,ZRE14#..GCC,IDN,IND,MA,PHL,TAIW,TH,VN201108-201407

main53702-02190iZZE142..PKN200808

main53702-02190iCE140,NZE140,ZRE141..PKN201104-201406

main53702-02190iCE140,NZE140200808-201104

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-02040iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53705-02040iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53705-02040iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53705-02040iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53705-02040iZRE143,ZZE142..VN200712-201010

main53705-02040iCE140,NZE140200712-201104

main53705-02040iNDE140,ZZE142..IND200712-201105

main53705-02040iZZE142..PKN200712

main53705-02040iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53705-02040iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-02040iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53706-02040iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53706-02040iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200712-201008

main53706-02040iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53706-02040iZRE143,ZZE142..VN200712-201010

main53706-02040iCE140,NZE140200712-201104

main53706-02040iNDE140,ZZE142..IND200712-201105

main53706-02040iZZE142..PKN200712

main53706-02040iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53706-02040iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,201007

53711BAPRON, FRONT FENDER, FRONT RH

main53711-02100iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53711-02100iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53711-02100iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53711-02100iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53711-02100iZRE143,ZZE142..VN200712-201010

main53711-02100iCE140,NZE140200712-201104

main53711-02100iNDE140,ZZE142..IND200712-201105

main53711-02100iZZE142..PKN200712

main53711-02100iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53711-02100iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53712BAPRON, FRONT FENDER, FRONT LH

main53712-02110iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53712-02110iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53712-02110iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53712-02110iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200712-201008

main53712-02110iZRE143,ZZE142..VN200712-201010

main53712-02110iCE140,NZE140200712-201104

main53712-02110iNDE140,ZZE142..IND200712-201105

main53712-02110iZZE142..PKN200712

main53712-02110iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53712-02110iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,201007

53717APLATE, FENDER APRON

main53717-12060iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥740200712-201008

main53717-12060iZZE14#..(16J,18G,18V)..TAIW¥740200712-200811

main53717-12060iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥740200712-200812

main53717-12060iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥740200712-201007

main53717-12060iZRE143,ZZE142..VN¥740200712-201010

main53717-12060iCE140,NZE140¥740200712-201104

main53717-12060iNDE140,ZZE142..IND¥740200712-201105

main53717-12060iZZE142..PKN¥740200712

main53717-12060iZRE141,142..ATM..(16J,18G)..TH¥740201007-201211

main53717-12060iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥740201007

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-02090iCE140,NZE140200808-201104

main53723-02090iZZE142..PKN200808

main53723-02090iCE140,NZE140,ZRE141..PKN201104

main53723-12080iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥720200712-201008

main53723-12080iZRE143,ZZE142..VN¥720200712-201010

main53723-12080iNDE140,ZZE142..IND¥720200712-201105

main53723-12080iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥720200712-200812

main53723-12080iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥720200712-201007

main53723-12080iZZE14#..(16J,18G,18V)..TAIW¥720200712-200811

main53723-12080iZRE141,142..ATM..(16J,18G)..TH¥720201007-201211

main53723-12080iZRE142..HTWCF;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G)¥720201007

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-02060iZZE142..PKN200808

main53724-02060iCE140,NZE140,ZRE141..PKN201104

main53724-02060iCE140,NZE140200808-201104

main53724-12070iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥720200712-201007

main53724-12070iZZE14#..(16J,18G,18V)..TAIW¥720200712-200811

main53724-12070iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥720200712-200812

main53724-12070iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)¥720200712-201008

main53724-12070iZRE143,ZZE142..VN¥720200712-201010

main53724-12070iNDE140,ZZE142..IND¥720200712-201105

main53724-12070iZRE141,142..ATM..(16J,18G)..TH¥720201007-201211

main53724-12070iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G)¥720201007

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02080iZZE142..PKN200808

main53731-02080iCE140,NZE140200808-201104

main53731-02080iCE140,NZE140,ZRE141..PKN201104

main53731-12160iZRE141,142..ATM..(16J,18G)..TH¥1,980201007-201211

main53731-12160iZRE142..HTWCF;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G)¥1,980201007

main53731-12160iZZE14#..(16J,18G,18V)..TAIW¥1,980200712-200811

main53731-12160iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥1,980200712-200812

main53731-12160iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥1,980200712-201007

main53731-12160iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥1,980200712-201008

main53731-12160iZRE143,ZZE142..VN¥1,980200712-201010

main53731-12160iNDE140,ZZE142..IND¥1,980200712-201105

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02090iCE140,NZE140,ZRE141..PKN201104

main53732-02090iCE140,NZE140200808-201104

main53732-02090iZZE142..PKN200808

main53732-12140iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)¥1,980200712-201008

main53732-12140iZRE143,ZZE142..VN¥1,980200712-201010

main53732-12140iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G)¥1,980201007

main53732-12140iNDE140,ZZE142..IND¥1,980200712-201105

main53732-12140iZZE14#..(16J,18G,18V)..TAIW¥1,980200712-200811

main53732-12140iZRE141,142..ATM..(16J,18G)..TH¥1,980201007-201211

main53732-12140iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥1,980200712-200812

main53732-12140iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥1,980200712-201007

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-02090iZZE142..PKN200712

main53737-02090iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53737-02090iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53737-02090iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53737-02090iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53737-02090iZRE143,ZZE142..VN200712-201010

main53737-02090iCE140,NZE140200712-201104

main53737-02090iNDE140,ZZE142..IND200712-201105

main53737-02090iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53737-02090iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-02070iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53738-02070iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53738-02070iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53738-02070iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200712-201008

main53738-02070iZRE143,ZZE142..VN200712-201010

main53738-02070iCE140,NZE140200712-201104

main53738-02070iNDE140,ZZE142..IND200712-201105

main53738-02070iZZE142..PKN200712

main53738-02070iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53738-02070iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,201007

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-12050iZZE14#..(16J,18G,18V)..TAIW¥430200712-200811

main53743-12050iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥430200712-200812

main53743-12050iZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥430200712-201007

main53743-12050iZZE141..5F..PHL;ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..4FC..(16E,16G,16V,20G,20V)..(IDN,MA,PHL,TH)¥430200712-201008

main53743-12050iZRE143,ZZE142..VN¥430200712-201010

main53743-12050iCE140,NZE140..20DSA,GLI¥430200712-201104

main53743-12050iNDE140,ZZE142..IND¥430200712-201105

main53743-12050iZZE142..PKN¥430200712

main53743-12050iZRE142..18G..TH¥430201007-201211

main53743-12050iZRE143..CVFC;ZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20DSA,D,E,G,GLI,N¥430201007

53813CEXTENSION, FRONT FENDER, RH

main53803-02030iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53803-02030iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53803-02030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53803-02030iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main53803-02030iZRE143,ZZE142..VN200712-201010

main53803-02030iCE140,NZE140200712-201104

main53803-02030iNDE140,ZZE142..IND200712-201105

main53803-02030iZZE142..PKN200712

main53803-02030iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53803-02030iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

53814CEXTENSION, FRONT FENDER, LH

main53814-02080iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main53814-02080iZZE14#..(16J,18G,18V)..TAIW200712-200811

main53814-02080iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main53814-02080iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200712-201008

main53814-02080iZRE143,ZZE142..VN200712-201010

main53814-02080iCE140,NZE140200712-201104

main53814-02080iNDE140,ZZE142..IND200712-201105

main53814-02080iZZE142..PKN200712

main53814-02080iZRE141,142..ATM..(16J,18G)..TH201007-201211

main53814-02080iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,201007

55101PANEL SUB-ASSY, DASH

main55101-02A30iZRE141,142..ATM..(IND,PKN)201104-201406

main55101-02A30iZZE142..4FC..PKN200808

main55101-02A30iZZE142..4FC..IND200808-201105

main55101-02A40iNZE140200808-201104

main55101-02A40iNDE140,NZE140,ZRE141,142..MTM..(IND,PKN)201104-201406

main55101-02A40iZZE142..5F..PKN200808

main55101-02A40iNDE140,ZZE142..MTM..IND200808-201105

main55101-02A50iCE140200808-201104

main55101-02A50iCE140201104-201406

main55101-02A60iZRE142,143..CVFC..VN201010-201407

main55101-02A60iZRE143,ZZE142..4FC..VN200808-201010

main55101-02A70iZRE142..6F..VN201010-201407

main55101-02A70iZZE142..5F..VN200808-201010

main55101-02A80iZZE142..18V..IDN200801-200812

sub55101-02A30

main55101-02A80iZRE143,ZZE14#..4FC..(16E,16G,16J,18E,18G,20G,20V)..(IDN,MA,TH)200801-201008

FFV SPEC

sub55101-02A30

main55101-02A80iZRE14#..ATM..(IDN,MA,TH)201008-201311

sub55101-02A30

main55101-02A90iZZE141..16E..TH200801-200812

main55101-02A90iZZE14#..5F..(16J,18J)..(IDN,TH)200801-201008

main55101-02A90iZRE141,142..6F..(IDN,TH)201008-201311

main55101-02B00iZZE142..PHL200712-200812

main55101-02B00iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55101-02B00iZRE141,143..ATM..PHL201008-201311

main55101-02B00iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-200901

main55101-02B00iZRE143,ZZE141..4FC..PHL200712-201008

main55101-02B10iZZE141..5F..PHL200802-201008

main55101-02B10iZRE141..6F..PHL201008-201311

main55101-02B40iZRE143,ZZE14#..GCC,TAIW200901-201007

main55101-02B40iZRE14#..GCC,TAIW201007-201310

55129COVER, DASH PANEL HOLE

main55129-02050iCE140,NZE140200808-201104

RH

main55129-02050iZZE142..PKN200808

RH

main55129-02050iCE140,NZE140,ZRE141..PKN201104-201406

RH

main55129-32030iZZE14#..(16J,18G,18V)..TAIW¥470200712-200811

RH

main55129-32030iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥470200712-200812

RH

main55129-32030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥470200712-201007

RH

main55129-32030iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)¥470200712-201008

RH

main55129-32030iZRE143,ZZE142..VN¥470200712-201010

RH

main55129-32030iNDE140,ZZE142..IND¥470200712-201105

RH

main55129-32030iZRE143..CVFC;NDE140,ZRE141,142..GCC,IDN,IND,MA,PHL,TAIW,TH,VN¥470201007-201407

RH

main55139-02040iCE140,NZE140,ZRE141..PKN201104-201406

LH

main55139-02040iZZE142..PKN200808

LH

main55139-02040iCE140,NZE140200808-201104

LH

main55139-32010iZZE14#..(16J,18G,18V)..TAIW¥470200712-200811

LH

main55139-32010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥470200712-201007

LH

main55139-32010iNDE140,ZZE142..IND¥470200712-201105

LH

main55139-32010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥470200712-200812

LH

main55139-32010iZRE143..CVFC;NDE140,ZRE141,142..GCC,IDN,IND,MA,PHL,TAIW,TH,VN¥470201007-201407

LH

main55139-32010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)¥470200712-201008

LH

main55139-32010iZRE143,ZZE142..VN¥470200712-201010

LH

55137ABRACE, DASH TO FRAME, RH

main55137-02070iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55137-02070iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main55137-02070iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main55137-02070iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main55137-02070iZRE143,ZZE142..VN200712-201010

main55137-02070iCE140,NZE140200712-201104

main55137-02070iNDE140,ZZE142..IND200712-201105

main55137-02070iZRE141,142..ATM..(16J,18G)..TH201007-201211

main55137-02070iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

main55137-02070iZZE142..PKN200712

55138ABRACE, DASH TO FRAME, LH

main55138-02060iZRE143,ZZE142..VN200712-201010

main55138-02060iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55138-02060iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main55138-02060iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main55138-02060iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main55138-02060iCE140,NZE140200712-201104

main55138-02060iNDE140,ZZE142..IND200712-201105

main55138-02060iZZE142..PKN200712

main55138-02060iZRE141,142..ATM..(16J,18G)..TH201007-201211

main55138-02060iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

55210INSULATOR ASSY, DASH PANEL

main55210-02310iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55210-02310iZZE14#..(16E,18V)..(IDN,TH)200801-200812

main55210-02310iZRE141,142..ATM..(16J,18G)..TH201008-201211

main55210-02310iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,18E,18J,20G,20V,LIMO)..(IDN,MA,TH)..HTWC201008-201311

main55210-02320iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201008-201101

sub55210-02321

main55210-02320iZRE143,ZZE142..VN200802-201010

sub55210-02321

main55210-02320iZRE143,ZZE141..PHL200802-201008

sub55210-02321

main55210-02320iZZE142..PHL200802-200812

sub55210-02321

main55210-02321iZRE14#..PHL,VN201102

main55210-02330iNDE140,ZZE142..IND200808-201105

main55210-02330iCE140,NZE140200808-201104

main55210-02330iCE140,NDE140,NZE140,ZRE141,142..IND,PKN201104

main55210-02330iZZE142..PKN200808

main55210-02360iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

sub55210-02361

main55210-02360iZRE14#..GCC,TAIW201007-201012

sub55210-02361

main55210-02360iZZE14#..(16J,18G,18V)..TAIW200712-200811

sub55210-02361

main55210-02361iZRE14#..GCC,TAIW201101-201310

55210ACLIP

main90467-11122iZZE14#..(16J,18G,18V)..TAIW¥100200712-200811

NO.1

main90467-11122iCE140,NZE140¥100200712-201104

NO.1

main90467-11122iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥100200712-200812

NO.1

main90467-11122iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥100201007

NO.1

main90467-11122iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥100200712-201007

NO.1

main90467-11122iZRE141,142..ATM..(16J,18G)..TH¥100201007-201211

NO.1

main90467-11122iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥100200712-201008

NO.1

main90467-11122iZZE142..PKN¥100200712

NO.1

main90467-11122iZRE143,ZZE142..VN¥100200712-201010

NO.1

main90467-11122iNDE140,ZZE142..IND¥100200712-201105

NO.1

main90467-11127iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥120201007

NO.2

main90467-11127iZZE14#..(16J,18G,18V)..TAIW¥120200712-200811

NO.2

main90467-11127iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥120200712-200812

NO.2

main90467-11127iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥120200712-201007

NO.2

main90467-11127iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥120200712-201008

NO.2

main90467-11127iZRE143,ZZE142..VN¥120200712-201010

NO.2

main90467-11127iCE140,NZE140¥120200712-201104

NO.2

main90467-11127iNDE140,ZZE142..IND¥120200712-201105

NO.2

main90467-11127iZZE142..PKN¥120200712

NO.2

main90467-11127iZRE141,142..ATM..(16J,18G)..TH¥120201007-201211

NO.2

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-02070iNDE140,ZZE142..IND200801-201105

main55214-02070iZZE142..PKN200801

main55214-02070iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55214-02070iZZE14#..(16E,18V)..(IDN,TH)200801-200812

main55214-02070iCE140,NDE140,NZE140,ZRE14#,ZZE141..RHD201008-201112

main55214-02070iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,201112

(L)

main55214-02070iZRE141,142..ATM..(16J,18G)..TH201112-201211

(L)

main55214-02070iCE140,NZE140200801-201104

main55214-02080iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55214-02080iZZE142..PHL200712-200812

main55214-02080iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main55214-02080iZRE143,ZZE141..PHL200712-201008

main55214-02080iZRE143,ZZE142..VN200712-201010

main55214-02080iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201007-201101

main55214-02080iZRE14#..GCC,TAIW201007-201102

main55214-02081iZRE14#..GCC,TAIW201102-201310

main55214-02081iZRE14#..PHL,VN201101-201112

main55214-02081iZRE14#..PHL,VN201112

(L)

main55214-12030iZRE141,142..ATM..(16J,18G)..TH¥1,800201112-201211

(J)

main55214-12030iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,¥1,800201112

(J)

main55214-12100iZRE14#..PHL,VN¥2,320201112

(J)

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-02070iCE140,NDE140,NZE140,ZRE14#,ZZE141..RHD201008-201112

main55215-02070iZZE14#..(16E,18V)..(IDN,TH)200801-200812

main55215-02070iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55215-02070iCE140,NZE140200801-201104

main55215-02070iNDE140,ZZE142..IND200801-201105

main55215-02070iZZE142..PKN200801

main55215-02070iZRE141,142..ATM..(16J,18G)..TH201112-201211

(L)

main55215-02070iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,201112

(L)

main55215-02080iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201007-201112

main55215-02080iZZE142..PHL200712-200812

main55215-02080iZRE143,ZZE141..PHL200712-201008

main55215-02080iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main55215-02080iZRE14#..PHL,VN201112

(L)

main55215-02080iZRE143,ZZE142..VN200712-201010

main55215-02080iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55215-02080iZRE14#..GCC,TAIW201007-201310

main55215-12120iZRE141,142..ATM..(16J,18G)..TH¥3,420201112-201211

(J)

main55215-12120iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,¥3,420201112

(J)

main55215-12130iZRE14#..PHL,VN201112

(J)

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-02020iCE140,NZE140200801-201104

main55216-02020iZZE142..PKN200801

main55216-02020iCE140,NDE140,NZE140,ZRE14#,ZZE141..RHD201008-201112

main55216-02020iZRE141,142..ATM..(16J,18G)..TH201112-201211

(L)

main55216-02020iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,201112

(L)

main55216-02020iZZE14#..(16E,18V)..(IDN,TH)200801-200812

main55216-02020iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55216-02020iNDE140,ZZE142..IND200801-201105

main55216-02030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main55216-02030iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55216-02030iZZE142..PHL200712-200812

main55216-02030iZRE143,ZZE141..PHL200712-201008

main55216-02030iZRE143,ZZE142..VN200712-201010

main55216-02030iZRE141,142..LHD;ZRE143..LHD..CVFC201007-201112

main55216-02030iZRE14#..LHD201112

(L)

main55216-12010iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,¥1,650201112

(J)

main55216-12010iZRE141,142..ATM..(16J,18G)..TH¥1,650201112-201211

(J)

main55216-12030iZRE14#..LHD201112

(J)

55223AINSULATOR, DASH PANEL, OUTER

main55223-02220iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,N,XLI)201008

main55223-02220iZZE14#..(16E,18V)..(IDN,TH)200801-200812

main55223-02220iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V)..(IDN,MA,TH)200801-201008

FFV SPEC

main55223-02220iCE140,NZE140200801-201104

main55223-02220iNDE140,ZZE142..IND200801-201105

main55223-02220iZZE142..PKN200801

main55223-02220iZRE141,142..ATM..(16J,18G)..TH201008-201211

main55223-02230iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201008

main55223-02230iZRE143,ZZE142..VN200802-201010

main55223-02230iZRE143,ZZE141..PHL200802-201008

main55223-02230iZZE142..PHL200802-200812

main55223-02250iZRE14#..GCC,TAIW201007-201310

main55223-02250iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55223-02250iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

55226ACLIP

main90467-08186-C0iNDE140,ZZE142..IND200712-201105

BLACK

sub90467-08186¥120

main90467-08186-C0iZZE142..PKN200712

BLACK

sub90467-08186¥120

main90467-08186-C0iZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142201007-201407

BLACK

sub90467-08186¥120

main90467-08186-C0iZZE14#..(16J,18G,18V)..TAIW200712-200811

BLACK

sub90467-08186¥120

main90467-08186-C0iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

BLACK

sub90467-08186¥120

main90467-08186-C0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

BLACK

sub90467-08186¥120

main90467-08186-C0iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

BLACK

sub90467-08186¥120

main90467-08186-C0iZRE143,ZZE142..VN200712-201010

BLACK

sub90467-08186¥120

main90467-08186-C0iCE140,NZE140200712-201104

BLACK

sub90467-08186¥120

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020iZZE14#..(16J,18G,18V)..TAIW¥130200712-200811

main55239-48020iZZE142..PHL¥130200712-200812

main55239-48020iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥130200712-201007

main55239-48020iZRE143,ZZE141..PHL¥130200712-201008

main55239-48020iZRE143,ZZE142..VN¥130200712-201010

main55239-48020iZRE141,142..LHD;ZRE143..LHD..CVFC¥130201007

55257COVER, DASH PANEL OPENING

main55257-32010iZZE14#..(16J,18G,18V)..TAIW¥240200712-200811

main55257-32010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥240200712-200812

main55257-32010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥240200712-201007

main55257-32010iCE140,NZE140¥240200712-201104

main55257-32010iZRE143..CVFC;CE140,NDE140,NZE140,ZRE141,142¥240201007-201407

main55257-32010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)¥240200712-201008

main55257-32010iZRE143,ZZE142..VN¥240200712-201010

main55257-32010iZZE142..PKN¥240200712

main55257-32010iNDE140,ZZE142..IND¥240200712-201105

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-02170iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main57104-02170iZZE14#..TAIW200712-200811

main57104-02170iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main57104-02170iZRE143,ZZE142..VN200712-201010

main57104-02170iCE140,NZE140200712-201104

main57104-02170iNDE140,ZZE142..IND200712-201105

main57104-02170iZZE142..PKN200712

main57104-02170iZRE141,142..ATM..(16J,18G)..TH201008-201211

main57104-02170iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,G201008

main57104-02210iZRE14#..GCC,TAIW201007-201310

main57104-02210iZRE143,ZZE14#..GCC,TAIW200811-201007

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-12070iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥1,300200712-201007

main57165-12070iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥1,300200712-201008

main57165-12070iZRE143,ZZE142..VN¥1,300200712-201010

main57165-12070iCE140,NZE140¥1,300200712-201104

main57165-12070iNDE140,ZZE142..IND¥1,300200712-201105

main57165-12070iZZE142..PKN¥1,300200712

main57165-12070iZRE141,142..ATM..(16J,18G)..TH¥1,300201007-201211

main57165-12070iZZE14#..(16J,18G,18V)..TAIW¥1,300200712-200811

main57165-12070iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥1,300201007

main57165-12070iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥1,300200712-200812

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-12020iZRE143,ZZE142..VN¥1,300200712-201010

main57166-12020iZZE14#..(16J,18G,18V)..TAIW¥1,300200712-200811

main57166-12020iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥1,300200712-200812

main57166-12020iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥1,300200712-201007

main57166-12020iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥1,300200712-201008

main57166-12020iCE140,NZE140¥1,300200712-201104

main57166-12020iNDE140,ZZE142..IND¥1,300200712-201105

main57166-12020iZZE142..PKN¥1,300200712

main57166-12020iZRE141,142..ATM..(16J,18G)..TH¥1,300201007-201211

main57166-12020iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥1,300201007

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-02100iZZE14#..(16J,18G,18V)..TAIW200712-200811

main57167-02100iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main57167-02100iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main57167-02100iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main57167-02100iZRE143,ZZE142..VN200712-201010

main57167-02100iCE140,NZE140200712-201104

main57167-02100iNDE140,ZZE142..IND200712-201105

main57167-02100iZZE142..PKN200712

main57167-02100iZRE141,142..ATM..(16J,18G)..TH201007-201211

main57167-02100iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-02100iZRE141,142..ATM..(16J,18G)..TH201007-201211

main57168-02100iZZE14#..(16J,18G,18V)..TAIW200712-200811

main57168-02100iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main57168-02100iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main57168-02100iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

main57168-02100iZRE143,ZZE142..VN200712-201010

main57168-02100iCE140,NZE140200712-201104

main57168-02100iNDE140,ZZE142..IND200712-201105

main57168-02100iZZE142..PKN200712

main57168-02100iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,201007

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-02060iZRE143,ZZE14#..GCC,TAIW200811-201007

main57218-02060iZRE14#..GCC,TAIW201007-201310

main57218-02070iCE140,NDE140,NZE140,ZRE14#,ZZE141..IDN,IND,MA,PHL,PKN,TH,VN201303

main57218-12010iZRE143,ZZE142..VN¥1,110200712-201010

main57218-12010iCE140,NZE140¥1,110200712-201104

main57218-12010iNDE140,ZZE142..IND¥1,110200712-201105

main57218-12010iZZE142..PKN¥1,110200712

main57218-12010iZRE141,142..ATM..(16J,18G)..TH¥1,110201008-201211

main57218-12010iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,G¥1,110201008-201302

main57218-12010iZZE14#..TAIW¥1,110200712-200811

main57218-12010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥1,110200712-200812

main57218-12010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥1,110200712-201008

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-02060iZRE143,ZZE14#..GCC,TAIW200811-201007

main57219-02060iZRE14#..GCC,TAIW201007-201310

main57219-12010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥1,110200712-201008

main57219-12010iNDE140,ZZE142..IND¥1,110200712-201105

main57219-12010iZZE142..PKN¥1,110200712

main57219-12010iZRE143,ZZE142..VN¥1,110200712-201010

main57219-12010iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,G¥1,110201008

main57219-12010iCE140,NZE140¥1,110200712-201104

main57219-12010iZZE14#..TAIW¥1,110200712-200811

main57219-12010iZRE141,142..ATM..(16J,18G)..TH¥1,110201008-201211

main57219-12010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥1,110200712-200812

6171548011REINFORCEMENT, ROOF SIDE, INNER REAR RH

main61715-48011¥230

90105T0208

main90105-T0208

9010906328

main90109-06328¥60

9010906380

main90109-06380¥60

90109T0028

main90109-T0028

9011906801

main90119-06801¥60

90119T0073

main90119-T0073¥60

90119T0382

main90119-T0382

90178T0055

main90178-T0055

9046705145

main90467-05145¥100

9046710208

main90467-10208¥90

9054115022

main90541-15022¥300

9095006124

main90950-06124¥90

90950T6002

main90950-T6002

9151580818

main91515-80818¥90

91653A0614

main91653-A0614¥60

9415180840

main94151-80840¥80

66 parts on this diagram · 2 diagrams in section
