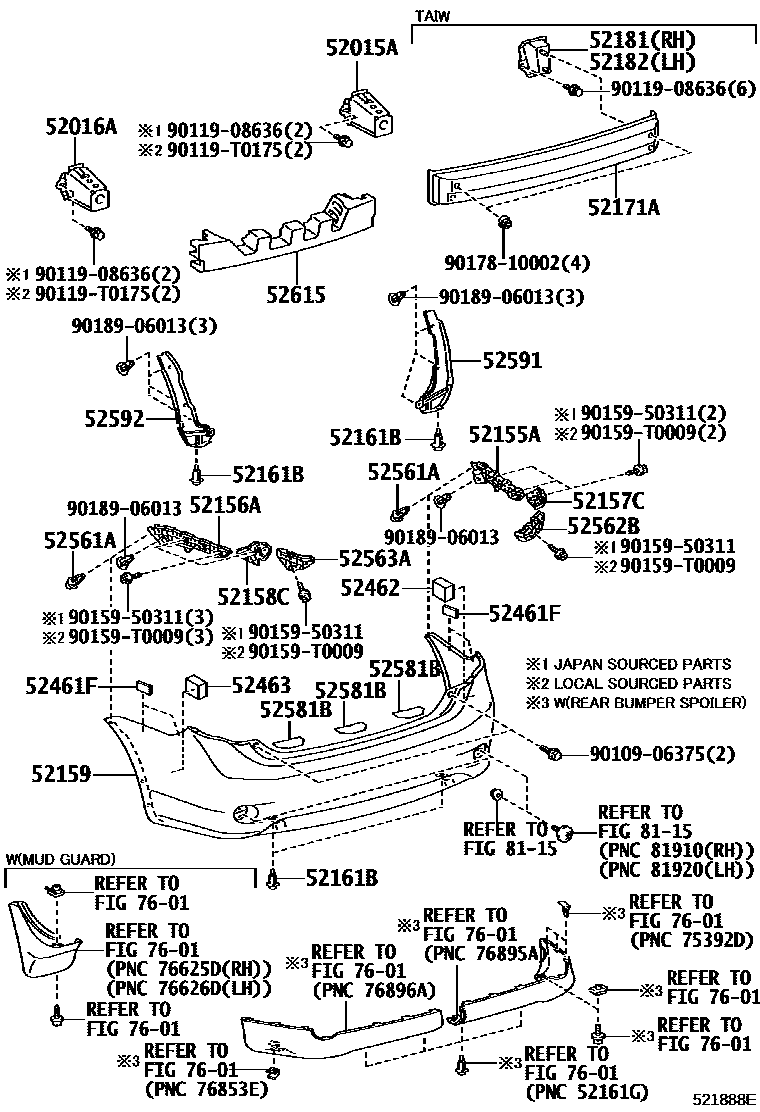

REAR BUMPER & BUMPER STAY

0001 1 0006 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-02090iZZE14#..GCC200801-201211

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-02090iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02120iZZE14#..(16J,18G,18V)..TAIW200712-201211

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02110iZZE14#..(16J,18G,18V)..TAIW200712-201211

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-02050iZZE14#..(16J,18G,18V)..TAIW200712-201211

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-02040iZZE14#..(16J,18G,18V)..TAIW200712-201211

52159COVER, REAR BUMPER

main52159-02540iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201010

PAINT REQ.

main52159-02710iZRE143..CVFC..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..IDN,MA,PHL,TH,VN201008-201407

PAINT REQ.

main52159-02958iZZE14#..(16J,18G,18V)..TAIW200712-201007

PAINT REQ.

main52159-02962iNDE140,ZZE142..IND200808-201105

PAINT REQ.

main52159-02970iZZE142..PKN200808-201104

PAINT REQ.

main52159-02984iZRE14#..GCC,TAIW201007-201310

PAINT REQ.

main52159-02986iNDE140;ZRE142..(18G,18J)..IND201105-201312

PAINT REQ.

main52159-02987iCE140,NZE140,ZRE141..PKN201104-201406

PAINT REQ.

main52159-02988iZRE142..18V,E,G201105-201312

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iZRE143..20V..TH201008-201211

WITH(BACK MONITOR),(L)

main52161-0K040iZRE141,142,ZZE141..MA,PHL,TH;ZRE142,143..(18J,20V)..(IDN,MA,PHL)200712-201311

main52161-0K040iZRE143..CVFC..(TAIW,VN);ZRE142..(18E,18G)..(IDN,TAIW,VN)201007-201407

(L)

main52161-16010iNDE140,ZZE142..IND200808-201406

sub52161-0K040

main52161-16010iZRE143..CVFC..(TAIW,VN);ZRE142..(18E,18G)..(IDN,TAIW,VN)201007-201407

(J)

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02160iZZE14#..(16J,18G,18V)..TAIW200712-201310

52181ARM, REAR BUMPER, RH

main52181-02040iZZE14#..(16J,18G,18V)..TAIW200712-201310

52182ARM, REAR BUMPER, LH

main52182-02030iZZE14#..(16J,18G,18V)..TAIW200712-201310

52461FPAD, REAR BUMPER

main52461-02030iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201306

52462PAD, REAR BUMPER, RH

main52462-02090iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201105

main52462-02130iZRE141,142..ATM..(16J,18G)..TH201007-201211

52463PAD, REAR BUMPER, LH

main52462-02090iZZE14#..(16J,18G,18V)..TAIW200712-201105

main52462-02130iZRE141,142..ATM..(16J,18G)..TH201007-201211

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iZZE14#..(16J,18G,18V)..TAIW200712-201212

DK.GRAY

sub90467-05090

main90467-05170iCE140,NDE140,NZE140,ZRE14#,ZZE141201301

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02100iZZE14#..(16J,18G,18V)..TAIW200712-201105

main52562-02120iZRE141,142..ATM..(16J,18G)..TH201007-201211

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02070iCE140,NZE140200712-201105

main52563-02100iZRE141,142..ATM..(16J,18G)..TH201007-201211

52581BPROTECTOR, REAR BUMPER

main52581-02060iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

52591SEAL, REAR BUMPER SIDE, RH

main52591-02190iZRE143,ZZE142..VN200712-201211

52592SEAL, REAR BUMPER SIDE, LH

main52592-02180iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

52615ABSORBER, REAR BUMPER ENERGY

main52615-02110iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;ZRE143..CVFC..(IDN,MA,PHL,VN);ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141..200801-201211

main52615-02140iZRE143..TH200905-201311

7601

8115

9010906375

main90109-06375

9011908636

main90119-08636

90119T0175

main90119-T0175

9015950311

main90159-50311

90159T0009

main90159-T0009

9017810002

main90178-10002

9018906013

main90189-06013

30 parts on this diagram · 2 diagrams in section
