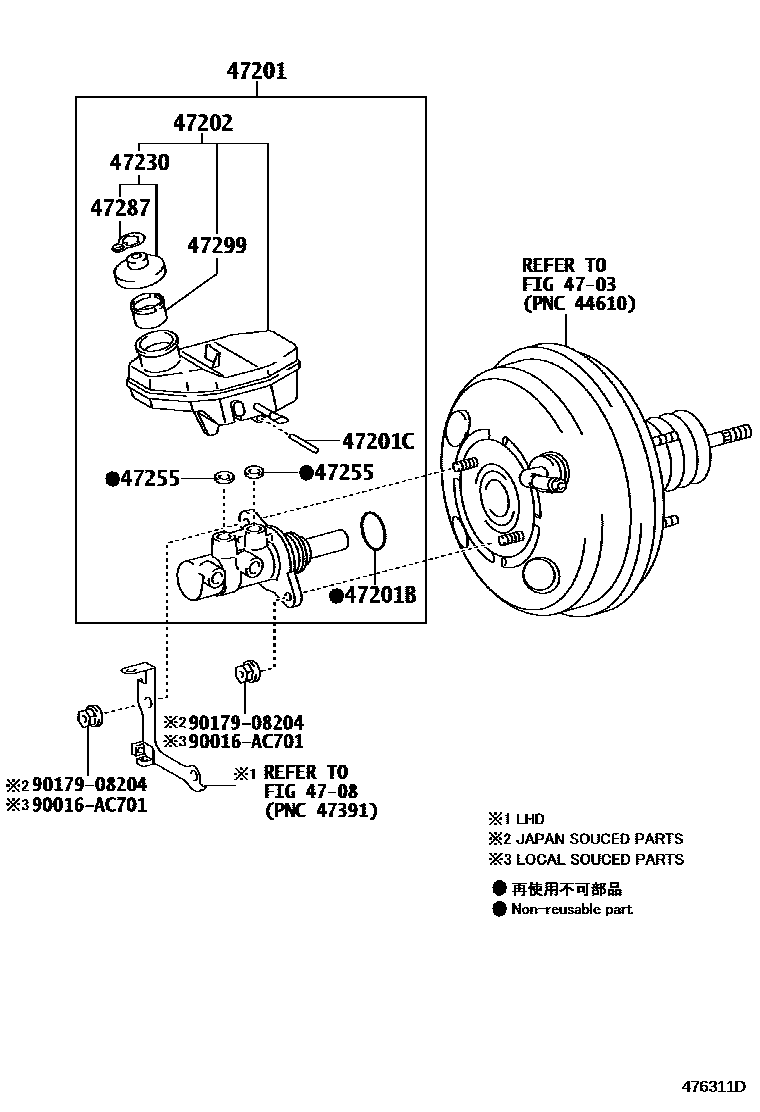

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02430iZZE142..18G..IDN;ZRE143,ZZE141..IDN,MA;ZRE143,ZZE14#..(16G,16J,18E,18J,20G,LIMO)..(IDN,TH)200801-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN)

main47201-02440iZZE142..18G..TH200801-200812

main47201-02441iZRE142..MA;ZRE143..20V..(MA,TH)201204-201207

main47201-02442iZRE142..MA;ZRE143..20V..(MA,TH)201208-201311

main47201-02450iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201008

main47201-02520iZRE143,ZZE14#..LHD..(18E,18J,20E,20G,GLI,XLI)200712-201007

main47201-02530iZZE142..18E..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

sub47201-02531

main47201-09540iNDE140,ZZE142..IND200808-201105

main47201-12B30iCE140,NZE140200808-201104

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRE143,ZZE142..VN200801-201010

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iCE140,NZE140200712-201104

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02230iZRE141,142..ATM..(16J,18G)..TH201008-201211

main47220-02240iZRE143,ZZE142..VN200802-201010

main47220-02280iZRE14#..GCC,TAIW201007-201310

main47220-09130iNDE140,ZZE142..IND200808-201105

main47220-12240iCE140,NZE140,ZRE141..PKN201104

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02220iNDE140,ZRE142..IND201105-201312

main47230-0D010iZRE142..MA;ZRE143..20V..(MA,TH)201204-201208

main47230-0K010iZRE142..MA;ZRE143..20V..(MA,TH)201008-201204

main47230-0K060iZRE14#..GCC,TAIW201007-201310

main47230-20100iZZE142..PKN200808

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNDE140,ZRE142..IND201105-201312

main90016-AT001×2iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC201008

main90029-48001×2iZZE142..PKN200712

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142..(16E,16G,16V,18E,201007

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iNDE140,ZZE142..IND200808-201105

main47299-0D100iZRE143,ZZE142..VN200801-201010

main47299-20060iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

90016AC701

main90016-AC701

9017908204

main90179-08204

12 parts on this diagram · 3 diagrams in section
