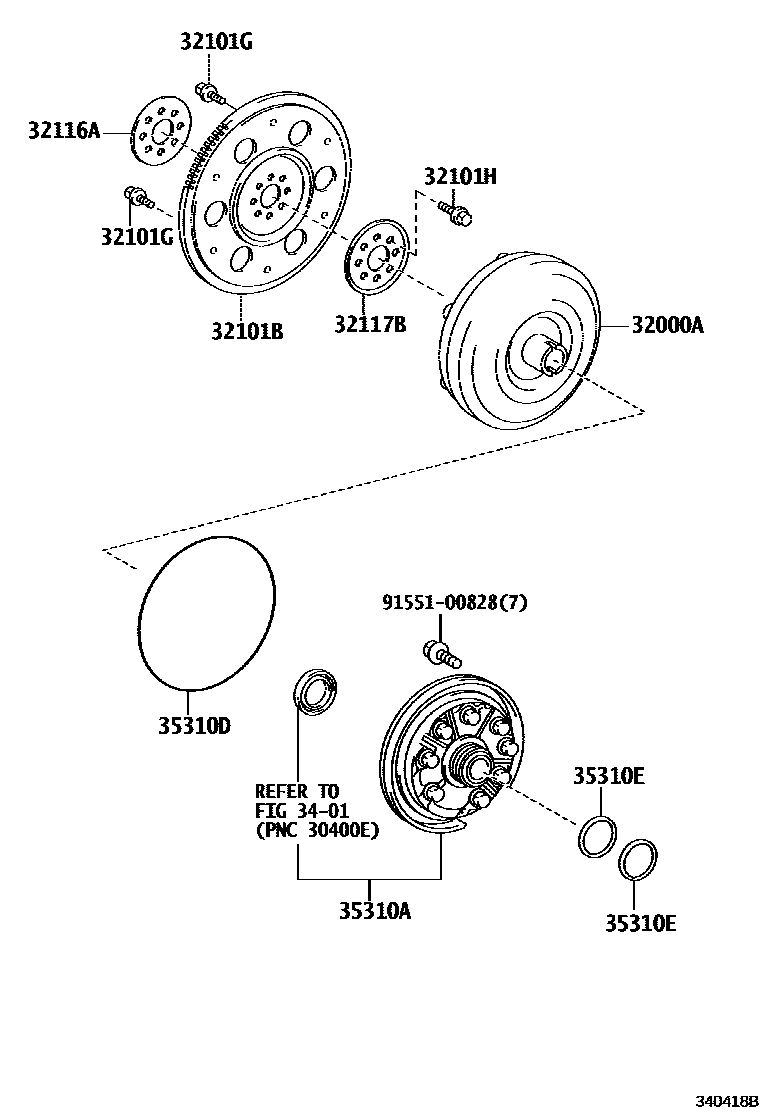

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K311 0002 1K111

32000ACONVERTER ASSY, TORQUE

main32000-12400iZRE142..CVFC201007-201407

main32000-28180iZRE143..CVFC201007-201407

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE142..CVFC201007-201407

main32101-28050iZRE143..CVFC201007

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)201007

*8-1.25PX12-8.4,BLACK

main90109-09001iZRE143..CVFC201007

*9-1.25PX12.4-7.3,BLACK

main90119-08498×5iZRE142..18G..TH201007-201211

*8-1.25PX12-8,YELLOW

main90119-09025×5iZRE143..CVFC201007

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZRE142..18G..TH201007-201211

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE142..18G..TH201007-201211

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)201007

3401

35310APUMP ASSY, FRONT OIL

main35310-12121iZRE142..CVFC201007-201407

main35310-28030iZRE143..CVFC201007-201303

main35310-28031iZRE143201303

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99090iZRE143..CVFC201007

main90301-99133iZRE142..CVFC201007-201407

sub90301-99202

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030×2iZRE142..CVFC201007-201407

main35617-28020×2iZRE143201211

main35617-44010×2iZRE143..CVFC201007-201211

9155100828

main91551-00828

11 parts on this diagram · 2 diagrams in section
