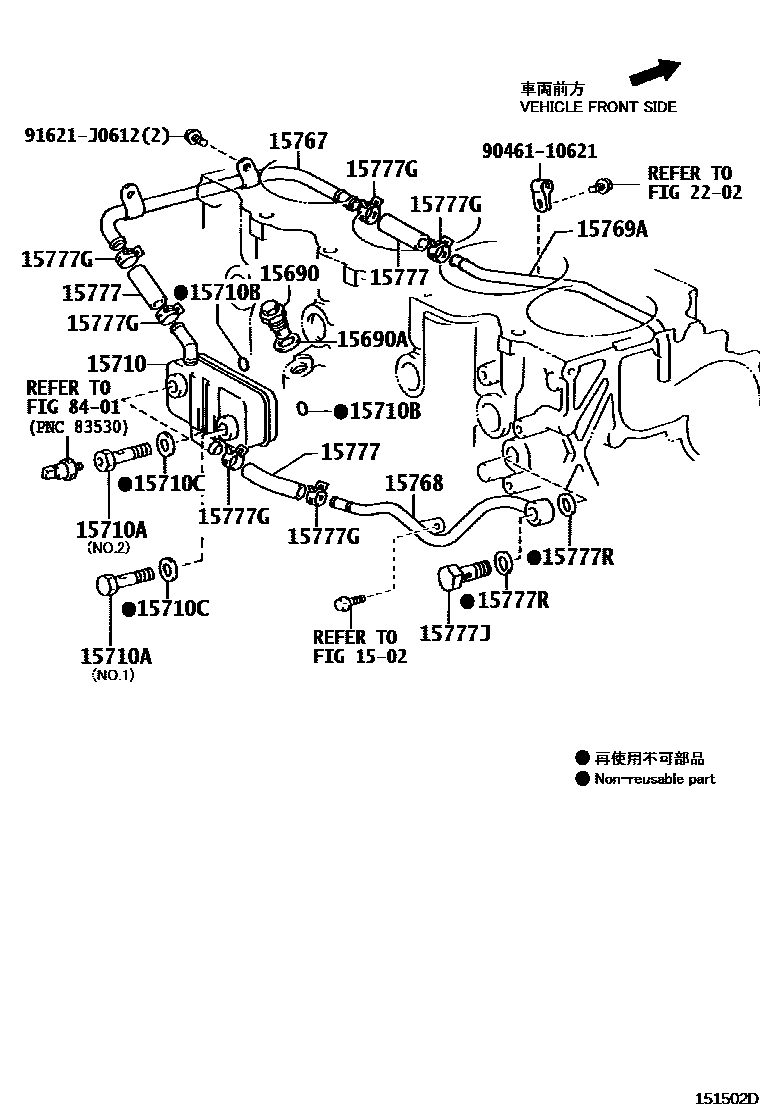

ENGINE OIL COOLER

0001 1 0002 1

1502

15690VALVE ASSY, OIL COOLER RELIEF

main15690-64010i2C..CE140200808-201101

main15690-64011i2C..CE140201101-201104

15690AGASKET(FOR OIL COOLER RELIEF VALVE)

main90430-22003i2C..CE140201104

15710COOLER ASSY, OIL

main15710-33070i1NDTV..NDE140201006-201105

main15710-64010i2C..CE140200808-201104

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18009i2C..CE140200808-201104

NO.1

main90401-18011i2C..CE140200808-201104

NO.2

15710BRING, O(FOR OIL COOLER)

main90301-22004×2i2C..CE140201104

main96723-35024×2i1NDTV..NDE140201105-201312

15710CGASKET(FOR OIL COOLER)

main90430-18021×2i2C..CE140200808-201104

15767PIPE, OIL COOLER

main15767-64011i2C..CE140200808-201104

15768PIPE, OIL COOLER, NO.1

main15768-64071i2C..CE140201104

15769APIPE, OIL COOLER, NO.2

main15769-64011i2C..CE140200808-201104

15777HOSE, OIL COOLER

main15777-33040i1NDTV..NDE140201105-201312

main90445-21006×3i2C..CE140201104

15777GCLAMP OR CRIP, HOSE

main96134-41900×6i2C..CE140201104

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i2C..CE140200808-201104

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20014×2i2C..CE140200808-201104

2202

8401

9046110621

main90461-10621

91621J0612

main91621-J0612

18 parts on this diagram · 2 diagrams in section
