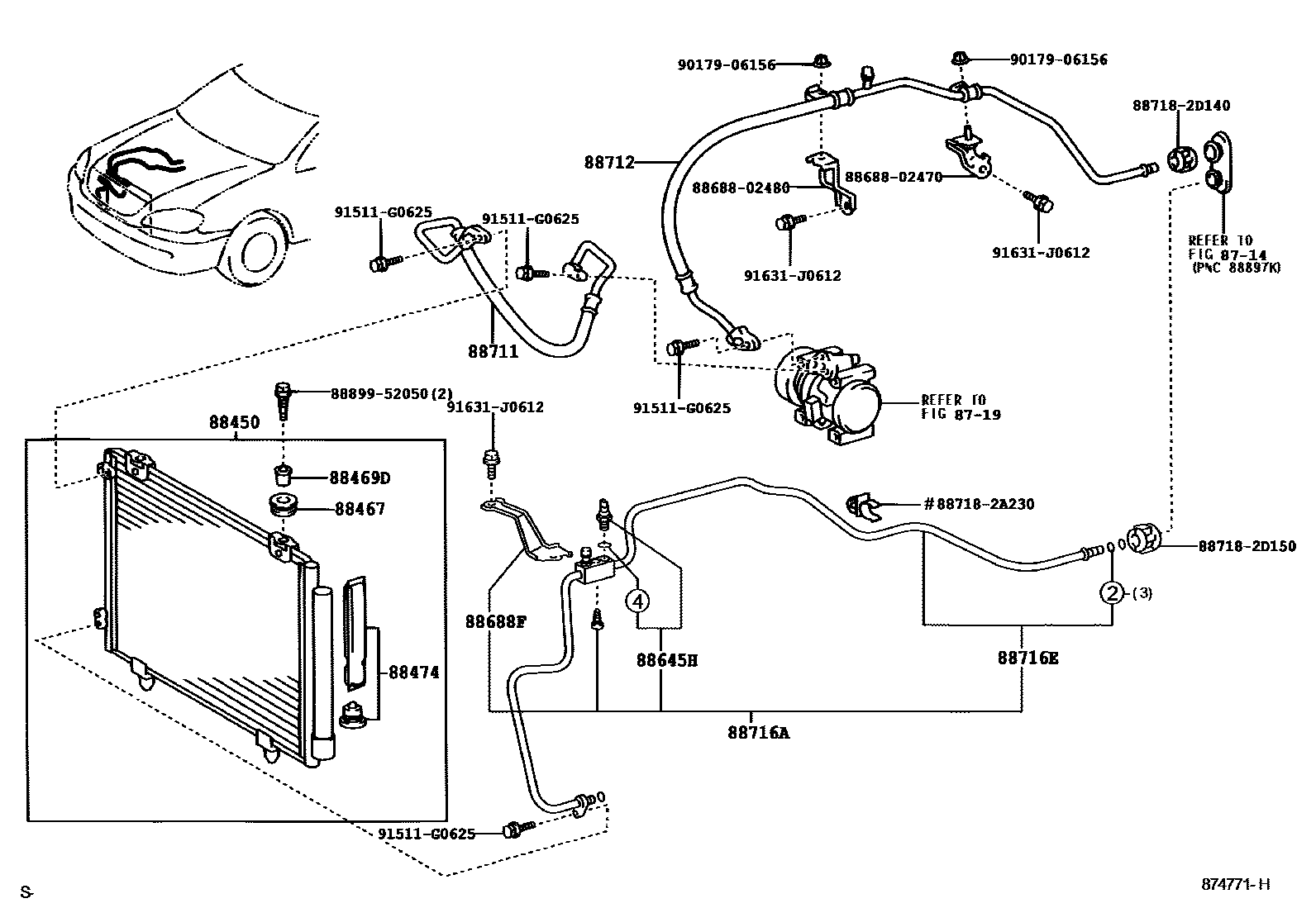

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1O-RING

8714

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-02100iZZE121..16E..TAIW200103-200211

main88450-02101iZZE12#..TAIW200305-200310

main88450-02130iZZE12#..(16E,18G)..PHL200401-200802

88467CUSHION, COOLER CONDENSER, NO.1

main88467-02010×2iZZE12#..MA200401-200801

main88467-12180×2iZZE12#..TAIW200310-200712

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iZZE122..IND,VN200310

88474DRYER, COOLER

main88474-17010iNZE120,ZZE122..VN200207-200403

main88474-47010iZZE12#..IND,MA200401

88645HSWITCH, PRESSURE NO.1

main88645-0A010iZZE12#..IDN,TH200105-200311

main88645-60030iZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IND,MA,PHL,TAIW)200103-200508

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-1E120iZZE121..16E..TAIW200103-200211

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-02030iZZE12#..TAIW200103-200310

main88703-02050iZZE12#..TH200105-200311

main88703-02060iZZE122..IDN200107-200311

main88703-02070iZZE12#..MA200107-200401

main88703-02080iZZE12#..(16E,16G,18G)..PHL200107-200401

main88703-02120iZZE121..16J..PHL200401-200802

main88703-02160iZZE122..IND200508

main88703-02200iZZE12#..IDN,TH200311-200801

main88703-02210iZZE12#..MA200401-200801

main88703-02220iZZE12#..TAIW200310-200712

main88703-02230iZZE12#..(16E,18G)..PHL200401-200802

main88703-12530iNZE120200107-200403

main88703-12540iZZE122..VN200403

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-02190iZZE12#..TAIW200103-200310

main88704-02210iZZE12#..MA200107-200401

main88704-02220iZZE12#..(16E,16G,18G)..PHL200107-200401

main88704-02290iZZE121..16J..PHL200107-200401

main88704-02330iZZE122..IND200508

main88704-02430iZZE12#..IDN,TH200311-200801

main88704-02440iZZE12#..MA200401-200801

main88704-02450iZZE12#..TAIW200310-200712

main88704-02460iZZE12#..(16E,18G)..PHL200401-200802

main88704-12840iNZE120200107-200403

main88704-12850iZZE122..VN200403

main88712-02170iZZE12#..IDN,TH200105-200311

main88712-02290iZZE122..IND200301-200508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02210iZZE12#..TAIW200103-200310

main88710-02211iZZE12#..TAIW200310-200712

main88710-02230iZZE12#..MA200401-200801

main88710-02240iZZE12#..(16E,18G)..PHL200401-200802

main88710-02380iZZE121..16J..PHL200401-200802

main88710-02440iZZE122..IND200508

main88710-12530iNZE120,ZZE122..VN200107-200110

main88710-12531iZZE122..VN200403-200608

main88710-12532iZZE122..VN200609

main88716-02270iZZE12#..IDN,TH200105-200311

main88716-02450iZZE122..IND200301-200508

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-1A620iZZE121..16E..TAIW200103-200211

8868802470BRACKET, COOLER DIAPHRAGM

main88688-02470

8868802480BRACKET, COOLER DIAPHRAGM

main88688-02480

887182A230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A230

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

9017906156

main90179-06156

91511G0625

main91511-G0625

91631J0612

main91631-J0612

21 parts on this diagram · 12 diagrams in section
