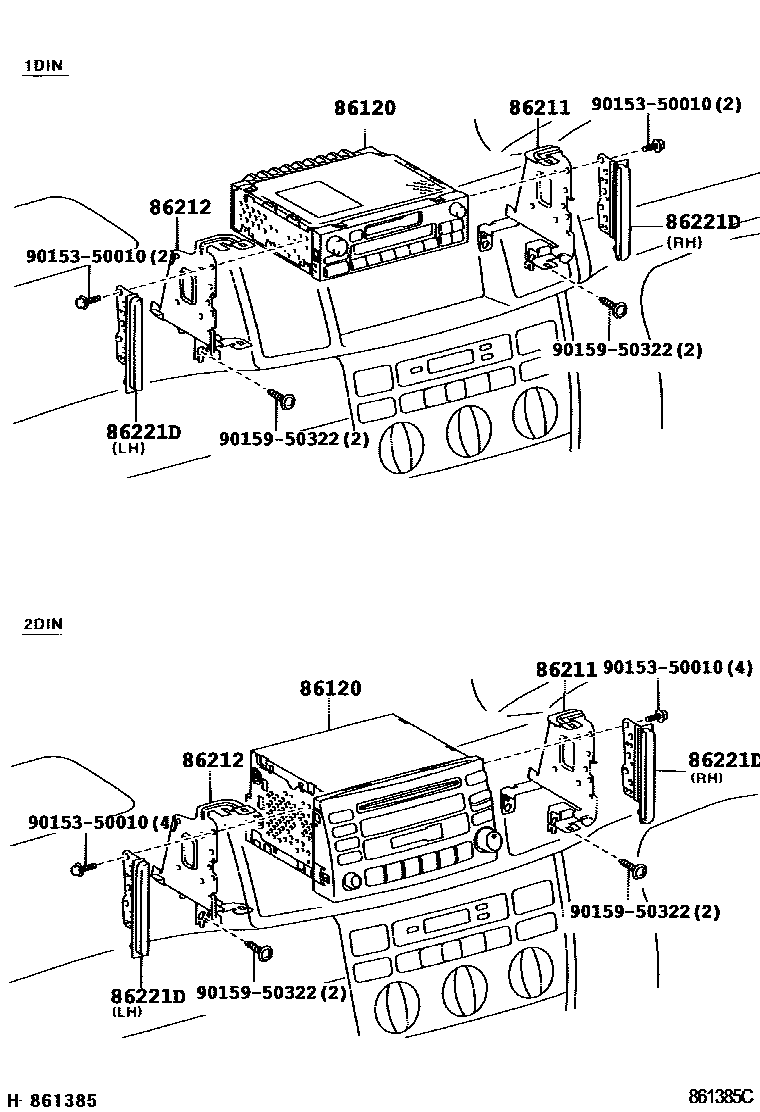

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02200iZZE122..TAIW200103-200603

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION

main86120-02210iZZE122..TH200105-200603

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION

main86120-02220iZZE121..(16E,16J)..TH200105-200205

ALPINE,TYPE C:REFER TO ILLUSTRATION

main86120-02230iZZE121..16E..TH200105-200311

PIONEER,ID=T7410,TYPE C:REFER TO ILLUSTRATION

main86120-02240iZZE121..16200105-200801

FUJITSU TEN,TYPE D:REFER TO ILLUSTRATION

main86120-02360iZZE122..18J..IND200301-200508

MATSUSHITA,TYPE E:REFER TO ILLUSTRATION

main86120-02370iZZE122..(18E,18G)..IND200301-200603

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION

main86120-02480iZZE122..VN200403-200605

MATSUSHITA,TYPE A:REFER TO ILLUSTRATION

main86120-02490iZZE122..(18E,18G)..IND200508

PANASONIC,ID=57867,TYPE F:REFER TO ILLUSTRATION

main86120-02620iZZE12#..(16J,18E)..TAIW200603-200712

PANASONIC,ID=52811,TYPE H:REFER TO ILLUSTRATION

main86120-02630iZZE122..TAIW200603-200712

PANASONIC,ID=52810,TYPE H:REFER TO ILLUSTRATION & W(CD CHANGER)

main86120-02640iZZE12#..(16E,16J,18J)..(IDN,TH)200603-200801

PANASONIC,ID=52809,TYPE H:REFER TO ILLUSTRATION

main86120-02650iZZE122..18E..TH;ZZE122..18G..IDN200603-200801

PIONEER,ID=2824,TYPE H:REFER TO ILLUSTRATION & W(CD CHANGER)

main86120-02660iZZE121..16E..PHL200605-200802

FUJITSU TEN,ID=12835,TYPE H:REFER TO ILLUSTRATION

main86120-02670iZZE122..PHL200605-200802

FUJITSU TEN,ID=12836,TYPE H:REFER TO ILLUSTRATION & W(CD CHANGER)

main86120-02680iZZE122..VN200605

PIONEER,ID=2825,TYPE H:REFER TO ILLUSTRATION & W(CD CHANGER)

main86120-0K050iZZE122..18J..IND200508

PANASONIC,ID=57807,TYPE G:REFER TO ILLUSTRATION

main86120-2B570iZZE12#..(16J,18E)..TAIW200103-200603

MATSUSHITA,TYPE B:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-12370iZZE121..16E..TAIW200103-200802

86212BRACKET, RADIO, NO.2

main86212-12350iZZE12#..MA,PHL200103-200801

main86212-12390iZZE12#..PHL200605-200802

86221DPANEL, RADIO RECEIVER

main86221-02010iZZE12#..ATM..MA;ZZE121..MTM..16J..PHL200109-200802

LH,(L)

main86221-02020iZZE122..18G..IDN200109-200802

RH,(L)

main86221-52050iZZE121..TH200109-200802

LH,(J)

main86221-52050iZZE121..TH200103-200603

LH

main86221-52060iZZE12#..TAIW200103-200603

RH

main86221-52060iZZE122..18J..IDN200109-200802

RH,(J)

9015350010

main90153-50010

9015950322

main90159-50322

6 parts on this diagram · 3 diagrams in section
