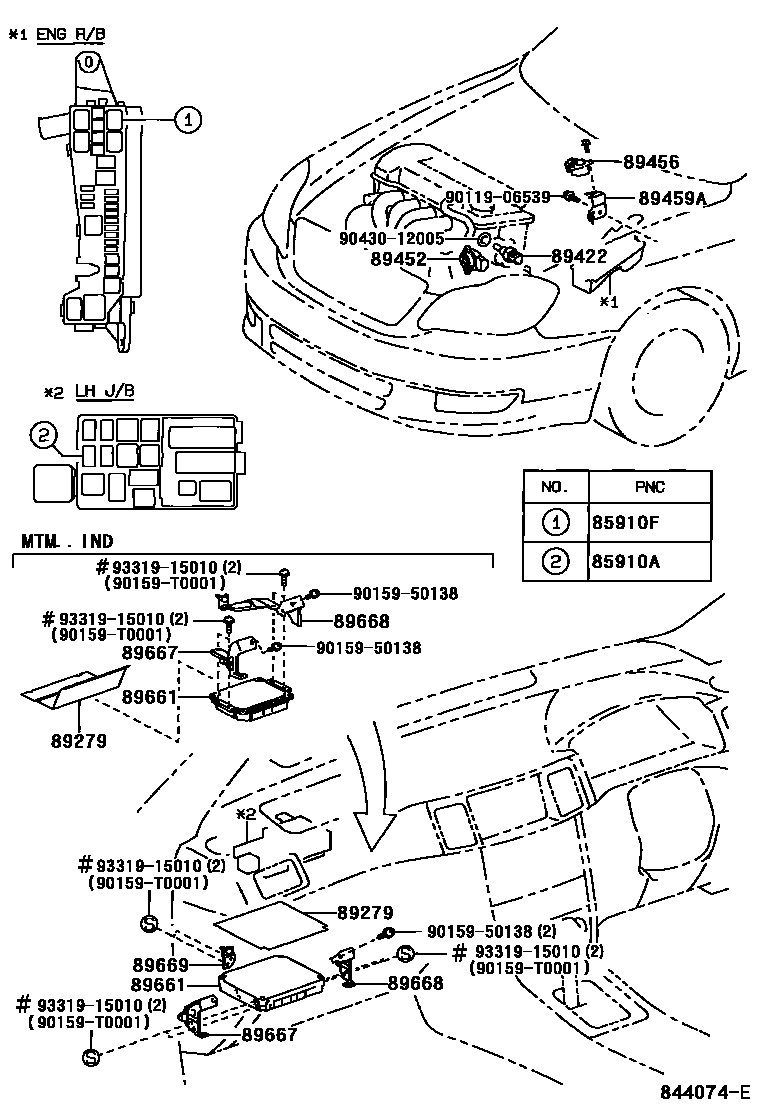

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
P/N LABEL=9008087008
P/N LABEL=9008087019
P/N LABEL=9008087027
85910FRELAY, COMPUTER (FOR EFI)
P/N LABEL=9008087008
P/N LABEL=9008087019
P/N LABEL=9008087027
89279COVER, ENGINE CONTROL COMPUTER
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
(L)
(J)
89456RESISTOR, VARIABLE
89459ABRACKET, VARIABLE RESISTOR
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
(L)
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
(L)
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
(L)
(J)
9011906539
main90119-06539
9015950138
main90159-50138
90159T0001
main90159-T0001
9043012005
main90430-12005
9331915010
main93319-15010
16 parts on this diagram · 2 diagrams in section
