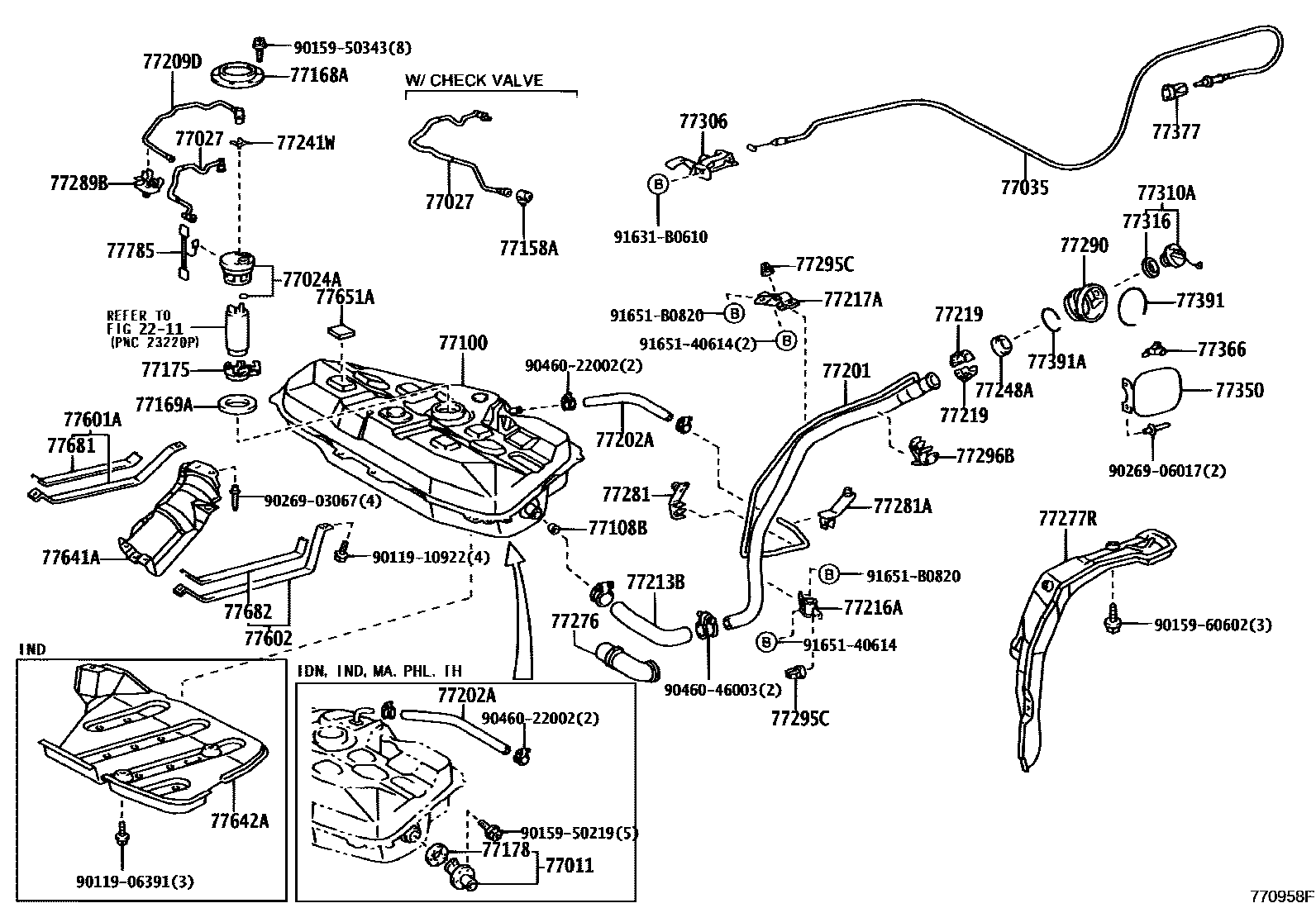

FUEL TANK & TUBE

0001 1FUEL TANK 0006 1FUEL TANK 0009 1FUEL TUBE 0010 1FUEL TUBE

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-02040iZZE12#..IDN,TH200311-200801

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02030iZZE122..MA,VN;ZZE121..ATM..MA200311

main77024-02070iZZE12#..TAIW200508-200712

main77024-12010iZZE122..IND200105-200508

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-12020iZZE12#..MA,PHL200105-200401

main77027-12030iZZE122..IDN200107-200311

main77027-12040iZZE122..MA,VN;ZZE121..ATM..MA200311

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02050iZZE12#..TH200109-200401

main77035-02060iNZE120,ZZE12#..LHD200103-200403

main77035-02130iZZE122..IND200301-200508

77100TANK ASSY, FUEL

main77001-02110iZZE12#..MA,PHL200105-200401

main77001-02160iZZE121..ATM..MA;ZZE122..IDN,MA,TH,VN;ZZE121..(16E,16J)..TH200311-200712

main77001-02280iZZE122..IND200508

main77001-02520iZZE122..VN200801

main77001-12830×4iNZE120,ZZE122..VN200103-200403

sub77001-12A60

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-12040×4iZZE121..16E..TAIW200103-200211

77158ASUPPORT, TANK SUCTION TUBE

main77158-12030×4iNZE120,ZZE122..VN200107-200403

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020×2iZZE12#..MA,PHL200105-200401

77175SUPPORT, FUEL SUCTION, NO.2

main77175-02020iZZE12#..TAIW200508-200712

main77175-0D010iZZE12#..IDN,TH200212-200311

main77175-47010iZZE122..IND200310

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-0A010iZZE12#..IDN,TH200105-200311

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-02100iZZE122..IDN200107-200311

main77201-02110iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13034iZZE12#..TAIW200310-200712

L=340

main95313-13046iZZE12#..IDN,TH200311-200801

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12160×2iZZE12#..IDN,TH200105-200311

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-32070iNZE120,ZZE12#..IDN,IND,MA,PHL,TAIW,VN200103-200412

main77213-32090iZZE122..IND200311

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-32060iZZE12#..MA,PHL200103-200401

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32050iZZE12#..IDN,TH200310-200801

77219COVER, FUEL TANK FILLER PIPE

main77219-20070×2iZZE121..16E..TAIW200103-200211

77241WCLIP, TUBE JOINT

main77241-06010iZZE12#..IDN,TH200311-200801

main77241-33011iZZE122..IND200105-200508

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iZZE12#..IDN,TH200103-200311

77276PROTECTOR, FUEL HOSE

main77276-12050iZZE121..16E..TAIW200103-200211

sub77276-12120

sub77276-12130

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12170iZZE121..16E..TAIW200103-200211

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-32040iZZE121..16E..TAIW200103-200211

77281ACLAMP, FUEL FILLER PIPE

main77281-12070iZZE121..16E..TAIW200103-200211

77289BCLAMP, FUEL TUBE, NO.3

main77289-12030×4iZZE12#..(16J,18E,18G)..TAIW200103-200310

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12150iNZE120,ZZE12#200103-200508

77295CGROMMET, FUEL TUBE

main77295-12070×2iZZE12#..MA,PHL200103-200401

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-12030iZZE121..16E..TAIW200103-200211

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-02040iZZE122..IND,MA;ZZE121..ATM..MA200311

main64606-12050iZZE122..VN200310

main64606-12060iZZE12#..IDN,MA200105-200203

77310ACAP ASSY, FUEL TANK

main77300-28010iZZE122..IND200412-200508

main77310-48010iZZE12#..TAIW200310-200712

77316GASKET, FUEL TANK CAP

main77316-16010iNZE120,ZZE12#200103-200508

77350LID ASSY, FUEL FILLER OPENING

main77350-12450iNZE120,ZZE12#200103-200508

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iNZE120,ZZE12#200103-200508

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iNZE120,ZZE12#200103-200508

77391RING, FUEL INLET BOX

main77391-02050iZZE12#..IDN,TH200311-200801

main77391-12040iNZE120,ZZE12#..IDN,MA,PHL,TH,VN200103-200203

77391ARING, FUEL INLET BOX

main77391-02020iZZE12#..IDN,TH200311-200801

main77391-12020iZZE12#..TAIW200310-200712

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-12230iZZE122..IND200606

main77601-12250iZZE122..IND200508-200606

77602CASE SUB-ASSY, FUEL TANK, UPPER

main77602-12180iZZE12#..MA,PHL200103-200401

main77602-12190iZZE122..IND200301-200508

77641APROTECTOR, FUEL TANK, NO.1

main77641-12160iNZE120,ZZE122..VN200103-200403

77642APROTECTOR, FUEL TANK, NO.2

main77642-12040iZZE122..IND200301-200508

sub77642-12041

77651ACUSHION, FUEL TANK, NO.1

main77651-02060×7iZZE12#..MA,PHL200303-200401

(L)

main77651-20090×7iZZE12#..IDN,TH200310-200801

77681SEAT, FUEL TANK BAND, RH

main77681-34030iZZE12#..IDN,TH200103-200311

77682SEAT, FUEL TANK BAND, LH

main77681-32060iZZE12#..IDN,TH200103-200311

77785HARNESS, FUEL PUMP

main77785-06030iZZE12#..TAIW200508-200712

sub77785-06270

main77785-52020iZZE12#..TAIW200310-200507

9011906391

main90119-06391

9011910922

main90119-10922

9015950219

main90159-50219

9015950343

main90159-50343

9015960602

main90159-60602

9026903067

main90269-03067

9026906017

main90269-06017

9046022002

main90460-22002

9046046003

main90460-46003

91631B0610

main91631-B0610

9165140614

main91651-40614

91651B0820

main91651-B0820

57 parts on this diagram · 4 diagrams in section
