E
EPC Data

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

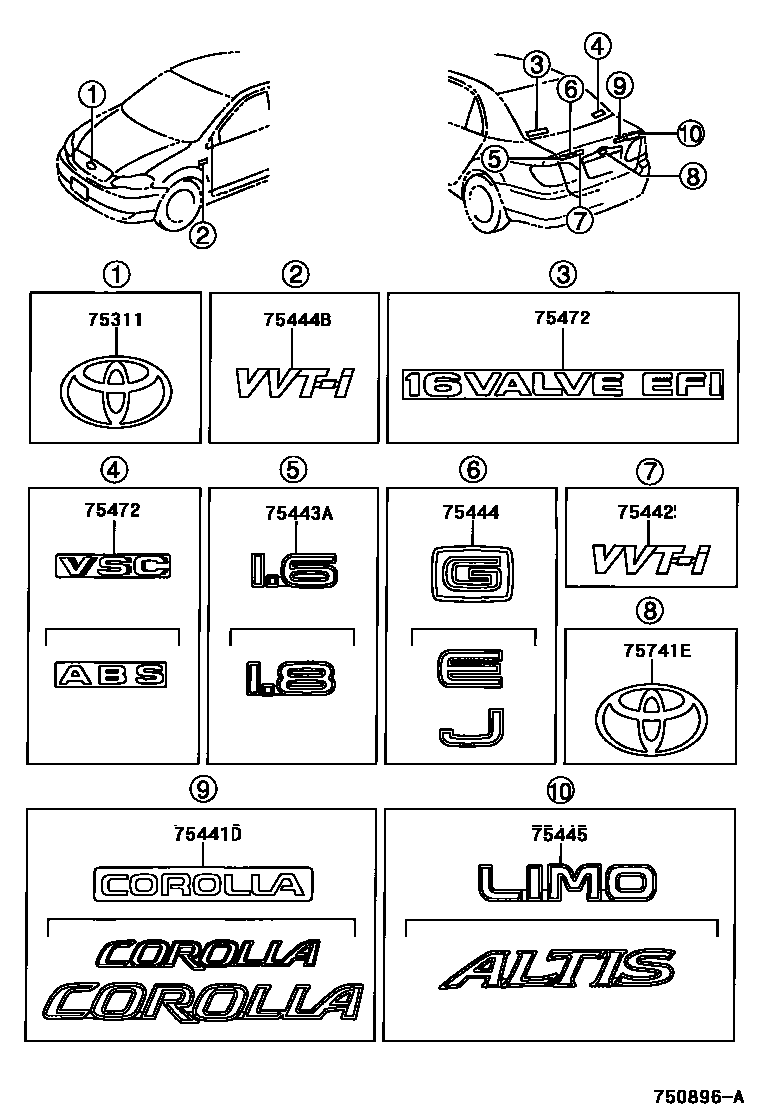

Parts diagram
75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
main75311-02090i200103-200310
main75311-02160i200605
75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
main75441-02020i200105-200109
COROLLA
main75441-02090i200301-200508
TOYOTA
main75442-02040i200103-200311
COROLLA
main75442-02041i200507-200801
COROLLA
main75442-02050i200105-200311
COROLLA
main75442-02130i200508
COROLLA
75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
main75444-02160i200105-200109
VVT-I
main75444-02161i200507-200801
VVT-I
75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3
main75443-1A790i200107-200211
1.6
sub75447-12070
main75443-1A791i200507-200712
1.6
main75443-1A810i200103-200508
1.8
sub75443-1A840
main75443-1A811i200507-200801
1.8
75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
main75444-02110i200211-200310
J
main75444-02111i200507-200802
J
main75444-02130i200310-200506
G
main75444-02131i200507-200802
G
main75444-02140i200103-200508
E
main75444-02141i200507-200802
E
75444BPLATE, FRONT FENDER
main75444-02160×2i200103-200211
VVT-I
main75444-02161×2i200507
VVT-I
75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5
main75444-02090i200103-200211
ALTIS
main75444-02091i200507
ALTIS
main75444-02120i200311-200801
LIMO
75472PLATE, REAR WINDOW NAME
main75485-12390i200310-200712
VSC
main75485-12420i200107-200403
16VALVE EFI
main75485-12430i200107-200401
ABS
75741EEMBLEM, SYMBOL
main90975-02009i200103-200310
main90975-02062i200603-200801

9 parts on this diagram · 2 diagrams in section
