REAR SEAT & SEAT TRACK

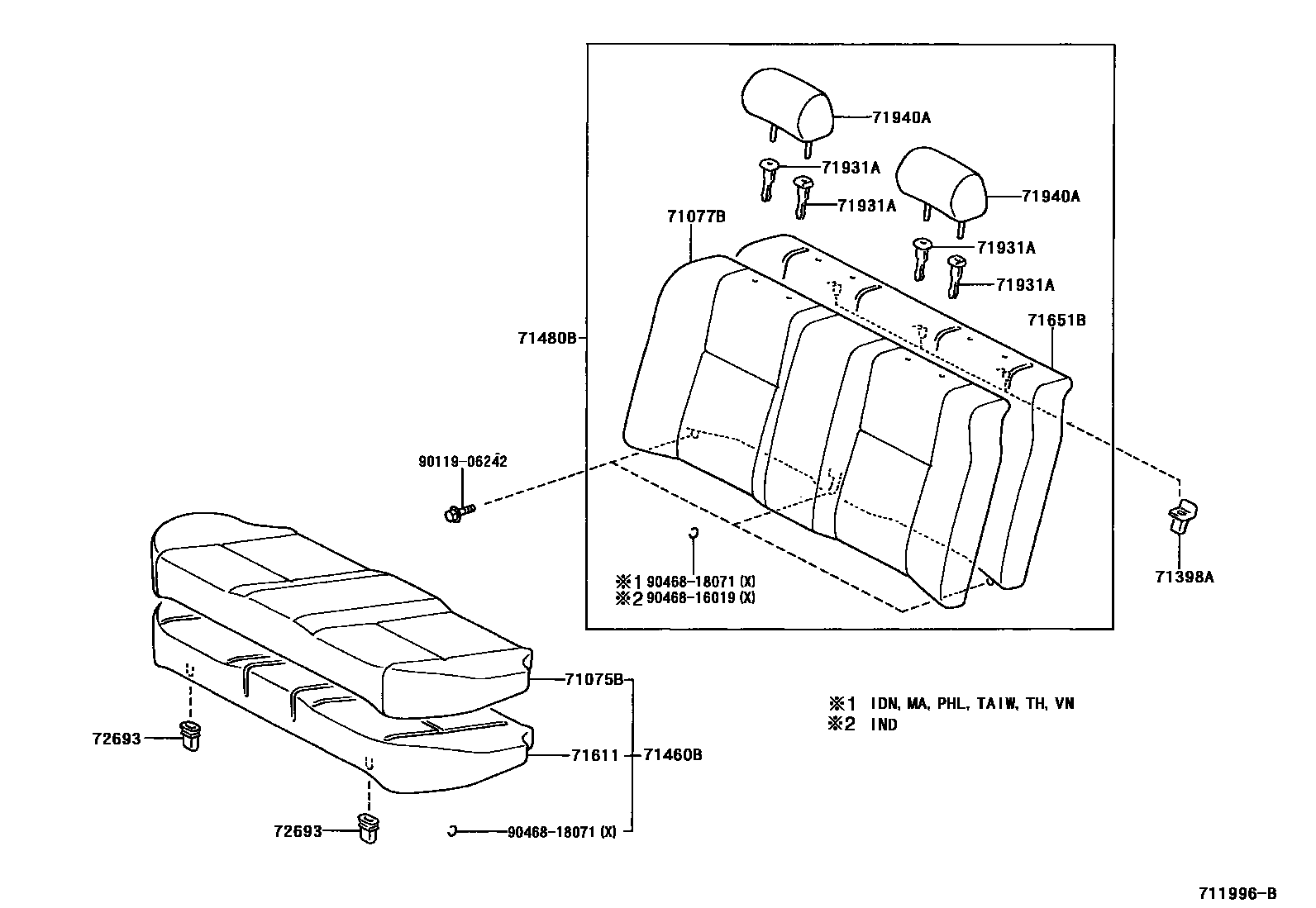

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-02200-B1i200105-200403
STONE,TRIM1#
sub71075-02200
main71075-02200-B2i200311-200508
MD.GRAY,TRIM1#
sub71075-02200
main71075-02200-B3i200508-200801
MD.GRAY,TRIM14
sub71075-02200
main71075-02210-A0i200107-200311
IVORY,TRIM0#
sub71075-02210
main71075-02210-B1i200211-200310
DARK GRAY,TRIM17
sub71075-02210
main71075-02210-B1i200103-200211
DARK GRAY,TRIM1#
sub71075-02210
main71075-02210-B2i200105-200403
STONE,TRIM1#
sub71075-02210
main71075-02210-B3i200107-200401
STONE,TRIM1#
sub71075-02210
main71075-02210-B4i200211-200310
STONE,TRIM17
sub71075-02210
main71075-02210-B5i200310-200508
MD.GRAY,TRIM1#
sub71075-02210
main71075-02210-B6i200508-200712
MD.GRAY,TRIM14
sub71075-02210
main71075-02220-A0i200105-200311
IVORY,TRIM0#
main71075-02220-A2i200107-200401
IVORY,TRIM0#
main71075-02230-A0i200105-200401
IVORY,TRIM0#
main71075-02230-B3i200107-200401
STONE,TRIM1#
main71075-02240-A0i200103-200306
IVORY,TRIM0#
sub71075-02240
main71075-02240-A1i200105-200311
IVORY,TRIM0#
sub71075-02240
main71075-02240-A1i200208-200311
LEATHER SEAT,IVORY,TRIM0#
sub71075-02240
main71075-02240-B1i200103-200401
STONE,TRIM1#
sub71075-02240
main71075-02240-B1i200103-200306
STONE,TRIM17
sub71075-02240
main71075-02240-B1i200211-200306
LEATHER SEAT,STONE,TRIM1#
sub71075-02240
main71075-02240-B2i200208-200311
LEATHER SEAT,DK.GRAY,TRIM1#
sub71075-02240
main71075-02240-D0i200411-200508
RED,TRIM1#
sub71075-02240
main71075-02240-D0i200103-200306
RED,TRIM18
sub71075-02240
main71075-02240-D1i200508-200712
RED,TRIM1#
sub71075-02240
main71075-02360-B0i200401-200508
MD.GRAY,TRIM1#
sub71075-02360
main71075-02360-B1i200508-200802
MD.GRAY,TRIM14
sub71075-02360
main71075-02450-A0i200508-200808
IVORY,TRIM0#
main71075-02460-A0i200508-200606
IVORY,TRIM0#
main71075-02460-A1i200606-200607
IVORY,TRIM0#
main71075-02461-A1i200607-200808
IVORY,TRIM0#
main71075-02480-A0i200311-200508
IVORY,TRIM0#
sub71075-02480
main71075-02480-A1i200508-200605
IVORY,TRIM05
sub71075-02480
main71075-02481-A2i200603-200801
IVORY,TRIM0#
main71075-02720-A0i200301-200508
IVORY,TRIM0#
main71075-02730-A0i200301-200508
IVORY,TRIM0#
main71075-02740-A0i200301-200508
LEATHER SEAT,IVORY,TRIM0#
main71075-02750-A0i200311-200508
IVORY,TRIM0#
sub71075-02750
main71075-02750-A2i200508-200801
IVORY,TRIM05
sub71075-02750
main71075-02750-A2i200603-200801
IVORY,TRIM0#
sub71075-02750
main71075-02760-B0i200311-200508
MD.GRAY,TRIM1#
sub71075-02760
main71075-02760-B2i200508-200605
MD.GRAY,TRIM14
sub71075-02760
main71075-02761-B3i200603-200808
MD.GRAY,TRIM1#
main71075-02770-A0i200508-200712
IVORY,TRIM05
sub71075-02770
main71075-02770-A0i200310-200508
LEATHER SEAT,IVORY,TRIM0#
sub71075-02770
main71075-02770-A1i200311-200508
LEATHER SEAT,IVORY,TRIM0#
sub71075-02770
main71075-02770-A4i200508-200712
LEATHER SEAT,IVORY,TRIM05
sub71075-02770
main71075-02770-A5i200603-200801
LEATHER SEAT,IVORY,TRIM0#
sub71075-02770
main71075-02770-A5i200508-200801
LEATHER SEAT,IVORY,TRIM05
sub71075-02770
main71075-02770-B0i200310-200603
LEATHER SEAT,MD.GRAY,TRIM1#
sub71075-02770
main71075-02770-B0i200508-200712
MD.GRAY,TRIM14
sub71075-02770
main71075-02770-B3i200508-200802
LEATHER SEAT,MD.GRAY,TRIM14
sub71075-02770
main71075-02780-B0i200401-200508
MD.GRAY,TRIM1#
sub71075-02780
main71075-02780-B1i200508-200802
MD.GRAY,TRIM14
sub71075-02780
main71075-02C80-A0i200508-200808
LEATHER SEAT,IVORY,TRIM0#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-02240-B1i200105-200403
STONE,TRIM1#
main71077-02240-B2i200311-200801
MD.GRAY,TRIM1#
main71077-02250-B1i200103-200211
DARK GRAY,TRIM1#
main71077-02250-B2i200105-200311
STONE,TRIM1#
main71077-02250-B3i200107-200401
STONE,TRIM1#
main71077-02250-B4i200211-200310
STONE,TRIM17
main71077-02250-B5i200310-200712
MD.GRAY,TRIM1#
main71077-02410-A0i200105-200311
IVORY,TRIM0#
main71077-02440-A0i200508-200808
IVORY,TRIM0#
main71077-02590-B0i200311-200603
MD.GRAY,TRIM1#
main71077-02591-B2i200603-200801
MD.GRAY,TRIM1#
main71077-02810-A0i200301-200508
IVORY,TRIM0#
main71077-02840-A0i200311-200603
IVORY,TRIM0#
main71077-02841-A1i200603-200801
IVORY,TRIM0#
main71077-02890-B0i200401-200802
MD.GRAY,TRIM1#
71398AHOLDER, REAR SEATBACK
main71398-02040i200109-200802
(L)
main71398-33010i200310-200605
(J)
main71398-33010-C0i200103-200802
BLACK,(J)
sub71398-33010
main71398-33010-C0i200302-200508
BLACK
sub71398-33010
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-02240-A0i200107-200311
IVORY,TRIM0#
main71460-02240-B1i200107-200401
STONE,TRIM1#
main71460-02240-B2i200103-200211
STONE,TRIM1#
main71460-02240-B3i200105-200403
STONE,TRIM1#
main71460-02240-B4i200211-200310
STONE,TRIM17
main71460-02240-B5i200310-200411
***,GRAY,TRIM1#
main71460-02260-B1i200105-200403
STONE,TRIM1#
main71460-02260-B2i200311-200411
***,GRAY,TRIM1#
main71460-02330-A1i200105-200401
IVORY,TRIM0#
main71460-02330-B3i200107-200401
STONE,TRIM1#
main71460-02340-A0i200103-200310
IVORY,TRIM0#
main71460-02340-A1i200208-200311
LEATHER SEAT,IVORY,TRIM0#
main71460-02340-A1i200105-200311
IVORY,TRIM0#
main71460-02340-B1i200103-200401
STONE,TRIM1#
main71460-02340-B1i200211-200310
LEATHER SEAT,STONE,TRIM1#
main71460-02340-B1i200211-200310
STONE,TRIM17
main71460-02340-B2i200211-200310
DK.GRAY,TRIM18
main71460-02340-B3i200208-200311
LEATHER SEAT,DK.GRAY,TRIM1#
main71460-02360-A1i200105-200311
IVORY,TRIM0#
main71460-02360-A2i200107-200401
IVORY,TRIM0#
main71460-02710-A0i200301-200508
IVORY,TRIM0#
main71460-02720-A0i200301-200508
IVORY,TRIM0#
main71460-02730-A0i200301-200508
LEATHER SEAT,IVORY,TRIM0#
main71460-02730-A0i200311-200508
***,LEATHER SEAT,IVORY,TRIM0#
main71460-02760-A0i200311-200411
***,IVORY,TRIM0#
main71460-02770-B0i200311-200411
***,GRAY,TRIM1#
main71460-02780-A0i200310-200411
***,LEATHER SEAT,IVORY,TRIM0#
main71460-02780-A1i200311-200411
***,LEATHER SEAT,IVORY,TRIM0#
main71460-02780-B0i200310-200411
***,LEATHER SEAT,GRAY,TRIM1#
main71460-02790-A0i200311-200411
***,IVORY,TRIM0#
main71460-02800-B0i200401-200411
***,GRAY,TRIM1#
main71460-02810-B0i200401-200411
***,GRAY,TRIM1#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-02270-B1i200107-200401
STONE,TRIM1#
main71480-02270-B3i200105-200311
STONE,TRIM1#
main71480-02290-B1i200105-200403
STONE,TRIM1#
main71480-02290-B2i200311-200411
***,GRAY,TRIM1#
main71480-02410-A0i200105-200311
IVORY,TRIM0#
main71480-02420-B0i200103-200211
STONE,TRIM1#
main71480-02420-B1i200211-200310
STONE,TRIM17
main71480-02420-B2i200310-200411
***,GRAY,TRIM1#
main71480-02820-A0i200301-200508
IVORY,TRIM0#
main71480-02A30-B0i200311-200411
***,GRAY,TRIM1#
main71480-02A40-A0i200311-200411
***,IVORY,TRIM0#
main71480-02A90-B0i200401-200411
***,GRAY,TRIM1#
71611PAD, REAR SEAT CUSHION
main71503-02060i200103-200802
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-02060i200103-200802
main71507-02110i200301-200808
71931ASUPPORT, REAR SEAT HEADREST
main71930-20130-A0i200103-200801
W(LOCK),THAILAND SPEC,IVORY,TRIM0#
main71930-20130-A0i200310-200801
W(LOCK),IVORY,TRIM0#
main71930-20130-B2i200103-200403
W(LOCK),THAILAND SPEC,STONE,TRIM1#
main71930-20130-B2i200303-200306
W(LOCK),THAILAND SPEC,STONE,TRIM17
main71930-20130-B3i200310-200603
W(LOCK),DK.GRAY,TRIM1#
main71930-20130-B3i200310-200712
W(LOCK),DK.GRAY,TRIM14,15
main71930-20130-B3i200303-200306
W(LOCK),THAILAND SPEC,DK.GRAY,TRIM18
main71930-20130-B3i200303-200802
W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#
main71931-12040-A5i200103-200801
W/O(LOCK),THAILAND SPEC,IVORY,TRIM0#
sub71931-12040
sub71931-10020
main71931-12040-A5i200709
W/O(LOCK),IVORY,TRIM0#
sub71931-12040
sub71931-10020
main71931-12040-S5i200103-200403
W/O(LOCK),THAILAND SPEC,STONE,TRIM1#
sub71931-12040
sub71931-10020
main71931-12040-S7i200211-200802
W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#
sub71931-12040
sub71931-10020
main71931-12040-S7i200310
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-12040
sub71931-10020
main71956-47010-A0i200103-200801
W/O(LOCK),TAIWAN SPEC,IVORY,TRIM0#
sub71956-02040
sub71956-47010
main71956-47010-A0i200508-200808
W/O(LOCK),IVORY,TRIM0#
sub71956-02040
sub71956-47010
main71956-47010-B1i200103-200403
W/O(LOCK),TAIWAN SPEC,STONE,TRIM1#
sub71956-02040
sub71956-47010
main71956-47010-B2i200211-200808
W/O(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#
sub71956-02040
sub71956-47010
main71956-47010-B2i200310-200712
W/O(LOCK),DK.GRAY,TRIM14,15
sub71956-02040
sub71956-47010
main71956-47010-B2i200310-200603
W/O(LOCK),DK.GRAY,TRIM1#
sub71956-02040
sub71956-47010
main71970-47010-A0i200103-200801
W(LOCK),TAIWAN SPEC,IVORY,TRIM0#
sub71970-02040
sub71970-47010
main71970-47010-A0i200310-200801
W(LOCK),IVORY,TRIM0#,TAIWAN SPEC
sub71970-02040
sub71970-47010
main71970-47010-A0i200508-200808
W(LOCK),IVORY,TRIM0#
sub71970-02040
sub71970-47010
main71970-47010-B1i200103-200403
W(LOCK),TAIWAN SPEC,STONE,TRIM1#
sub71970-02040
sub71970-47010
main71970-47010-B2i200211-200802
W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#
sub71970-02040
sub71970-47010
71940AHEADREST ASSY, REAR SEAT
main71940-02090-B1i200105-200403
STONE,TRIM1#
main71940-02090-B2i200311-200801
MD.GRAY,TRIM1#
main71940-02100-A0i200107-200311
IVORY,TRIM0#
main71940-02100-B2i200105-200403
STONE,TRIM1#
main71940-02100-B3i200107-200401
STONE,TRIM1#
main71940-02110-A0i200105-200311
IVORY,TRIM0#
main71940-02110-A2i200107-200401
IVORY,TRIM0#
main71940-02120-A0i200105-200401
IVORY,TRIM0#
main71940-02120-B3i200107-200401
STONE,TRIM1#
main71940-02130-A2i200211-200306
IVORY,TRIM0#
main71940-02130-A2i200103-200211
IVORY,TRIM03
main71940-02130-A2i200310-200712
LEATHER SEAT,IVORY,TRIM0#
main71940-02130-A3i200105-200311
IVORY,TRIM03
main71940-02130-A3i200311-200801
LEATHER SEAT,IVORY,TRIM0#
main71940-02130-B2i200103-200306
STONE,TRIM17
main71940-02130-B2i200211-200401
LEATHER SEAT,STONE,TRIM1#
main71940-02130-B2i200211-200306
STONE,TRIM1#
main71940-02130-B3i200411-200712
DK.GRAY,TRIM15
main71940-02130-B3i200103-200306
DK.GRAY,TRIM18
main71940-02130-B4i200208-200311
LEATHER SEAT,DK.GRAY,TRIM1#
main71940-02130-B5i200310-200802
LEATHER SEAT,MD.GRAY,TRIM1#
main71940-02130-B5i200411-200712
MD.GRAY,TRIM14
main71940-02240-B0i200211-200310
DARK GRAY,TRIM17
main71940-02240-B0i200103-200211
DARK GRAY,TRIM1#
main71940-02240-B1i200211-200310
STONE,TRIM17
main71940-02240-B2i200310-200712
MD.GRAY,TRIM1#
main71940-02340-A0i200508-200808
IVORY,TRIM0#
main71940-02350-A0i200508-200606
IVORY,TRIM0#
main71940-02350-A1i200606-200808
IVORY,TRIM0#
main71940-02540-A1i200301-200508
IVORY,TRIM0#
main71940-02550-A0i200301-200508
IVORY,TRIM0#
main71940-02560-A1i200301-200808
LEATHER SEAT,IVORY,TRIM0#
main71940-02570-B0i200311-200605
MD.GRAY,TRIM1#
main71940-02571-B0i200603-200808
MD.GRAY,TRIM1#
main71940-02580-A0i200311-200605
IVORY,TRIM0#
main71940-02581i200709-200801
main71940-02581-A1i200603-200801
IVORY,TRIM0#
main71940-02590-A0i200311-200801
IVORY,TRIM0#
main71940-02600-B0i200401-200802
MD.GRAY,TRIM1#
main71940-02610-B0i200401-200802
MD.GRAY,TRIM1#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-02020i200109-200802
(L)
main72693-02020i200508
main72693-12080i200109-200802
(J)
9011906242
main90119-06242
9046816019
main90468-16019
9046818071
main90468-18071

13 parts on this diagram · 2 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
