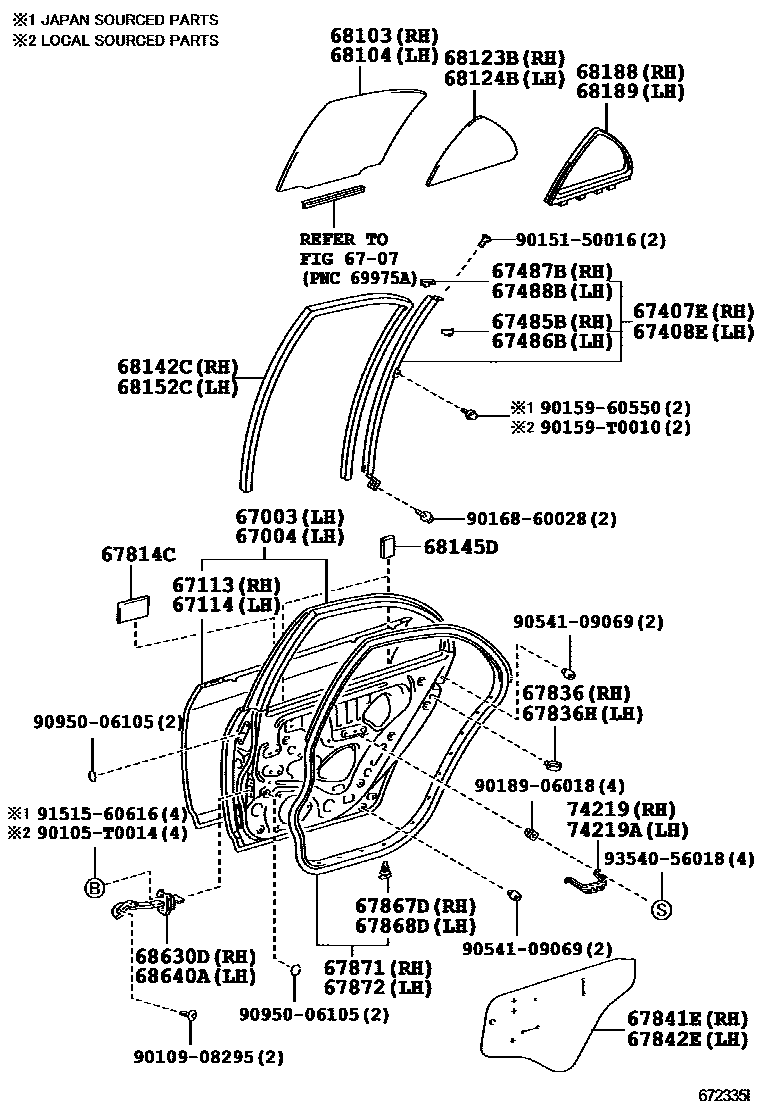

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12860iNZE120200107-200403

main67003-12870iZZE12#..TAIW,VN200103-200712

main67003-1A010iZZE12#..(16E,16G,16J,18E,18G,18J)..(IDN,IND,MA,PHL,TH)200105-200802

main67003-1A020iZZE121..16200105-200801

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12860iNZE120200107-200403

main67004-12870iZZE12#..TAIW200103-200712

main67004-12890iZZE12#..(16E,16J,18E,18G,18J)..(IDN,TH)200105-200802

main67004-1A010iZZE121..16200105-200801

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-12270iNZE120,ZZE12#200103-200802

67114PANEL, REAR DOOR, OUTER LH

main67114-12270iZZE12#..IDN,TH200103-200802

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12260iNZE120,ZZE12#200103-200802

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12260iNZE120,ZZE12#200103-200802

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-53010iNZE120,ZZE12#200103-200508

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-53010iNZE120,ZZE12#200103-200508

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-53010iNZE120,ZZE12#200103-200508

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-53010iNZE120,ZZE12#200103-200508

67814CPACKING, DOOR PROTECTOR

main67817-47010iZZE12#..IDN,TH200103-200802

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02030iNZE120,ZZE121..16,J200109-200801

(L)

main67836-12040iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200103-200802

(J)

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02030iZZE12#..(16E,16G,16J,18E,18G,18J)..(IDN,MA,PHL,TH,VN)200109-200801

(L)

main67836-12040iZZE122..MA,VN;ZZE121..ATM..MA200103-200802

(J)

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02060iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200103-200802

main67841-02140iZZE122..IND200301-200508

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02040iZZE12#..TAIW200103-200802

main67842-02110iZZE122..IND200301-200508

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iZZE121..ATM..MA;ZZE122..IND,MA,VN200103-200802

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNZE120,ZZE12#200103-200802

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02050iZZE12#..PHL200103-200802

main67871-02130iZZE12#..IDN,MA,PHL,TH,VN200408-200412

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02050iNZE120,ZZE12#200103-200802

main67872-02130iZZE12#..IDN,MA,PHL,TH,VN200408-200412

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-02060iZZE122..IDN200103-200801

*TT,T=3.1,GREEN

sub68113-02061

main68113-12680iZZE12#..TH200105-200802

*TT,T=3.1,GREEN

sub68113-02060

sub68113-12720

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-02060iZZE122..MA,VN;ZZE121..ATM..MA200103-200801

*TT,T=3.1,GREEN

main68114-12680iZZE122..IND200105-200802

*TT,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02050iNZE120,ZZE12#..IDN,MA,TAIW,VN200103-200801

*TT,T=3.1,GREEN

sub68123-02051

main68123-12720iZZE12#..TH200105-200802

*TT,T=3.1,GREEN

sub68123-12721

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02050iNZE120,ZZE12#..IDN,MA,TAIW,VN200103-200801

*TT,T=3.1,GREEN

sub68124-02051

main68124-12720iZZE12#..IND,PHL,TH200105-200802

*TT,T=3.1,GREEN

sub68124-02050

sub68124-12760

68142CRUN, REAR DOOR GLASS, RH

main68142-02050iZZE12#..IDN,TH200103-200802

68145DCUSHION, REAR DOOR WINDOW

main69759-0K030iZZE12#..IDN,TH200510-200801

main69759-12110iZZE121..ATM..MA;ZZE122..IND,MA,VN200103-200802

68152CRUN, REAR DOOR GLASS, LH

main68152-02050iNZE120,ZZE12#200103-200802

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02060iZZE122..IDN200205-200801

main68188-12280iNZE120,ZZE12#..MA,PHL,TAIW,VN200103-200802

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02060iZZE12#..IDN,TH200205-200801

main68189-12280iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200103-200802

68630DCHECK ASSY, REAR DOOR, RH

main68630-02050iZZE12#..TAIW200103-200712

main68630-02080iZZE12#..IND,TH200204-200801

(L)

main68630-02110iZZE122..IND200508

main68630-12070iZZE12#..TH200105-200403

sub68630-12071

main68630-12070iZZE12#..IND,TH200204-200405

(J)

sub68630-12071

main68630-12071iZZE12#..IDN,TH200405-200802

(J)

68640ACHECK ASSY, REAR DOOR, LH

main68640-02050iZZE12#..TAIW200103-200712

main68640-02080iZZE12#..IND,TH200204-200801

(L)

sub68630-02080

main68640-02110iZZE122..IND200508

main68640-12040iNZE120,ZZE12#..PHL,VN200105-200403

sub68640-12041

main68640-12040iZZE121..TH;ZZE121..MTM..PHL;ZZE122..IDN,MA,PHL,TH,VN;ZZE121..ATM..16E..(MA,PHL)200204-200405

(J)

sub68640-12041

main68640-12041iZZE12#..IDN,TH200405-200802

(J)

74219REINFORCEMENT, DOOR ARMREST, REAR RH

main74219-02010iZZE12#..MA,PHL200103-200802

74219AREINFORCEMENT, DOOR ARMREST, REAR LH

main74219-02010iZZE121..16E..TAIW200103-200802

90105T0014

main90105-T0014

9010908295

main90109-08295

9015150016

main90151-50016

9015960550

main90159-60550

90159T0010

main90159-T0010

9016860028

main90168-60028

9018906018

main90189-06018

9054109069

main90541-09069

9095006105

main90950-06105

9151560616

main91515-60616

9354056018

main93540-56018

44 parts on this diagram · 2 diagrams in section
