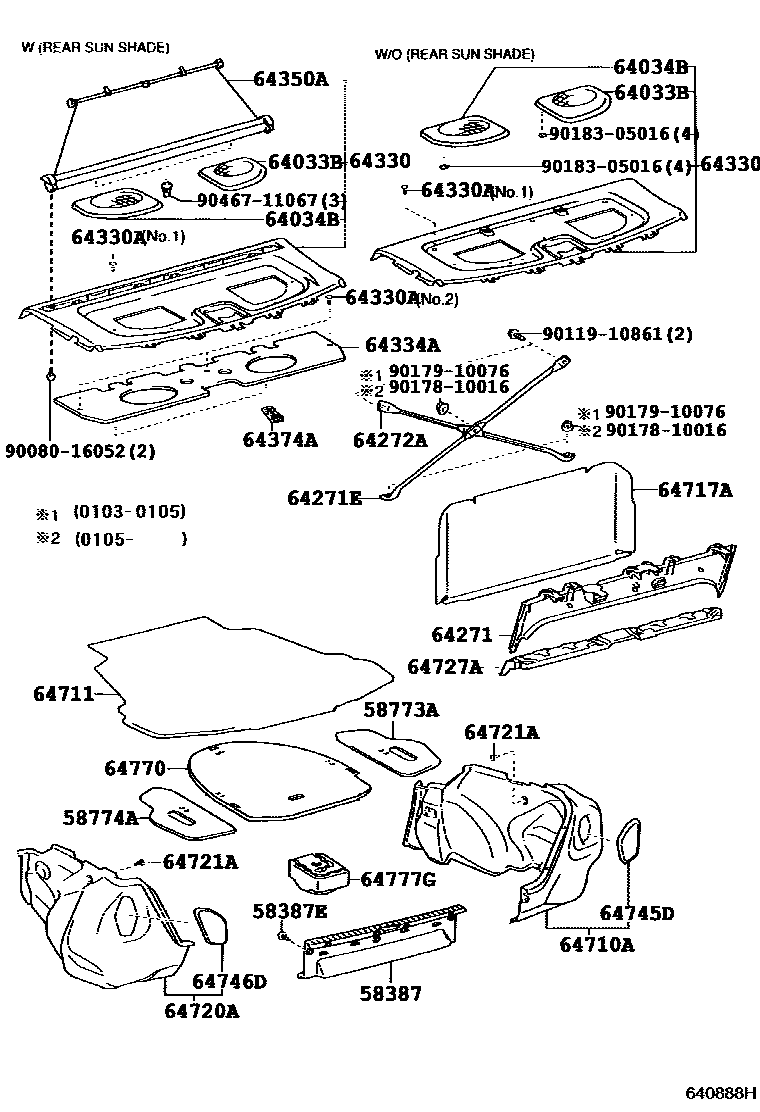

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02030-B0iZZE122..18E..TH;ZZE12#..(16E,18G)..TAIW200103-200311

DK.GRAY,TRIM0#,1#

main58387-02030-B0iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200103-200802

DK.GRAY,TRIM1#

main58387-02030-B0iZZE122..18G..TH;ZZE121..RHD..16E;ZZE122..IDN,IND,MA200105-200801

DK.GRAY,TRIM0#

main58387-02030-B0iZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM0#,17,18

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iZZE121..TAIW200103-200712

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200103-200802

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE12#..RHD..(16E,18E,18G,18J)200105-200801

BLACK,TRIM0#

sub90467-05096

main90467-05096-22iZZE122..IND200508

BLACK

sub90467-05096

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58703-02030iZZE12#..IDN,TH200103-200802

main58703-02040iZZE122..IND200301-200508

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58704-02010iNZE120,ZZE12#..IDN,PHL,TAIW,TH,VN200103-200802

main58704-02030iZZE122..IND200301-200508

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-02040-A0iZZE122..18G..TH200103-200411

W(SUN SHADE),IVORY,TRIM0#

sub64383-02041

sub64383-02040

main64383-02040-A0iZZE122..18E..TH;ZZE121..16E..TAIW200103-200311

IVORY,TRIM0#

sub64383-02041

sub64383-02040

main64383-02040-B0iZZE122..18E..TAIW200103-200310

STONE,TRIM1#

sub64383-02041

sub64383-02040

main64383-02040-B0iZZE122..18E..TAIW200211-200310

W(SUN SHADE),STONE,TRIM17

sub64383-02041

sub64383-02040

main64383-02040-B1iZZE122..18E..TAIW200310-200411

W(SUN SHADE),DK.GRAY,TRIM1#

sub64383-02041

sub64383-02040

main64383-02040-B1iZZE122..18E..TH200211-200412

DK.GRAY,TRIM1#

sub64383-02041

sub64383-02040

main64383-02040-B1iZZE122..18E..TAIW200310-200411

DK.GRAY,TRIM14,15

sub64383-02041

sub64383-02040

main64383-02040-B1iZZE122..18E..TAIW200211-200310

W(SUN SHADE),DK.GRAY,TRIM18

sub64383-02041

sub64383-02040

main64383-02041-A0iZZE122..TAIW200412-200801

W(SUN SHADE),IVORY,TRIM0#

main64383-02041-B1iZZE122..VN200412-200802

W(SUN SHADE),DK.GRAY,TRIM1#

main64383-02041-B1iZZE122..18E..TAIW200412-200712

DK.GRAY,TRIM14,15

main64383-52010-A0iZZE122..18E..TAIW200105-200801

IVORY,TRIM0#

sub64383-52010

main64383-52010-B1iZZE121..16G,16J;ZZE12#..(16E,18G)..(PHL,VN)200103-200403

STONE,TRIM1#

sub64383-52010

main64383-52010-B1iZZE122..18E..TAIW200211-200310

STONE,TRIM17

sub64383-52010

main64383-52010-B2iZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL)200310-200802

DK.GRAY,TRIM1#

sub64383-52010

main64383-52010-B2iZZE122..18E..TAIW200211-200310

DK.GRAY,TRIM18

sub64383-52010

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-02030-A0iZZE122..TAIW200103-200411

W(SUN SHADE),IVORY,TRIM0#

sub64384-02031

sub64384-02030

main64384-02030-A0iZZE122..18E..TH;ZZE121..16E..TAIW200103-200311

IVORY,TRIM0#

sub64384-02031

sub64384-02030

main64384-02030-B0iZZE122..18E..TAIW200103-200310

STONE,TRIM1#

sub64384-02031

sub64384-02030

main64384-02030-B0iZZE122..18E..TAIW200211-200310

W(SUN SHADE),STONE,TRIM17

sub64384-02031

sub64384-02030

main64384-02030-B1iZZE122..18E..TAIW200310-200411

DK.GRAY,TRIM14,15

sub64384-02031

sub64384-02030

main64384-02030-B1iZZE122..18E..TH200211-200412

DK.GRAY,TRIM1#

sub64384-02031

sub64384-02030

main64384-02030-B1iZZE122..18E..TAIW200211-200310

W(SUN SHADE),DK.GRAY,TRIM18

sub64384-02031

sub64384-02030

main64384-02031-A0iZZE122..(18E,18G)..IND200412-200801

W(SUN SHADE),IVORY,TRIM0#

main64384-02031-B1iZZE121..ATM..PHL200412-200802

W(SUN SHADE),DK.GRAY,TRIM1#

main64384-02031-B1iZZE122..18E..TAIW200412-200712

DK.GRAY,TRIM14,15

main64384-52010-A0iZZE122..18E..TAIW200105-200801

IVORY,TRIM0#

sub64384-52010

main64384-52010-B1iZZE121..16G,16J;ZZE12#..(16E,18G)..(PHL,VN)200103-200403

STONE,TRIM1#

sub64384-52010

main64384-52010-B1iZZE122..18E..TAIW200211-200310

STONE,TRIM17

sub64384-52010

main64384-52010-B2iZZE122..18E..TAIW200211-200310

DK.GRAY,TRIM18

sub64384-52010

main64384-52010-B2iZZE121..16J..TH200310-200802

DK.GRAY,TRIM1#

sub64384-52010

64271BOARD, ROOM PARTITION, NO.1

main64271-02050-C1iZZE122..18E..TAIW200103-200310

BLACK,TRIM0#,17,18

sub64271-02050

main64271-02050-C1iZZE122..18E..TH;ZZE12#..(16E,18G)..TAIW200103-200712

BLACK,TRIM0#,1#

sub64271-02050

main64271-02050-C1iZZE12#..(16E,16G,18G)..(PHL,VN)200107-200802

BLACK,TRIM1#

sub64271-02050

main64271-02050-C1iZZE122..18G..TH;ZZE122..18J..IDN;ZZE12#..(16E,18E,18G)..(IDN,IND,MA)200105-200801

BLACK,TRIM0#

sub64271-02050

64271EPANEL, ROOM PARTITION

main64241-12030iZZE121..LHD..16J;NZE120,ZZE12#..(16,16E,16J,18J,J)..(IND,TH,VN)200103-200802

64272APANEL, ROOM PARTITION, LH

main64242-12020iZZE121..16J200103-200105

sub64242-12021

main64242-12021iZZE121..LHD..16J;NZE120,ZZE12#..(16,16E,16J,18J,J)..(IND,TH,VN)200105-200802

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02160-B1iZZE121..16200107-200403

STONE,TRIM1#

main64330-02200-A0iZZE122..18E..TAIW200105-200801

IVORY,TRIM0#

main64330-02200-B0iZZE121..TAIW200310-200802

DARK GRAY,TRIM1#

main64330-02200-B1iZZE122..18E..TAIW200103-200403

STONE,TRIM1#

main64330-02210-A0iZZE122..TAIW,TH;ZZE121..16E..TAIW200103-200310

W(SUN SHADE),IVORY,TRIM0#

sub64330-02211

main64330-02210-B0iZZE122..18E..TAIW200211-200310

W(HIGH MOUNT STOP LAMP & SUN SHADE),DARK GRAY,TRIM1#

sub64330-02211

main64330-02210-B1iZZE122..18E..TAIW200103-200310

STONE,TRIM1#

sub64330-02211

main64330-02210-B1iZZE122..18E..TAIW200211-200310

STONE,TRIM17

sub64330-02211

main64330-02211-A0iZZE122..TAIW,TH200310-200411

W(SUN SHADE),IVORY,TRIM0#

sub64330-02212

main64330-02211-B0iZZE122..18E..TAIW200310-200411

DARK GRAY,TRIM14,15

sub64330-02212

main64330-02212-A0iZZE122..(18E,18G)..IND200412-200801

W(SUN SHADE),IVORY,TRIM0#

sub64330-02213

main64330-02212-B0iZZE122..18E..TAIW200412-200712

DARK GRAY,TRIM14,15

sub64330-02213

main64330-02212-B0iZZE122..VN200412-200802

W(SUN SHADE),DARK GRAY,TRIM1#

sub64330-02213

main64330-02290-B0iZZE122..18E..TH200211-200307

W(SUN SHADE),DARK GRAY,TRIM1#

sub64330-02291

main64330-02291-B0iZZE122..18E..TAIW200411-200412

DARK GRAY,TRIM1#

sub64330-02292

main64330-02291-B0iZZE122..18E..TH200307-200311

W(SUN SHADE),DARK GRAY,TRIM1#

sub64330-02292

main64330-02292-B0iZZE122..18E..TAIW200412-200712

L&S PACKAGE,DARK GRAY,TRIM1#

main64330-02300-B0iZZE121..16200202-200311

STONE,TRIM1#

main64330-02300-B1iZZE121..16200311-200801

DARK GRAY,TRIM1#

main64330-02340-B0iZZE122..18E..TAIW200211-200310

DARK GRAY,TRIM1#

main64330-02410-A0iZZE122..IND200301-200508

IVORY,TRIM0#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06061-A0iZZE121..MA200103-200801

IVORY,TRIM0#,NO.2:REFER ILLUST.

sub90467-06061

sub90467-06020

main90467-06061-A0iZZE122..TH200310-200801

IVORY,TRIM0#

sub90467-06061

sub90467-06020

main90467-06061-A0iZZE122..18E..TAIW200603-200801

W(FOLDING REAR SEAT),IVORY,TRIM0#,NO.2:REFER ILLUST.

sub90467-06061

sub90467-06020

main90467-06061-B1iZZE12#..(16E,18G)..TAIW200103-200310

W(FIXED TYPE REAR SEAT),STONE,TRIM1#,NO.2

sub90467-06061

sub90467-06020

main90467-06061-B1iZZE122..18E..TAIW200103-200403

STONE,TRIM1#,NO.2:REFER ILLUST.

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE122..18E..TAIW200211-200802

DK.GRAY,TRIM1#,NO.2:REFER ILLUST.

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE121..TAIW200310-200603

W(FOLDING REAR SEAT),DK.GRAY,TRIM1#,NO.2:REFER ILLUST.

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE121..16200311-200801

DK.GRAY,TRIM1#,NO.2

sub90467-06061

sub90467-06020

main90467-06061-B2iZZE121..ATM..PHL200605-200802

DK.GRAY,TRIM1#

sub90467-06061

sub90467-06020

main90467-08104-A4iZZE122..18E..TAIW200105-200801

IVORY,TRIM0#,NO.1:REFER ILLUST.

sub90467-08104

main90467-08104-A4iZZE122..18E..TAIW200211-200310

W(HIGH MOUNT STOP LAMP),IVORY,TRIM0#,NO.1

sub90467-08104

main90467-08104-B0iZZE121..16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200103-200403

STONE,TRIM1#,NO.1:REFER ILLUST.

sub90467-08104

main90467-08104-B0iZZE122..18E..TAIW200212-200310

W(HIGH MOUNT STOP LAMP),STONE,TRIM17,NO.1

sub90467-08104

main90467-08104-B2iZZE122..18E..TAIW200212-200310

W(HIGH MOUNT STOP LAMP),DK.GRAY,TRIM18,NO.1

sub90467-08104

main90467-08104-B2iZZE121..16200311-200801

DK.GRAY,TRIM1#,NO.1

sub90467-08104

main90467-08104-B2iZZE122..18E..TAIW200211-200802

DK.GRAY,TRIM1#,NO.1:REFER ILLUST.

sub90467-08104

64334APAD, PACKAGE TRAY TRIM

main64334-02010iZZE122..IND200301-200508

main64334-02030iZZE122..18E..TAIW200211-200712

W/O(SUN SHADE)

main64334-02030iZZE12#..(16J,18E)..TAIW;ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL,VN)200308-200403

(L)

main64334-02040iNZE120200107-200801

main64334-02050iZZE12#..TAIW200103-200211

sub64334-02030

main64334-02080iZZE122..IDN;ZZE122..18E..TH200310-200802

W(SUN SHADE)

main64334-02080iZZE12#..(16J,18E)..TAIW200105-200802

main64334-02080iZZE12#..(16J,18E)..TAIW;ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL,VN)200308-200403

(J)

64350ASHADE ASSY, REAR WINDOW

main64350-02010iZZE122..PHL200103-200802

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-12020iZZE121..LHD..16J;NZE120,ZZE12#..(16E,16J,18J,J)..(IND,TH,VN)200103-200802

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02010-C0iZZE122..18E..TH200211-200307

BLACK,TRIM0#,1#

sub64710-02011

main64710-02010-C0iZZE122..18E..TH200105-200307

BLACK,TRIM0#

sub64710-02011

main64710-02011-C0iZZE122..VN200307-200802

BLACK,TRIM1#

main64710-02011-C0iZZE12#..(16E,18G,18J)..(IDN,MA,TH)200307-200801

BLACK,TRIM0#

main64710-02011-C0iZZE122..18E..TH200307-200311

BLACK,TRIM0#,1#

main64710-02030-C0iZZE122..18E..TAIW200211-200307

BLACK,TRIM0#,17,18

sub64710-02031

main64710-02030-C0iZZE122..18E..TAIW200103-200307

BLACK,TRIM0#,1#

sub64710-02031

main64710-02031-C0iZZE122..18E..TAIW200307-200712

BLACK,TRIM0#,1#

sub64710-02032

main64710-02110-C0iZZE122..IND200301-200508

BLACK,TRIM0#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-02050-C0iZZE122..18E..TH;ZZE12#..(16E,18G)..TAIW200103-200712

BLACK,TRIM0#,1#

main64711-02050-C0iZZE12#..(16E,18G,18J)..(IDN,TH)200105-200801

BLACK,TRIM0#

main64711-02050-C0iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200103-200802

BLACK,TRIM1#

main64711-02050-C0iZZE122..18E..TAIW200103-200310

BLACK,TRIM0#,17,18

main64711-02120-C0iZZE122..IND200301-200508

BLACK,TRIM0#

main64771-02130-C0iZZE121..MA200401-200605

BLACK,TRIM0#,1#

main64771-02130-C0iZZE121..MA200107-200801

BLACK,TRIM0#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02030-C0iZZE122..18J..IND200105-200801

BLACK,TRIM0#

main64717-02030-C0iNZE120,ZZE121..(16,16J,J)..(PHL,TH,VN)200105-200802

BLACK,TRIM1#

main64717-02040-C0iZZE121..16J..TAIW200103-200712

BLACK,TRIM1#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02010-C0iZZE12#..(16E,18G,18J)..(IDN,MA,TH)200105-200307

BLACK,TRIM0#

sub64720-02011

main64720-02010-C0iZZE122..18E..TH200211-200307

BLACK,TRIM0#,1#

sub64720-02011

main64720-02011-C0iZZE121..(16,16J)..TH200307-200801

BLACK,TRIM0#

main64720-02011-C0iZZE122..VN200307-200802

BLACK,TRIM1#

main64720-02011-C0iZZE122..18E..TH200307-200311

BLACK,TRIM0#,1#

main64720-02030-C0iZZE121..16J..TAIW200103-200307

BLACK,TRIM0#,1#

sub64720-02031

main64720-02030-C0iZZE122..18E..TAIW200211-200307

BLACK,TRIM0#,17,18

sub64720-02031

main64720-02031-C0iZZE122..18E..TAIW200307-200712

BLACK,TRIM0#,1#

sub64720-02032

main64720-02110-C0iZZE122..IND200301-200508

BLACK,TRIM0#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iZZE121..TAIW200103-200712

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iZZE121..(16,16J)..TH200103-200802

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE121..16E..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH200105-200801

BLACK,TRIM0#

sub90467-05096

main90467-05096-22iZZE122..IND200508

BLACK

sub90467-05096

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-02010iZZE122..18E,18G;ZZE12#..(16E,16G,18J)..(IDN,MA,PHL,TAIW)200103-200802

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-02030-C0iZZE121..(16,16J)..TH200307-200801

BLACK,TRIM0#

main64745-02030-C0iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200307-200802

BLACK,TRIM1#

main64745-02030-C0iZZE122..18E..TH200307-200311

BLACK,TRIM0#,1#

main64745-02060-C0iZZE121..16J..TAIW200103-200712

BLACK,TRIM0#,1#

main64745-02060-C0iZZE122..18E..TAIW200211-200310

BLACK,TRIM0#,17,18

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64745-02030-C0iZZE122..18E..TH200307-200311

BLACK,TRIM0#,1#

main64745-02030-C0iZZE12#..(16E,18G,18J)..(IDN,MA,TH)200307-200801

BLACK,TRIM0#

main64745-02030-C0iZZE121..(16,16G,16J)..(PHL,TH);NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200307-200802

BLACK,TRIM1#

main64745-02060-C0iZZE122..18E..TAIW200103-200712

BLACK,TRIM0#,1#

main64745-02060-C0iZZE122..18E..TAIW200211-200310

BLACK,TRIM0#,17,18

64770COVER ASSY, SPARE WHEEL

main64770-02050iZZE122..VN200103-200802

main64770-02060iZZE122..IND200301-200508

64777GCUSHION, SPARE WHEEL

main64777-02040iZZE12#..TAIW200103-200712

main64777-12030-B0iNZE120200110-200403

SHADOW GRAY,TRIM1#

sub64777-12030

main64777-12030-C0iNZE120200107-200110

BLACK,TRIM1#

sub64777-12030

9008016052

main90080-16052

9011910861

main90119-10861

9017810016

main90178-10016

9017910076

main90179-10076

9018305016

main90183-05016

9046711067

main90467-11067

30 parts on this diagram · 1 diagram in section
