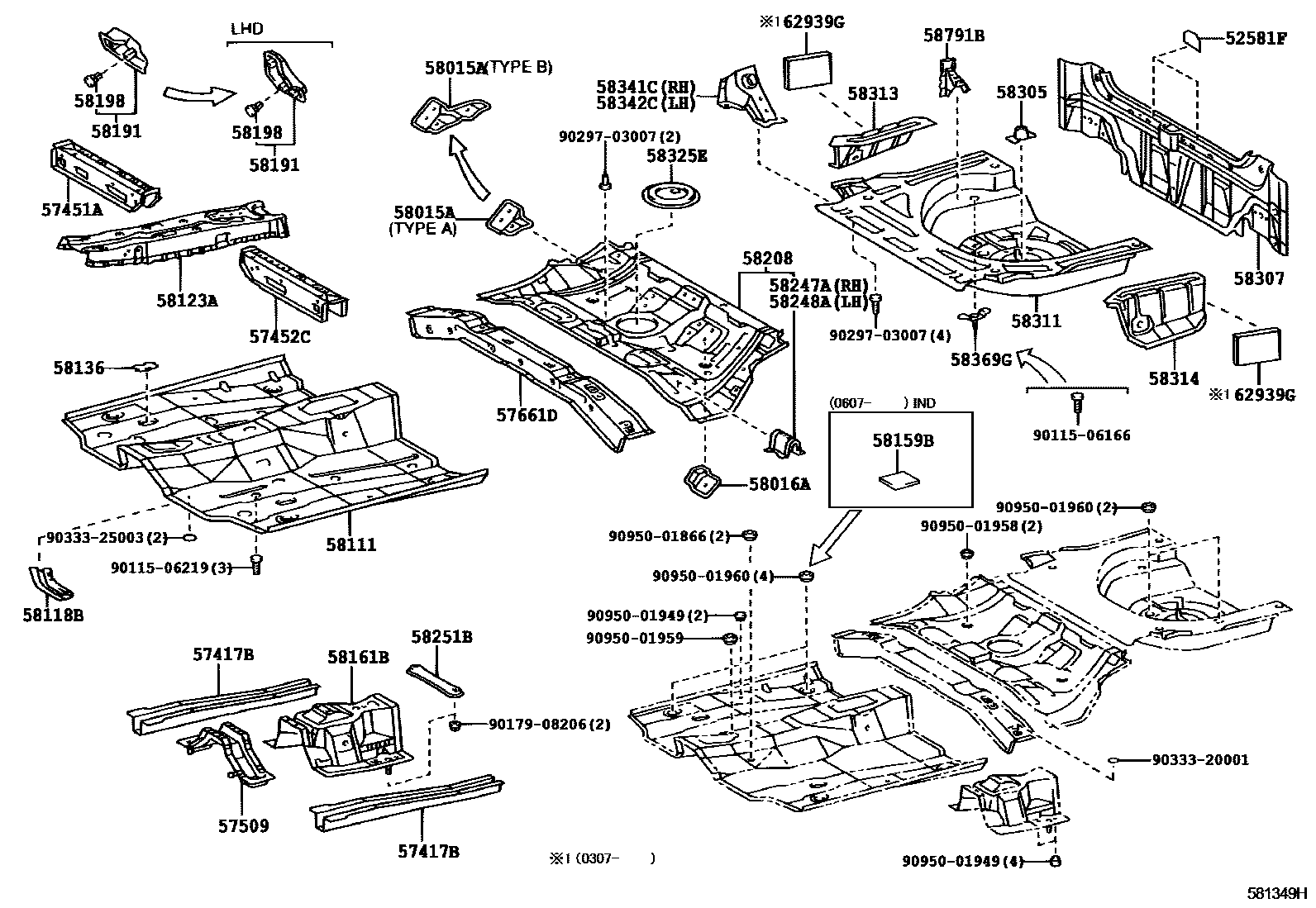

FLOOR PAN & LOWER BACK PANEL

52581FPROTECTOR, REAR BUMPER

main52581-02010iZZE122;ZZE121..TAIW,TH;ZZE121..MTM..PHL;ZZE121..ATM..16E..(MA,PHL)200103-200808

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57505-12070iZZE122..IND,MA;ZZE121..ATM..MA200103-200802

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-12191iZZE12#..IDN,MA,PHL,TH200105-200111

sub57451-12192

main57451-12210iNZE120,ZZE12#..TAIW,VN200111-200310

sub57451-12250

main57451-12211iNZE120,ZZE12#..TAIW,VN200103-200111

sub57451-12210

main57451-12220iZZE121..MA,PHL;ZZE122..(18G,18J)..(IDN,MA,PHL,TH)200111-200310

sub57451-12240

main57451-12240iZZE12#..IDN,TH200310-200802

main57451-12250iZZE12#..TAIW,VN200310-200712

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-12021iZZE121..16J..PHL;ZZE12#..(16,16E,16J,18E)..TH200105-200111

main57452-12040iZZE122..IDN,PHL;ZZE121..(16E,16G)..(MA,PHL)200111-200310

sub57452-12120

main57452-12041iZZE122..IDN,PHL;ZZE121..(16E,16G)..(MA,PHL)200107-200111

sub57452-12040

main57452-12050iZZE122..18G..(MA,TH)200111-200310

main57452-12051iZZE122..18G..(MA,TAIW,TH,VN);NZE120,ZZE12#..(16E,16J,18E,J)..(TAIW,VN)200103-200111

sub57452-12050

main57452-12060iZZE121..16J..PHL200111-200301

main57452-12071iZZE122..VN200310-200712

main57452-12080iZZE122..18G..(MA,TH)200301-200310

sub57452-12081

main57452-12081iZZE122..18G..(MA,TH)200310-200401

main57452-12090iZZE122..IND;ZZE121..16J..PHL;ZZE12#..(16,16E,16J,18E)..TH200301-200310

sub57452-12091

main57452-12091iZZE12#..(16,16E,16J,18E)..TH200310-200802

main57452-12101iZZE122..IDN200311-200603

W(ANTI-THEFT DEVICE:IMMOBILIZER & TVSS)

main57452-12101iZZE12#..(16E,18G)..PHL200311-200802

main57452-12111iZZE122..18G..(MA,TH)200311-200801

main57452-12120iZZE122..IDN,PHL;ZZE121..(16E,16G)..(MA,PHL)200310-200401

main57452-12130iNZE120,ZZE122..VN200310-200403

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12040iZZE12#..IDN,TH200103-200802

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-12010iNZE120,ZZE12#200103-200802

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12060iZZE122..18J..IND200103-200802

TYPE A:REFER TO ILLUSTRATION

main58015-12070iZZE122..18E,18G;ZZE12#..(16E,16G,18J)..(IDN,MA,PHL,TAIW)200103-200802

TYPE B:REFER TO ILLUSTRATION

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-32050iZZE12#..TAIW200103-200802

58111PAN, FRONT FLOOR

main58111-12280iZZE12#200103-200104

sub58111-12281

main58111-12281iNZE120,ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL200104-200111

main58111-12350iZZE12#..TAIW,VN200111-200802

main58111-12902iZZE121..16J..PHL200107-200111

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-20011iZZE122..VN200111-200712

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12040iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200103-200802

58136COVER, FRONT FLOOR HOLE

main58136-33010iZZE121..16J..PHL;ZZE122..18G..(MA,TH)200105-200802

58159BSHEET, FRONT FLOOR

main58159-02010iZZE122..IND200607

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-12070iZZE12#..IDN,TH200105-200801

main57805-12080iNZE120,ZZE12#..LHD200103-200802

58191FOOTREST, FRONT FLOOR

main58191-02060iZZE12#..IDN,MA200202-200801

main58191-12120iZZE12#..IDN,MA200105-200203

main58192-02060iNZE120,ZZE122..VN200205-200403

sub58192-12070

main58192-12070iZZE122..VN200103-200802

58198CLIP, FOOTREST

main58198-20210iZZE12#..IDN,IND,MA,PHL,TAIW,TH200103-200801

main90467-09220iZZE12#..PHL200406-200802

58208PAN, CENTER FLOOR

main58211-12590iZZE121..MTM..16J..PHL200310-200802

FOR BRAZIL,ARGENTINA

sub58211-12918

main58211-12600iZZE121..TAIW;ZZE122..IDN,TAIW,TH200310-200802

FOR BR,AR,SA

sub58211-12919

main58211-12918iZZE121..TAIW,TH200103-200802

W(FIXED TYPE REAR SEAT)

main58211-12919iZZE121..TAIW;ZZE122..IDN,TAIW,TH200211-200802

W(SPLIT TYPE REAR SEAT)

main58211-12919iZZE122..18E,18G;ZZE12#..(16E,16G,18J)..(IDN,MA,PHL,TAIW)200103-200508

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12070iZZE12#..TAIW200103-200802

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12070iZZE12#..MA,PHL200103-200802

58251BBRACE, FLOOR PANEL, FRONT

main58251-02020iZZE12#..IDN,TH200202-200802

main58251-12030iZZE12#..TAIW200103-200712

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iNZE120,ZZE12#200103-200802

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A560iZZE121..TAIW200103-200802

main58307-1A570iZZE12#..(16E,18E,18G)..TAIW200103-200712

W(BACK SONAR)

main58307-1A620iZZE122..(18E,18G)..(IND,MA,VN)200105-200802

W(SPLIT TYPE REAR SEAT)

main58307-1A630iZZE122..18G..IDN200107-200802

W(BACK SONAR & SPLIT TYPE REAR SEAT)

58311PAN, REAR FLOOR

main58311-12270iNZE120,ZZE12#200103-200808

main58311-12270iZZE122..TAIW200310-200712

W(DISCHARGE HEADLAMP)

58313PANEL, REAR FLOOR SIDE, RH

main58313-12300iNZE120,ZZE12#200103-200802

58314PANEL, REAR FLOOR SIDE, LH

main58314-12300iNZE120,ZZE12#200103-200802

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12110iNZE120,ZZE12#200103-200802

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-12020iNZE120,ZZE12#200103-200802

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-02010iZZE12#..TAIW200411-200712

main58342-12020iNZE120,ZZE12#200103-200802

58369GBRACKET, FUEL TUBE, NO.3

main58369-12020iNZE120,ZZE12#200103-200802

58791BCARRIER, JACK

main58791-12200iZZE12#..TAIW200103-200802

62939GSILENCER, QUARTER VENT

main62939-02030iZZE12#..TAIW200307-200802

main62939-02040iZZE122..IND200508

9011506166

main90115-06166

9011506219

main90115-06219

9017908206

main90179-08206

9029703007

main90297-03007

9033320001

main90333-20001

9033325003

main90333-25003

9095001866

main90950-01866

9095001949

main90950-01949

9095001958

main90950-01958

9095001959

main90950-01959

9095001960

main90950-01960

42 parts on this diagram · 1 diagram in section
