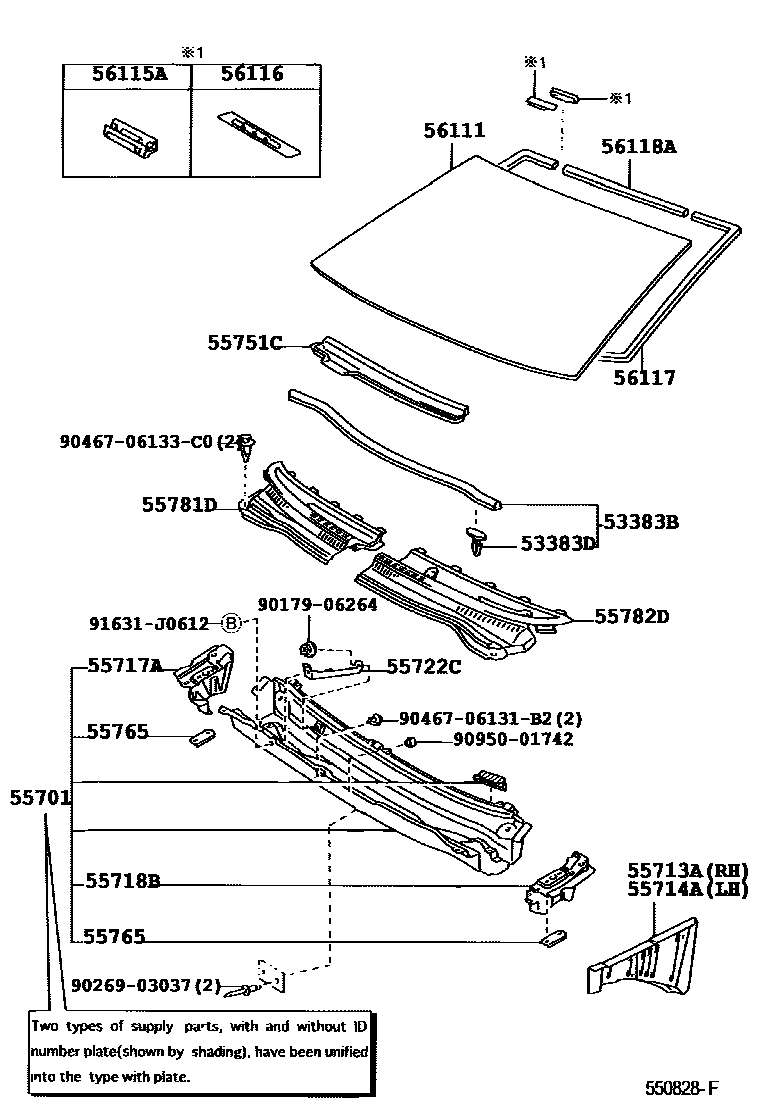

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-02080iZZE121..ATM..MA;ZZE122..IND,MA,VN200311

main53383-12140iNZE120,ZZE12#..PHL,VN200103-200203

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8iNZE120,ZZE12#..IND,PHL,TAIW,VN200103-200508

55701PANEL SUB-ASSY, COWL

main55700-02280iZZE12#..PHL200504-200802

main55700-02300iZZE121..ATM..16E..TH200603-200801

W(SECURITY HORN)

main55700-12A00iNZE120,ZZE122..VN200310-200403

main55700-1A391iZZE12#..IND,TH200105-200310

main55700-1A400iZZE12#200103-200104

main55700-1A401iZZE12#..PHL,TAIW200104-200401

main55700-1A460iZZE12#..ATM..MA200311

55713APANEL, COWL TOP SIDE, RH

main55713-12110iZZE12#..TAIW200310-200712

55714APANEL, COWL TOP SIDE, LH

main55714-12110iNZE120,ZZE12#200103-200508

55717APANEL, COWL TOP SIDE, INNER RH

main55717-12170iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-12120iNZE120,ZZE12#200103-200508

55722CBRACE, COWL TOP TO COWL, INNER

main55722-12030iZZE122..IND,MA;ZZE121..ATM..MA200311

main55722-12040iNZE120,ZZE12#..LHD200105-200403

55751CSHIELD, COWL VENTILATOR SPLASH

main55751-02011iZZE12#..IDN,TH200311-200801

main55751-02020iZZE12#200103-200105

main55751-02021iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02090iZZE12#..IDN,TH200311-200801

main55708-02100iZZE12#..TAIW200310-200712

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02010iZZE12#..IDN,TH200311-200801

main55709-02020iNZE120,ZZE12#..LHD200103-200403

56111GLASS, WINDSHIELD

main56101-12030iZZE122..TAIW200310-200712

*LAM,T=4.76,GREEN,W(RAIN SENSOR)

main56111-02100iZZE122..IDN,VN;NZE120,ZZE121..TAIW,VN200103-200403

*LAM,T=4.76,GREEN

main56111-02110iZZE121..MA;ZZE122..MA,TAIW200103-200401

*LAM,T=4.76,GREEN

main56111-02260iZZE122..TH200310-200801

*LAM,T=4.76,GREEN,W(TOP SHADE)

sub56111-02261

main56111-02280iZZE122..IDN200311-200401

*HSEAL,T=4.76,GREEN

main56111-02290iZZE12#..MA200401-200801

*HSEAL,T=4.76,GREEN

main56111-1A810iZZE122..PHL;ZZE12#..(16,16E,16G,16J,18J)..(IND,PHL,TH)200105-200508

*LAM,T=4.76,GREEN

main56111-1A820iZZE122..(18E,18G)..(IND,TH)200105-200508

*LAM,T=4.76,GREEN

main56111-1A890iZZE122..18E..TAIW200603-200712

*LAM,T=4.76,GREEN

sub56111-1A891

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020×2iZZE12#..TAIW200310-200712

(L)

main56115-30100×2iZZE12#..TAIW200103-200310

56116SPACER, WINDSHIELD GLASS

main56116-02020×2iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

(L)

main56116-22050×2iZZE12#..TAIW200103-200310

56117DAM, FRONT PILLAR, OUTER

main56117-02070iZZE12#..IDN,TH200311-200801

(L)

main56117-12240iNZE120,ZZE12#200103-200508

main56117-47010iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-02040iZZE12#..IDN,TH200311-200801

*D,L=686,(L)

main56117-12240iZZE122..IDN200311-200401

*D,L=686,(J)

main56117-47010iNZE120,ZZE12#200103-200508

*D,L=686

9017906264

main90179-06264

9026903037

main90269-03037

9046706131B2

main90467-06131B2

9046706133C0

main90467-06133C0

9095001742

main90950-01742

91631J0612

main91631-J0612

23 parts on this diagram · 2 diagrams in section
