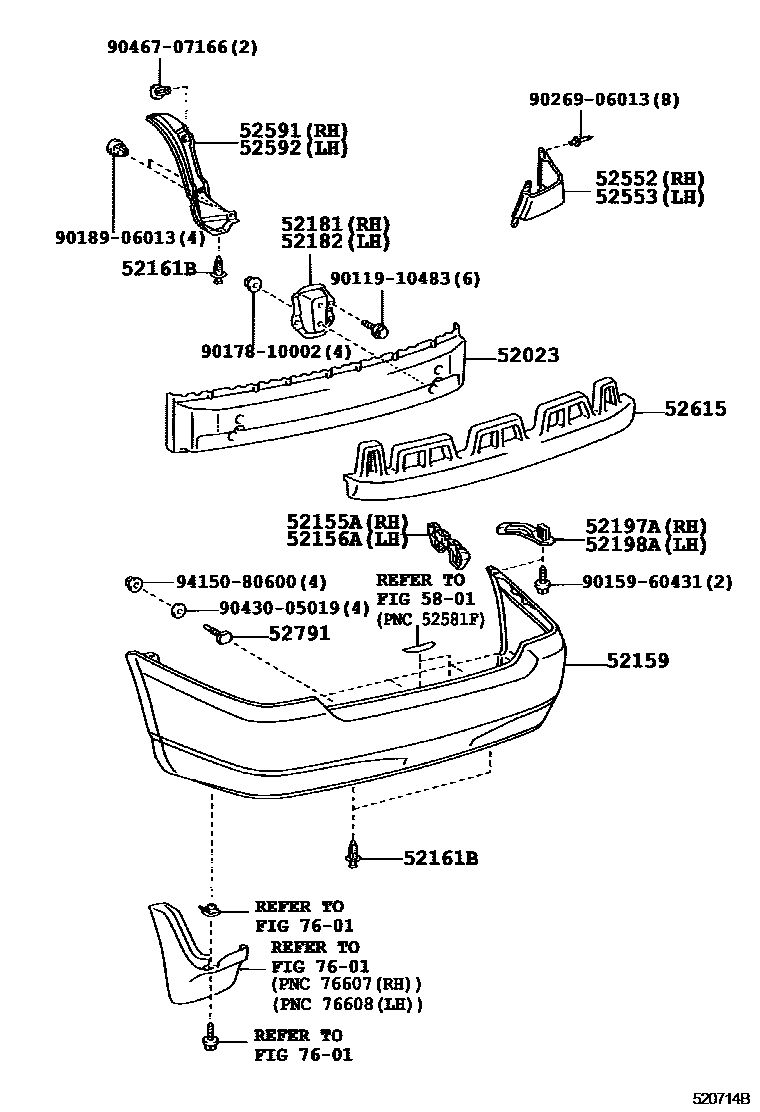

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02050iZZE121..16E..TAIW200103-200211

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02040iZZE121..16E..TAIW200103-200211

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02030iZZE121..16E..TAIW200103-200211

52159COVER, REAR BUMPER

main52159-02190iZZE121..16200311-200801

main52159-02330iZZE122..IND200508

main52159-02904iZZE122..18J..IDN;ZZE12#..(16E,16J,18E,18G)..TH200311-200801

main52159-02905iZZE122..18G..IDN200311-200801

main52159-02906iZZE122..18E..TAIW200603-200712

main52159-02907iZZE122..18G..TAIW200103-200310

W(CLEARANCE & BACK SONAR)

main52159-02908iZZE12#..(16E,18E)..TAIW200103-200310

W(BACK SONAR)

main52159-02940iZZE122..PHL200401-200802

52161BPIECE, REAR BUMPER

main52161-16010×4iZZE122..18G..IDN200310-200801

sub52161-0K040

main90467-09093×4iZZE12#..IDN,TH200103-200311

52181ARM, REAR BUMPER, RH

main52181-02030iZZE12#..IDN,TH200311-200801

main52181-02040iZZE12#..TAIW200103-200310

main52181-02050iNZE120,ZZE122..VN200107-200403

52182ARM, REAR BUMPER, LH

main52181-02030iZZE12#..IDN,TH200311-200801

main52181-02050iNZE120,ZZE122..VN200107-200403

main52182-02030iZZE12#..TAIW200310-200712

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12080iNZE120,ZZE122..VN200103-200403

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-12080iZZE122..IND200103-200508

52552FILLER, REAR BUMPER, RH

main52552-02010iNZE120,ZZE12#200103-200508

52553FILLER, REAR BUMPER, LH

main52553-02010iNZE120,ZZE12#200103-200508

52591SEAL, REAR BUMPER SIDE, RH

main52591-02070iZZE122..IND200311

main52591-12150iZZE122..MA,VN;ZZE121..ATM..MA200310

52592SEAL, REAR BUMPER SIDE, LH

main52592-02060iZZE122..IND200311

main52592-12070iZZE12#..MA,PHL200103-200401

52615ABSORBER, REAR BUMPER ENERGY

main52615-02050iZZE121..16E..TAIW200103-200211

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040×4iZZE121..16E..TAIW200103-200211

5801

7601

9011910483

main90119-10483

9015960431

main90159-60431

9017810002

main90178-10002

9018906013

main90189-06013

9026906013

main90269-06013

9043005019

main90430-05019

9046707166

main90467-07166

9415080600

main94150-80600

25 parts on this diagram · 2 diagrams in section
