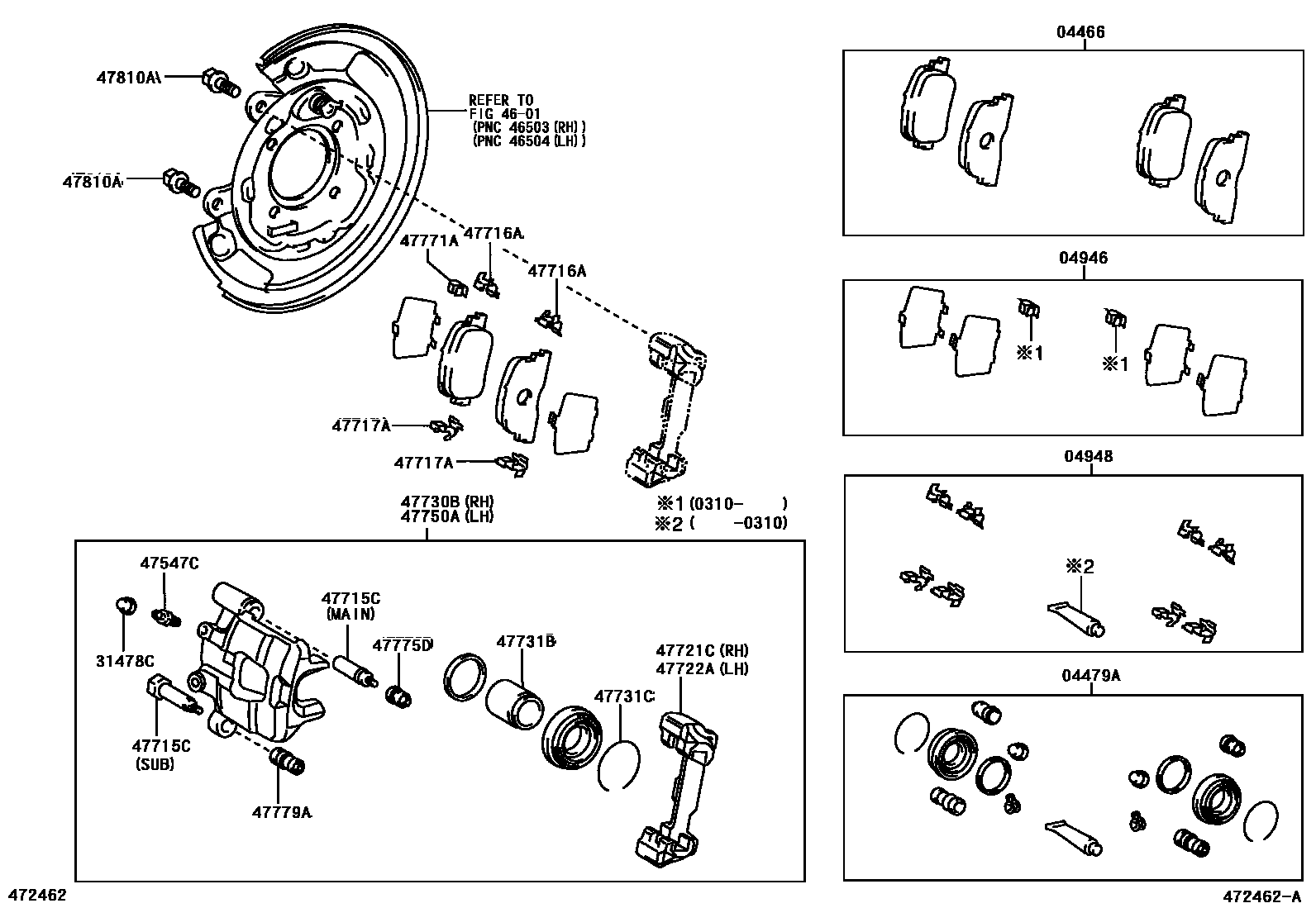

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0005 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02050iZZE122..IND200301-200508

MARK TRW FER 4088F

main04466-02100iZZE122..TAIW200310-200712

MARK AK PA557

main04466-20090iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200105-200311

MARK AK PA544

main04466-32030iZZE12#..(16E,18E,18G)..TAIW200103-200310

MARK AK PA544

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02171iZZE122..IND200402-200508

main04479-02230iZZE122..IND200301-200402

main04479-02290iZZE122..IND200508

main04479-32120iZZE122..TAIW200711-200712

main04479-42020iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200105-200311

main04479-52030iZZE122..PHL200311-200802

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02020iZZE12#..(16E,18E,18G)..TAIW200103-200310

main04946-02030iZZE122..TAIW200310-200712

main04946-20020iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200311-200801

04948FITTING KIT, DISC BRAKE, REAR

main04948-02020iZZE12#..(16E,18E,18G)..TAIW200103-200310

main04948-02060iZZE122..IND200301-200508

main04948-20010iZZE122..VN200105-200403

main04948-32040iZZE122..TAIW200310-200712

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-02010×2iZZE122..TAIW200409-200712

main31478-30010×2iZZE122..TAIW200211-200310

main47548-02060×2iZZE122..IND200301-200508

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iZZE12#..(16E,18E,18G)..TAIW200103-200310

main47547-35020×2iZZE121..RHD..16E;ZZE12#..(16G,18E,18G)..(IDN,MA,PHL,TH,VN)200105-200211

main90080-93014×2iZZE122..IND200508

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02070×2iZZE122..TAIW200310-200712

SUB

main47715-02080×2iZZE12#..(16E,18E,18G)..TAIW200103-200310

MAIN

main47715-20030×2iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200311-200801

MAIN

main47715-20040×2iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200211-200311

SUB

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-02180×4iZZE122..IND200301-200508

main47716-32060×4iZZE12#..(16E,18E,18G)..TAIW200103-200310

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32060×4iZZE12#..(16E,18E,18G)..TAIW200103-200310

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-02080iZZE12#..(16E,18E,18G)..TAIW200103-200310

main47721-09151iZZE122..IND200301-200508

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-02030iZZE122..TAIW200310-200712

main47722-09060iZZE122..IND200508

main47722-09061iZZE122..IND200301-200508

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-02080iZZE121..16E..TAIW200103-200211

main47730-02210iZZE122..IND200301-200508

main47730-12500iZZE122..VN200105-200403

47731BPISTON, REAR DISC BRAKE

main47731-02140×2iZZE122..IND200508

main47731-32060×2iZZE122..TAIW200310-200712

sub47731-32030

main47731-42020×2iZZE122..PHL200311-200802

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-37016×2iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200311-200801

main90522-43002×2iZZE121..16E..TAIW200103-200211

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-02070iZZE122..TAIW200310-200712

main47750-02210iZZE122..IND200508

main47750-12500iZZE122..VN200105-200403

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030×2iZZE122..TAIW200103-200310

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020×2iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200105-200311

MAIN

main47775-32050×2iZZE121..16E..TAIW200103-200211

main47775-42010×4iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200311-200801

SUB

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030×2iZZE121..16E..TAIW200103-200211

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10263×4iZZE122..IND200301-200508

main90119-10379×4iZZE122..TAIW200103-200310

20 parts on this diagram · 3 diagrams in section
