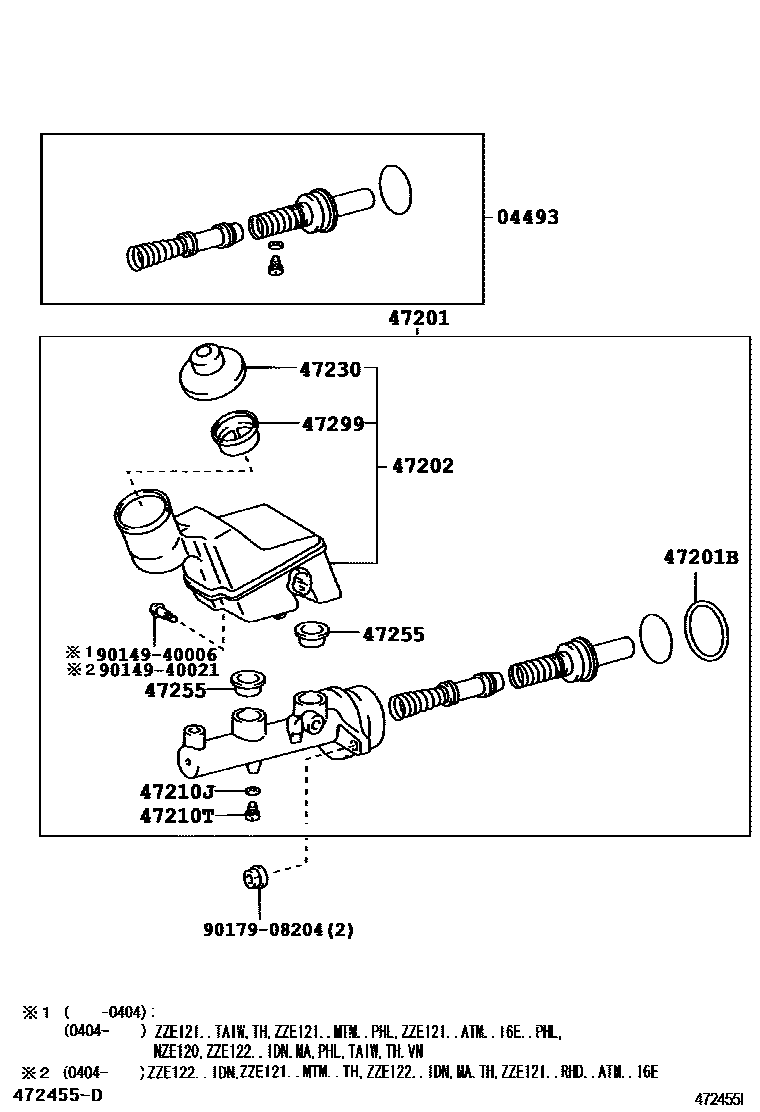

BRAKE MASTER CYLINDER

0001 1 0004 1 0005 1

04493CYLINDER KIT, BRAKE MASTER

main04493-02010iNZE120,ZZE122..VN200105-200802

main04493-02010iZZE121..ATM..16J..TH200208-200401

(L)

main04493-02010iZZE122..IDN;ZZE121..MTM..TH;ZZE122..18E..TH200211-200801

W/O(ABS)

main04493-02020iZZE122..18G..TAIW200103-200712

main04493-02030iZZE12#..(16J,18E)..TAIW200103-200712

main04493-1A010iZZE121..ATM..16J..TH200208-200401

(J)

sub04493-1A030

main04493-1A010iZZE122..IND200301-200405

sub04493-1A030

main04493-1A020iZZE122..18G..TH200105-200801

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02190iZZE122..ATM..IDN;ZZE12#..RHD..ATM..(16E,18E)200211-200801

W/O(ABS)

main47201-02190iZZE122..ATM..IDN;ZZE12#..RHD..ATM..(16E,18E)200208-200801

(L)

main47201-02190iZZE122..ATM..IDN;ZZE12#..RHD..ATM..(16E,16J,18E)200105-200208

main47201-02200iZZE121..MTM..MA200208-200801

(L)

main47201-02200iZZE12#..RHD..MTM200105-200208

main47201-02210iZZE12#..ATM..PHL200107-200802

main47201-02220iZZE121..MTM..PHL200107-200802

main47201-02230iZZE122..18G..TAIW200103-200712

main47201-02240iZZE12#..(16J,18E)..TAIW200103-200712

main47201-02330iZZE122..IND200412-200508

main47201-02390iZZE122..IND200508

main47201-1A330iZZE122..ATM..IDN;ZZE12#..RHD..ATM..(16E,18E)200208-200801

(J)

main47201-1A330iZZE122..18G..IND200301-200412

main47201-1A340iZZE122..MTM..IND200301-200412

main47201-1A340iZZE121..MTM..MA200208-200801

(J)

main47201-1A350iZZE122..18G..(MA,TH)200105-200801

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iZZE121..16E..TAIW200103-200801

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02050iZZE121..ATM..16J..TH200208-200801

(L)

main47220-02050iZZE122..ATM..IDN;ZZE12#..RHD..ATM..(16E,16J,18E)200105-200311

main47220-02050iZZE122..ATM..IDN;ZZE12#..RHD..ATM..(16E,18E)200311-200801

W/O(ABS)

main47220-02060iZZE12#..RHD..MTM200105-200208

main47220-02060iZZE12#..MTM..(IDN,TH)200208-200801

(L)

main47220-02070iZZE12#..ATM..PHL200107-200802

main47220-02080iNZE120,ZZE12#..LHD..MTM200107-200802

main47220-02090iZZE12#..TAIW200103-200712

main47220-02180iZZE122..IND200412-200508

main47220-12120iZZE121..ATM..16J..TH200208-200404

(J)

sub47220-12121

sub90149-40021

main47220-12120iZZE122..18G..(IND,MA,TH)200105-200404

sub47220-12121

sub90149-40021

main47220-12121iZZE122..18G..IND200404-200412

main47220-12121iZZE122..18G..(MA,TH)200404-200801

(J)

main47220-12130iZZE12#..MTM..(IDN,MA,TH)200208-200404

(J)

sub47220-12131

sub90149-40021

main47220-12130iZZE122..MTM..IND200301-200404

sub47220-12131

sub90149-40021

main47220-12131iZZE12#..MTM..(IDN,TH)200404-200801

(J)

main47220-12131iZZE122..MTM..IND200404-200412

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iZZE122..IND200301-200412

main90029-43001iZZE121..ATM..16J..TH200208-200801

(J)

main90430-06104iZZE12#..PHL200103-200802

main90430-06104iZZE121..ATM..16J..TH200208-200801

(L)

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iZZE121..16E..TAIW200103-200802

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02180iZZE122..IND200412-200508

main47230-04040iZZE121..ATM..TH200211-200801

W/O(ABS)

sub47230-0D221

main47230-04040iNZE120,ZZE12#..PHL,VN200105-200802

sub47230-0D221

main47230-04040iZZE122..IDN;ZZE121..RHD..MTM;ZZE12#..RHD..ATM..(16E,18E)200208-200801

(L)

sub47230-0D221

main47230-12040iZZE121..ATM..16J..TH200208-200801

(J)

main47230-12040iZZE122..IND,MA;ZZE122..18G..TH200105-200412

main47230-27020iZZE12#..TAIW200103-200712

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-02030iZZE122..IND200412-200508

main47255-16010iZZE12#..IDN,TH200103-200802

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iZZE12#..MA,PHL200103-200802

9014940006

main90149-40006

9014940021

main90149-40021

9017908204

main90179-08204
