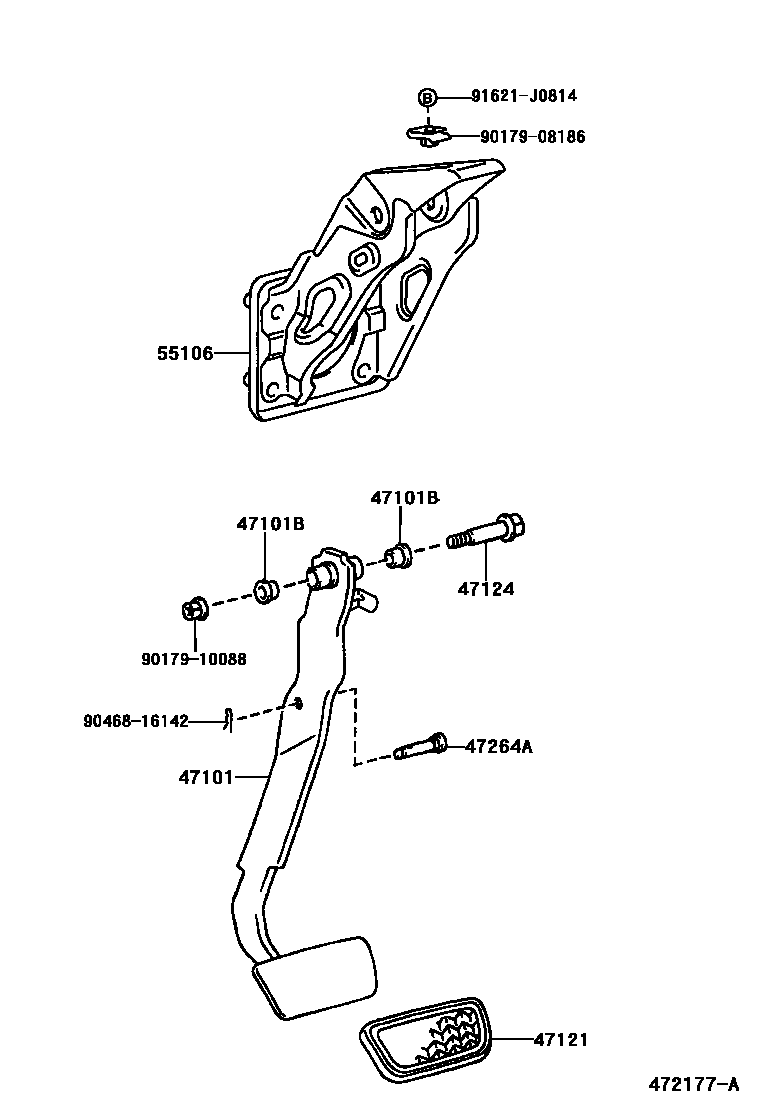

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02230iZZE12#..TAIW200409-200712

main47101-12590iZZE122..MTM..IND200311

main47101-12600iZZE12#..ATM..(IDN,TH)200311-200801

main47101-12610iZZE121..MTM..PHL200401-200802

main47101-12620iZZE121..16E..TAIW200103-200211

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iZZE121..16E..TAIW200103-200211

47121PAD, BRAKE PEDAL

main31321-52010iZZE122..MTM..IND200105-200508

main47121-02020iZZE12#..TAIW200409-200712

main47121-52010iZZE12#..TAIW200310-200409

47124SHAFT, BRAKE PEDAL

main90109-10174iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

47264APIN(FOR PUSH ROD)

main47148-12070iZZE121..16E..TAIW200103-200211

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02100iZZE122..IND,MA;ZZE121..ATM..MA200311

main55106-12650iZZE12#..TH200105-200202

main55106-12660iZZE122..VN200310

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

10 parts on this diagram · 1 diagram in section
