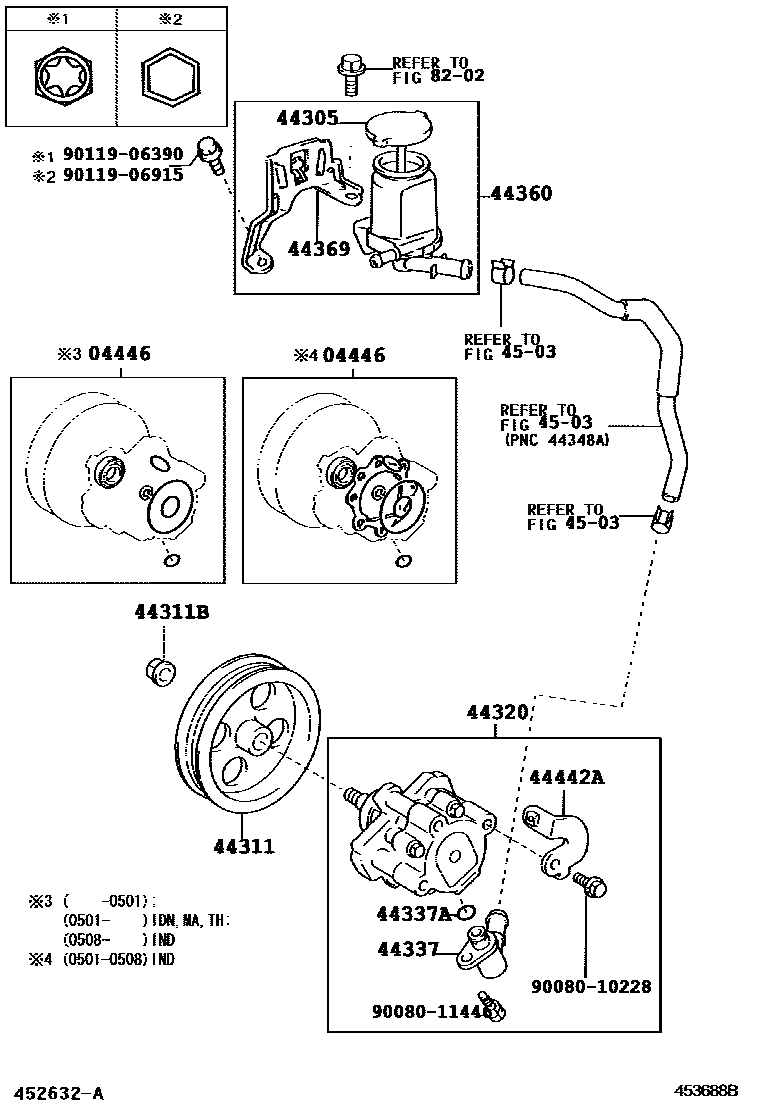

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02060iZZE12#..RHD200105-200501

sub04446-0B030

main04446-02090iZZE12#..TAIW200310-200510

main04446-02100iZZE12#..IDN,TH200501-200801

main04446-02110iZZE12#..TAIW200510-200712

main04446-02150iZZE122..IND200501-200508

main04446-20170iZZE122..VN200510-200802

main04446-32050iZZE12#..PHL,VN200103-200510

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-02060iZZE12#..TAIW200310-200709

sub44305-02070

main44305-02070iZZE12#..TAIW200710-200712

main44305-28030iZZE122..IND200110-200801

sub44305-28060

main44305-28060iZZE122..IND,VN200802

sub44305-28061

44311PULLEY, VANE PUMP

main44311-02090iZZE12#..IDN,TH200105-200801

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iZZE12#..IDN,TH200105-200801

44320PUMP ASSY, VANE

main44310-02090iZZE12#..TAIW200103-200712

main44310-12530iNZE120200107-200403

sub44310-20850

main44310-12540iZZE122..VN200107-200802

main44320-02060iZZE122..IND200105-200801

44337UNION, POWER STEERING SUCTION PORT

main44337-02070iZZE122..IND200105-200801

main44337-02080iZZE12#..(16J,18E,18G)..TAIW200103-200712

main44337-12120iNZE120200107-200403

main44337-32110iZZE122..VN200107-200802

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30049iZZE12#..IDN,TH200105-200801

main90080-30088iZZE12#..TAIW200209-200712

main90301-11020iZZE12#..PHL200103-200802

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-02050iZZE12#..(16J,18E)..TAIW200310-200712

main44360-02060iZZE122..18G..TAIW200310-200712

main44360-12100iZZE12#..MA,PHL200103-200802

44369BRACKET, OIL RESERVOIR, NO.1

main44369-02050iZZE12#..(16J,18E)..TAIW200310-200712

main44369-02060iZZE122..18G..TAIW200310-200712

main44369-12060iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200110-200802

main44369-12070iZZE122..18G..TAIW200110-200801

44442ABRACKET, VANE PUMP, REAR

main44442-02050iZZE12#..IDN,TH200105-200801

main44442-02060iZZE12#..(16J,18E,18G)..TAIW200103-200712

main44442-12040iZZE12#..PHL200107-200802

main44442-52020iNZE120200107-200403

4503

8202

9008010228

main90080-10228

9008011446

main90080-11446

9011906390

main90119-06390

9011906915

main90119-06915

16 parts on this diagram · 5 diagrams in section
