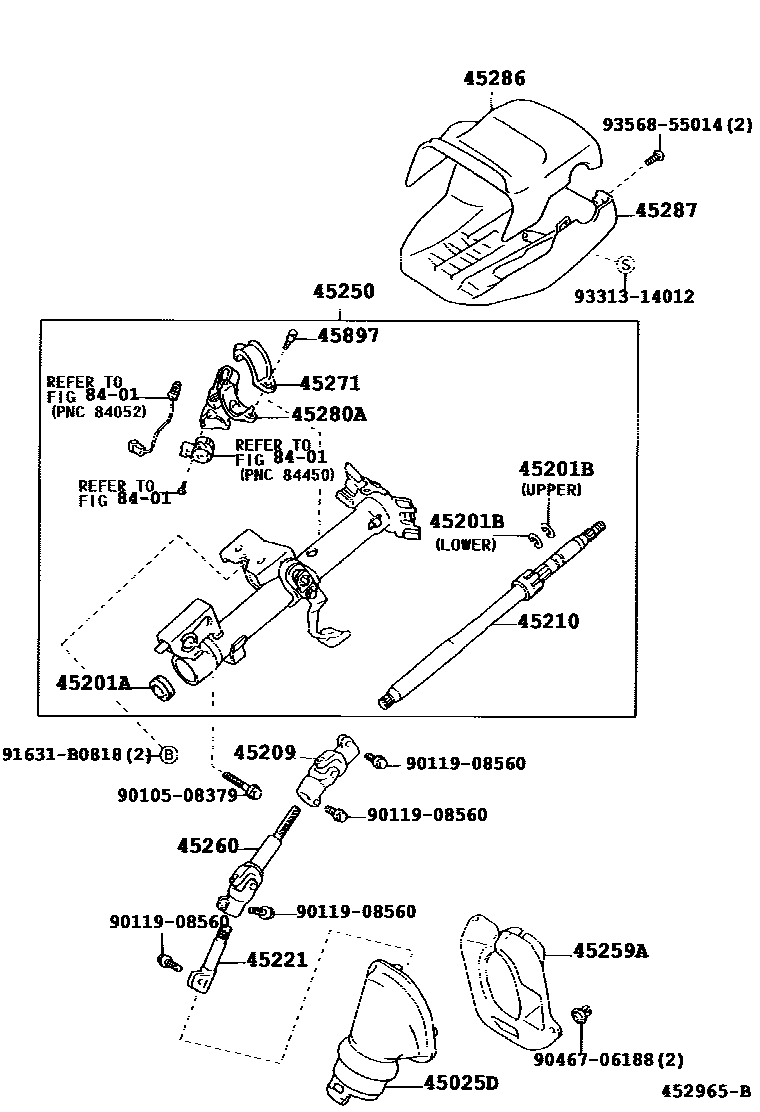

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0008 1 0010 1 0011 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02020iZZE12#..PHL200103-200802

main45025-13020iZZE12#..MA200105-200801

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-02020iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

main45274-02020iZZE122..IDN200210-200707

(L)

main45274-42010iZZE12#..TH200112-200403

(J)

main45274-42010iZZE12#..TAIW200103-200712

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90080-52142iZZE12#..TAIW200110-200712

T=1.20,UPPER

main90080-52143iZZE12#..TAIW200110-200407

T=1.20,LOWER

main90080-52143iZZE12#..TAIW200409-200712

T=1.20,(L),LOWER

main90520-17042iZZE121..TH;ZZE121..MTM..PHL;ZZE122..IDN,MA,PHL,TH,VN;ZZE121..ATM..16E..(MA,PHL)200103-200707

T=1.20,LOWER

main90520-17042iZZE12#..IDN,PHL,TH,VN200503-200801

T=1.20,(L),LOWER

main90520-17042iZZE12#..TAIW200409-200712

T=1.20,(J),LOWER

main90520-17269iZZE12#..MA,PHL200103-200801

T=1.20,UPPER

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-02030iZZE12#..TH200205-200801

main45209-12150iZZE12#..MA200105-200509

sub45209-12151

main45209-12151iZZE12#..MA200510-200801

main45209-12180iNZE120,ZZE12#..LHD200103-200404

sub45209-12H00

main45209-12181iZZE12#..PHL200404-200802

45210SHAFT ASSY, STEERING MAIN

main45210-02070iZZE12#..TAIW200103-200407

main45210-02090iNZE120,ZZE122..VN200212-200802

(L)

main45210-02100iZZE12#..TAIW200409-200712

(L)

main45210-42020iZZE12#..TH200105-200409

main45210-42020iZZE122..MA,VN;ZZE121..ATM..MA200112-200802

(J)

45221SHAFT, STEERING INTERMEDIATE

main45221-02040iZZE12#..IND,TH200205-200801

main45221-12291iZZE12#..TH200103-200802

45250COLUMN ASSY, STEERING

main45250-02340iZZE12#..(16J,18E,18G)..TAIW200103-200712

main45250-02400iZZE12#..TH200112-200802

main45250-1E200iNZE120,ZZE12#..IDN,MA,PHL,VN200105-200212

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02010iZZE12#..IND,TH200209-200801

main45259-02020iZZE121..PHL;ZZE121..16J..TAIW;NZE120,ZZE122..LHD200103-200802

main45259-12010iZZE12#..MA200105-200801

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02050iZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH200205-200801

main45260-12460iZZE12#..TH200105-200208

sub45260-12461

main45260-12480iZZE12#..TAIW200103-200802

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNZE120,ZZE122..VN200103-200802

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02020iZZE12#..(16J,18E,18G)..TAIW200103-200712

main45280-02030iZZE12#..MTM..(IDN,TH)200105-200802

main45280-02040iZZE12#..ATM..(IND,MA)200105-200802

45286COVER, STEERING COLUMN

main45286-02140-B0iZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200103-200802

DK.GRAY,TRIM1#

main45286-02140-E0iZZE122..IND,MA200105-200801

SANDAL WOOD,TRIM0#

main45286-02150-B0iZZE122..18E..TH200208-200311

DK.GRAY,TRIM1#

sub45286-02150

main45286-02150-E0iZZE122..(18E,18G)..(IDN,TH)200105-200603

SANDAL WOOD,TRIM0#

sub45286-02150

main45286-02160-B0iZZE121..16E..TAIW200103-200211

DK.GRAY,TRIM1#

main45286-02160-E0iZZE121..16E..TAIW200103-200211

SANDAL WOOD,TRIM0#

main45286-02170-B0iZZE122..18G..TAIW200310-200712

DK.GRAY,TRIM14,15

main45286-02170-B0iZZE122..18G..TAIW200103-200712

DK.GRAY,TRIM1#

main45286-02170-E0iZZE122..TAIW200310-200712

W(AUTOMATIC LIGHT CONTROL & HAND FREE TELEPHONE),SANDAL WOOD,TRIM0#

main45286-02170-E0iZZE122..TAIW200103-200310

SANDAL WOOD,TRIM0#

main45286-02230-B0iZZE122..VN200506-200802

DK.GRAY,TRIM1#

main45286-02230-E0iZZE122..MA;ZZE122..18J..IND200605

SANDAL WOOD,TRIM0#

main45286-02230-E0iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200508-200801

W(AUTOMATIC LIGHT CONTROL),SANDAL WOOD,TRIM0#

main45286-0D050-B0iZZE122..18E..TAIW200310-200712

DK.GRAY,TRIM1#

main45286-0D050-E1iZZE122..18E..TAIW200603-200712

SANDAL WOOD,TRIM0#

main45286-0D060-B0iZZE122..18E..TAIW200603-200712

W(HAND FREE TELEPHONE),DK.GRAY,TRIM1#

main45286-0D060-E1iZZE122..18E..TAIW200603-200712

W(HAND FREE TELEPHONE),SANDAL WOOD,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45287-02150-B0iZZE121..LHD..16E;ZZE121..16,16G,16J;NZE120,ZZE122..PHL,VN200103-200802

DK.GRAY,TRIM1#

main45287-02150-E0iZZE122..IND,MA200103-200801

SANDAL WOOD,TRIM0#

main45287-02160-B0iZZE122..18E..TAIW200310-200603

DK.GRAY,TRIM14,15

sub45287-02160

main45287-02160-B0iZZE122..18E..TAIW200103-200310

DK.GRAY,TRIM17,18

sub45287-02160

main45287-02160-B0iZZE122..18G..TAIW200103-200603

DK.GRAY,TRIM1#

sub45287-02160

main45287-02160-E0iZZE122..(18E,18G)..(IDN,TAIW,TH)200103-200603

SANDAL WOOD,TRIM0#

sub45287-02160

main45287-02180-B0iZZE122..VN200506-200802

DK.GRAY,TRIM1#

main45287-02180-E0iZZE121..ATM..16E..TH200508-200801

W(AUTOMATIC LIGHT CONTROL),SANDAL WOOD,TRIM0#

main45287-02180-E0iZZE121..ATM..16E..TH200603-200801

SANDAL WOOD,TRIM0#

main45287-0D040-B0iZZE122..18E..TAIW200310-200712

DK.GRAY,TRIM1#

main45287-0D040-E1iZZE122..18E..TAIW200603-200712

SANDAL WOOD,TRIM0#

main45287-0M010-B0iZZE122..18G..TAIW200603-200712

DK.GRAY,TRIM1#

main45287-0M010-B0iZZE122..18G..TAIW200603-200712

DK.GRAY,TRIM14,15

main45287-0M010-E1iZZE122..TAIW200603-200712

W(AUTOMATIC LIGHT CONTROL),SANDAL WOOD,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020iZZE121..16E..TAIW200103-200802

8401

9010508379

main90105-08379

9011908560

main90119-08560

9046706188

main90467-06188

91631B0818

main91631-B0818

9331314012

main93313-14012

9356855014

main93568-55014

21 parts on this diagram · 6 diagrams in section
