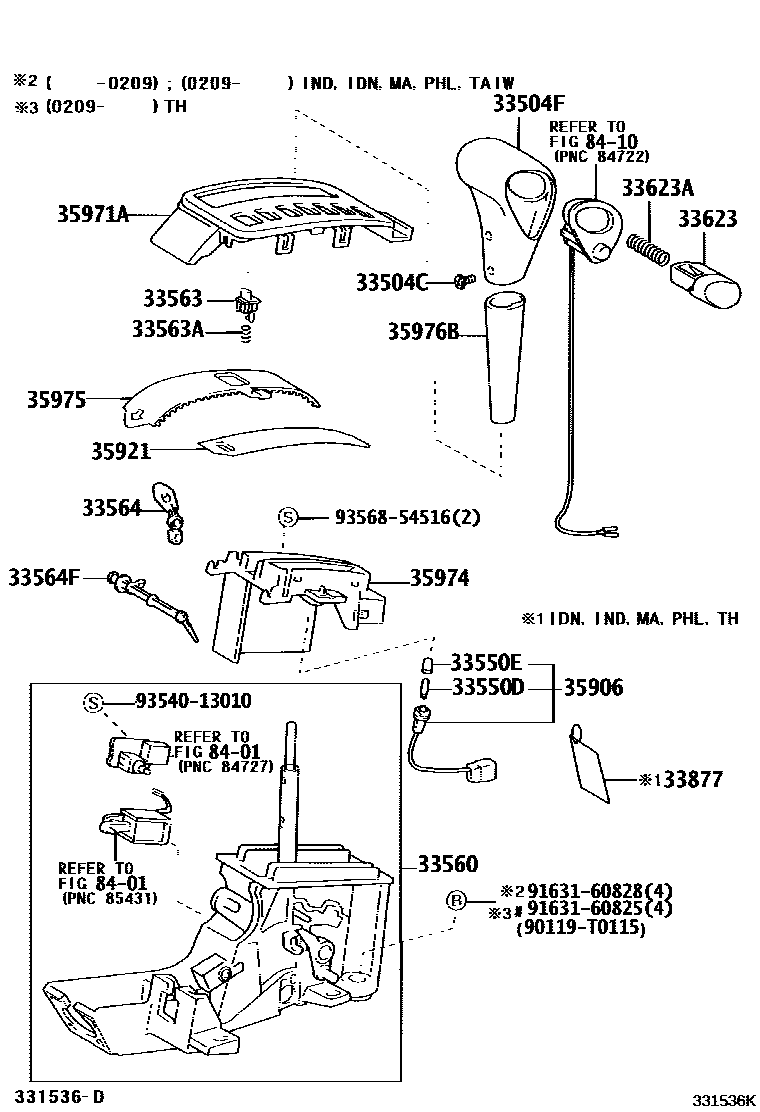

SHIFT LEVER & RETAINER

0001 1 0004 1 0006 1 0007 1 0008 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iZZE121..16E..TAIW200103-200211

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D050-B0iZZE121..MTM..(16,16J)..TH200205-200311

DK.GRAY,TRIM1#

main33504-0D050-E0iZZE12#..MTM..(16E,18J)..(IDN,MA,TH)200205-200401

SANDAL WOOD,TRIM0#

main33504-12180-B7iZZE121..MTM..PHL200401-200802

DK.GRAY,TRIM1#

main33504-12180-L0iZZE12#..RHD..MTM..(16E,18J)200105-200205

SANDAL WOOD,TRIM0#

main33504-22140-E2iZZE122..MTM..18G..IDN200311-200801

LEATHER,SANDAL WOOD,TRIM0#

main33504-30281-B1iZZE122..18G..TAIW200310-200712

DK.GRAY,TRIM1#

sub33504-52090

sub33504-22170

main33504-30281-E0iZZE122..TAIW200310-200712

SANDAL WOOD,TRIM0#

sub33504-52090

sub33504-22170

main33504-30310-E4iZZE122..ATM..18G..(IDN,MA,TH)200311-200603

SANDAL WOOD,TRIM0#

main33504-30310-L0iZZE122..ATM..18G..(IDN,MA,TH)200603-200801

SANDAL WOOD,TRIM05

main33504-53020iZZE122..ATM..18E200211-200311

main33542-0D010-B0iZZE121..ATM..16J..TH200301-200311

DK.GRAY,TRIM1#

main33542-0D010-E0iZZE121..ATM..16E..TH200301-200401

SANDAL WOOD,TRIM0#

main33542-12310-B0iZZE121..ATM..16J..TH200105-200301

DK.GRAY,TRIM1#

main33542-12310-E0iZZE121..ATM..16E..TH200105-200301

SANDAL WOOD,TRIM0#

main33542-12320-B0iZZE121..TAIW200310-200712

DK.GRAY,TRIM1#

main33542-12320-E0iZZE121..16E..TAIW200103-200211

SANDAL WOOD,TRIM0#

main33542-12330-E0iZZE122..18G..IND200508

SANDAL WOOD,TRIM0#

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iZZE121..LHD..ATM;ZZE122..18G..IND200103-200508

12V 1.4W

main90981-11014iZZE122..MA,PHL,TAIW,TH200103-200401

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iZZE121..TAIW;ZZE122..18G..IND;ZZE121..ATM..16E..PHL200310-200808

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-02030iZZE121..ATM..TH200301-200309

main33560-02031iZZE121..RHD..ATM200401-200801

main33560-02040iZZE122..TAIW200411-200712

main33560-12090iZZE122..TAIW200103-200310

main33560-12100iZZE122..18G..IND200107-200309

main33560-12101iZZE122..18G..IND200508

main33560-12110iZZE121..16E..TAIW200103-200211

main33560-12111iZZE121..ATM..PHL200309-200401

main33560-12140iZZE122..MA200105-200401

33563BUTTON, SHIFT LOCK RELEASE

main33563-12110iZZE122..PHL200310-200802

main33563-12180iZZE122..ATM..(IDN,MA,TH)200311-200801

main33563-12190iZZE121..ATM..MA200107-200401

main33563-12210iZZE121..16J..TAIW200103-200310

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90080-50356iZZE121..ATM..MA200302-200401

main90501-05055iZZE121..ATM..MA;ZZE122..ATM..IDN200103-200302

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-12130iZZE121..ATM..MA200107-200401

main33564-12140iZZE121..16J..TAIW200103-200310

main33564-12150iZZE121..RHD..ATM200311-200801

33564FLINK, SHIFT LOCK RELEASE, NO.2

main33564-12150iZZE121..ATM..TH200105-200301

33623BUTTON, SHIFT LEVER KNOB

main33623-0D010-B0iZZE121..ATM..MA200311-200605

DK.GRAY,TRIM1#

main33623-0D010-E0iZZE121..ATM..16E..TH200301-200401

SANDAL WOOD,TRIM0#

main33623-12170-B0iZZE121..ATM..16J..TH200105-200301

DK.GRAY,TRIM1#

main33623-12170-E0iZZE122..18G..IND200301-200508

SANDAL WOOD,TRIM0#

main33623-12180-B0iZZE121..ATM..16E..PHL200310-200802

DK.GRAY,TRIM1#

main33623-12180-E0iZZE121..16E..TAIW200103-200211

SANDAL WOOD,TRIM0#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90080-50355iZZE122..ATM..IDN200302-200311

main90501-06082iZZE121..16E..TAIW200103-200211

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-02010iZZE12#..ATM..TH200311-200801

main33877-50030iZZE12#..ATM..(MA,PHL)200107-200401

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-02050iZZE122..ATM..IDN200302-200311

main35906-12190iZZE122..MA,PHL200107-200401

main35906-12200iZZE121..ATM..TH200105-200301

main35906-12210iZZE121..16J..TAIW200103-200310

35921PLATE, CONTROL POSITION INDICATOR

main35921-12520iZZE122..MA200107-200401

main35921-12530iZZE121..ATM..MA200107-200401

main35921-12550iZZE121..16E..TAIW200103-200211

main35921-12580iZZE122..PHL200107-200401

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12470iZZE122..ATM..(IDN,MA,TH)200311-200801

main35971-12480iZZE121..ATM..MA;ZZE122..18G..IND200311

main35971-12490iZZE121..TAIW200310-200712

main35971-12510iZZE122..PHL200107-200401

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12240iZZE122..18G..IND200301-200508

main35974-12250iZZE121..16J..TAIW200103-200310

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12290iZZE121..ATM..TH200311-200801

main35975-12300iZZE121..TAIW200310-200712

main35975-30270iZZE122..MA,PHL200310-200802

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-12120-B0iZZE121..ATM..16J..TH200311-200801

DK.GRAY,TRIM1#

main35976-12120-E0iZZE122..ATM..IDN;ZZE121..ATM..16E..TH200105-200311

SANDAL WOOD,TRIM0#

main35976-12130-B0iZZE121..TAIW200310-200712

DK.GRAY,TRIM1#

main35976-12130-E0iZZE121..16E..TAIW200103-200211

SANDAL WOOD,TRIM0#

8401

8410

90119T0115

main90119-T0115

9163160825

main91631-60825

9163160828

main91631-60828

9354013010

main93540-13010

9356854516

main93568-54516

25 parts on this diagram · 5 diagrams in section
