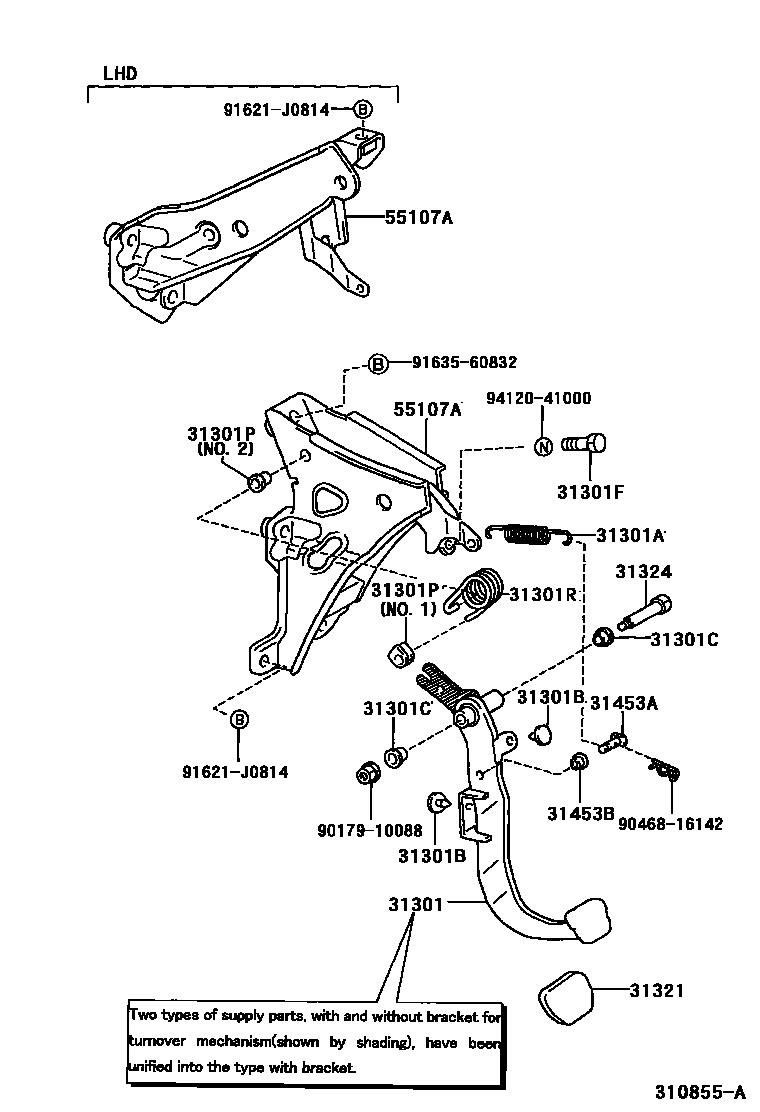

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12450iZZE12#..MTM..(IDN,TH)200311-200801

main31301-12470iZZE121..MTM..PHL200107-200401

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14050iZZE121..MTM..TH200105-200311

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iZZE121..MTM..MA200105-200401

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iZZE12#..MTM..(IDN,TH)200105-200311

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNZE120,ZZE122..VN200105-200403

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iZZE122..VN200107-200403

NO.1

main90389-05019iZZE122..MTM..(IND,VN)200311

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iZZE122..MTM..IDN200311-200801

31321PAD, CLUTCH PEDAL

main31321-52010iZZE12#..MTM..(IDN,TH)200105-200311

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZE12#..MTM..(IDN,TH)200105-200311

main90109-10174iZZE121..MTM..PHL200707-200802

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iZZE122..MTM..IND200501-200508

L=30

main90249-08243iZZE122..VN200401

L=30

main90249-T0001iZZE12#..MTM..(IDN,TH)200311-200801

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZZE121..MTM..(MA,PHL)200105-200401

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12200iZZE12#..RHD..MTM200105-200508

main55107-12220iNZE120,ZZE12#..LHD..MTM200107-200403

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

9163560832

main91635-60832

9412041000

main94120-41000

17 parts on this diagram · 3 diagrams in section
