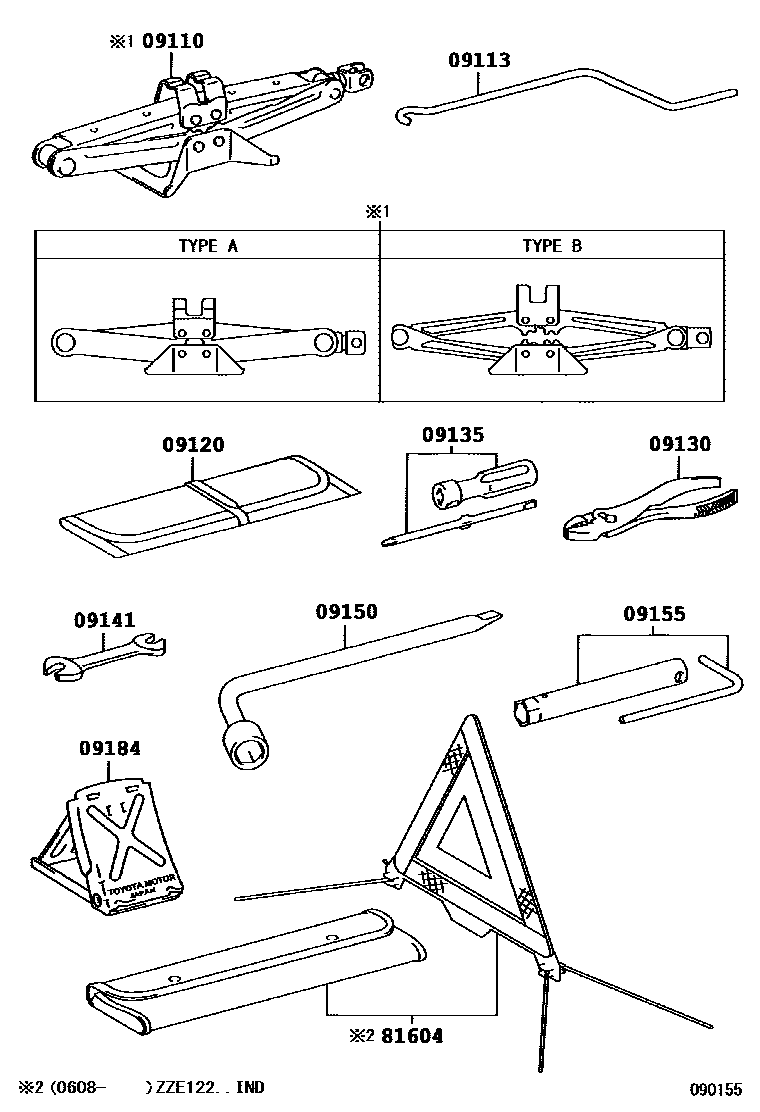

STANDARD TOOL

09110JACK ASSY

main09111-02020iZZE122..MA,VN;ZZE121..ATM..MA¥5,300200310-200802

(J)

main09111-02020iZZE122..IND¥5,300200105-200403

main09111-02020iZZE122..IND¥5,300200301-200508

TYPE A:REFER ILLUST.

main09111-02020iZZE12#..PHL¥5,300200401-200802

(L)

main09111-02060iZZE122..IND200301-200508

TYPE B:REFER ILLUST.

main09111-06070iZZE12#..IDN,TH200306-200801

sub09111-06071

main09111-20120iZZE12#..TAIW200103-200310

main09111-20120iZZE12#..TAIW200310-200712

(L)

09113HANDLE, JACK

main09113-02030iZZE122..IND200301-200508

sub09113-0D140

main09113-0A010iZZE12#..MA,TH200105-200801

main09113-0A020iZZE122..IDN200107-200311

main09113-12020iNZE120¥450200107-200403

main09113-20040iZZE12#..LHD¥480200103-200802

sub09113-20050¥450

09120BAG, TOOL

main09120-02060iZZE122..IND200301-200508

sub09120-0D070

main09120-0A010iZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH200105-200801

main09120-0A020iZZE122..IDN200107-200311

sub09120-0A010

main09120-10040iZZE12#..PHL,VN¥600200107-200802

main09120-16030iNZE120¥450200107-200403

09130PLIERS

main09130-0B040iZZE122..IND200301-200508

main90080-99012iZZE12#..MA,TH200105-200112

sub90089-99010¥440

main90080-99017iZZE122..IDN200107-200311

main90089-99010iZZE12#..MA,TH¥440200112-200801

main99913-11500iNZE120,ZZE12#..PHL,VN¥400200107-200802

09135DRIVER, SCREW

main09135-0B040iZZE122..IND200301-200508

sub09135-0K060

main90080-99014iZZE12#..MA,TH200105-200801

main90080-99018iZZE122..IDN200107-200311

main99915-10700iZZE122..VN¥460200107-200802

09141SPANNER

main09141-0B070iZZE122..IND200301-200508

8 X 10

sub09141-0K130

main09141-0B080iZZE122..IND200301-200508

12 X 14

main90080-99013iZZE12#..MA,TH200105-200801

10 X 12

main90080-99015iZZE122..IDN200107-200311

8 X 10

main90080-99016iZZE122..IDN200107-200311

12 X 14

main99914-10810iNZE120,ZZE12#..PHL,VN¥240200107-200802

8 X 10

main99914-11214iZZE12#..PHL¥400200107-200802

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0A010iZZE121..TH;ZZE121..ATM..MA;ZZE122..IDN,MA,TH200105-200801

main09150-0A020iZZE122..IDN200107-200311

main09150-0B040iZZE122..IND200301-200508

sub09150-02070

main09150-16010iZZE12#..TAIW200103-200712

main09150-40010iZZE12#..PHL¥1,150200107-200802

09155WRENCH, SPARK PLUG

main09155-74010iZZE122..IND¥760200105-200802

09184STOPPER, WHEEL

main09184-00010iNZE120,ZZE122..VN¥770200107-200403

81604REFLECTOR SET, TRIANGLE

main81604-02020iZZE122..IND200608

10 parts on this diagram · 1 diagram in section
