ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-12130

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B0iAZE151201003-201512

LT.GRAY,TRIM1#

sub90467-05164

63311CHEADLINING, ROOF

main63311-12890-B0iAZE151..N201003-201512

LT.GRAY,TRIM1#

main63311-12A40-B0iAZE151..S201003-201512

LT.GRAY,TRIM1#

63318CMOULDING, SUN ROOF OPENING TRIM

63341PAD, ROOF SILENCER, NO.1

main63341-12240iAZE151201003-201203

63341ASILENCER, ROOF, NO.1

main69759-12120iAZE151201003

63341DPAD, ROOF SILENCER, FRONT

main63341-12230iAZE151201003

63341GPAD, ROOF SILENCER

main63341-12270iAZE151201003-201203

63343PAD, ROOF SILENCER, NO.3

main63343-12170iAZE151201003

63343BPAD, ROOF SILENCER, REAR

main63343-12180iAZE151..S201003-201307

sub63343-12181

main63343-12181iAZE151201307

63355APAD, ROOF SILENCER, NO.14

main63355-12050iAZE151201003

66413BSPACER, SIDE RAIL, FRONT RH

main66413-12060iAZE151201003

66423SPACER, SIDE RAIL, FRONT LH

main66423-12060iAZE151201003

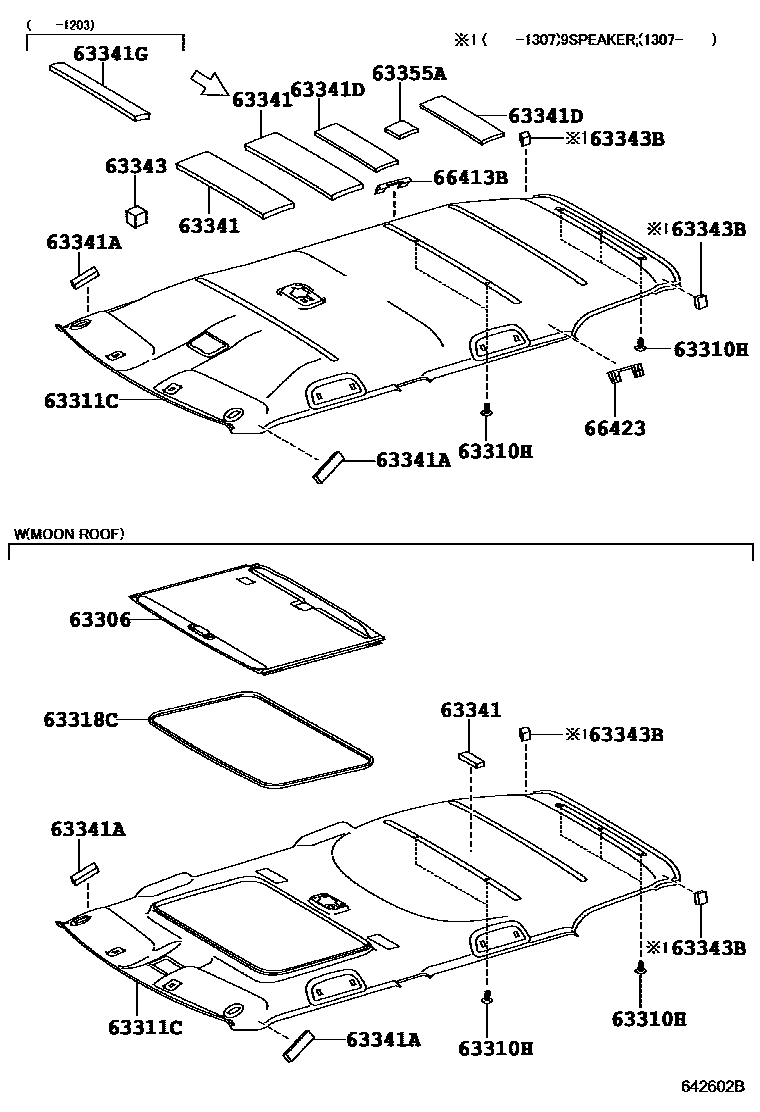

13 parts on this diagram · 1 diagram in section
