SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010i¥280201003

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010i¥280201003

55713CPANEL, COWL TOP SIDE, RH

main55713-12130i¥3,740201003

55714CPANEL, COWL TOP SIDE, LH

main55714-12130i¥3,740201003

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-12400i¥20,900201003

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-12400i¥20,900201003

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12913i¥25,200201003

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12913i¥25,200201003

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12293i¥20,600201003-201107

sub61108-12294¥20,600

main61108-12294i¥20,600201108

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12283i¥20,600201003-201107

sub61109-12284¥20,600

main61109-12284i¥20,600201108

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-12250i¥4,460201003

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-12280i¥5,500201003

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12780i¥22,800201003

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12760i¥22,800201003

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-12250i¥2,140201003

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-12250i¥2,140201003

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-12250i¥15,100201003

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-12240i¥15,100201003

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-12320i¥19,100201003-201105

sub61203-12321¥19,100

main61203-12321i¥19,100201106

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-12300i¥19,100201003-201105

sub61204-12301¥19,100

main61204-12301i¥19,100201106

61211CRAIL, ROOF SIDE, RH

main61211-12520i¥9,300201003

61212CRAIL, ROOF SIDE, LH

main61212-12520i¥9,300201003

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-12170i¥11,500201003

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-12170i¥11,500201003

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-12460i¥24,100201003

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-12500i¥24,100201003

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-12100i¥21,600201003

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-12110i¥21,600201003

61605EPANEL, QUARTER, RH

main61605-12190i¥15,100201003

61606EPANEL, QUARTER, LH

main61606-12180i¥15,100201003

61611PANEL, QUARTER, RH

main61601-12A90i¥54,500201003

61612PANEL, QUARTER, LH

main61602-12A90i¥54,500201003

61621DTROUGH, BACK DOOR OPENING, RH

main61621-12541i¥3,980201003

61622DTROUGH, BACK DOOR OPENING, LH

main61622-12541i¥3,980201003

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-12150i¥2,910201003

61626FEXTENSION, QUARTER PANEL, UPPER LH

main61626-12130i¥2,910201003

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12B90i¥23,600201003-201512

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12C00i¥23,600201003-201512

61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

main61703-12050i¥20,000201003

61704JREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH

main61704-12120i¥20,000201003

61725BOX, FUEL INLET

main61725-12340i¥2,440201003

61731BPANEL, ROOF SIDE, INNER RH

main61731-12810i¥6,900201003

61732BPANEL, ROOF SIDE, INNER LH

main61732-12760i¥6,900201003

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12420i¥6,900201003

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12420i¥6,900201003

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-12080i¥3,540201003

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-12080i¥3,540201003

61771AGUSSET, BACK WINDOW OPENING, RH

main61771-12080i¥5,500201003

61772AGUSSET, BACK WINDOW OPENING, LH

main61772-12080i¥5,500201003

68981ARETAINER, BACK DOOR STAY, RH

main68981-12060i¥550201003

68982ARETAINER, BACK DOOR STAY, LH

main68982-12050i¥550201003

9017906308

main90179-06308¥80

9151580818

main91515-80818¥90

91621J0814

main91621-J0814¥60

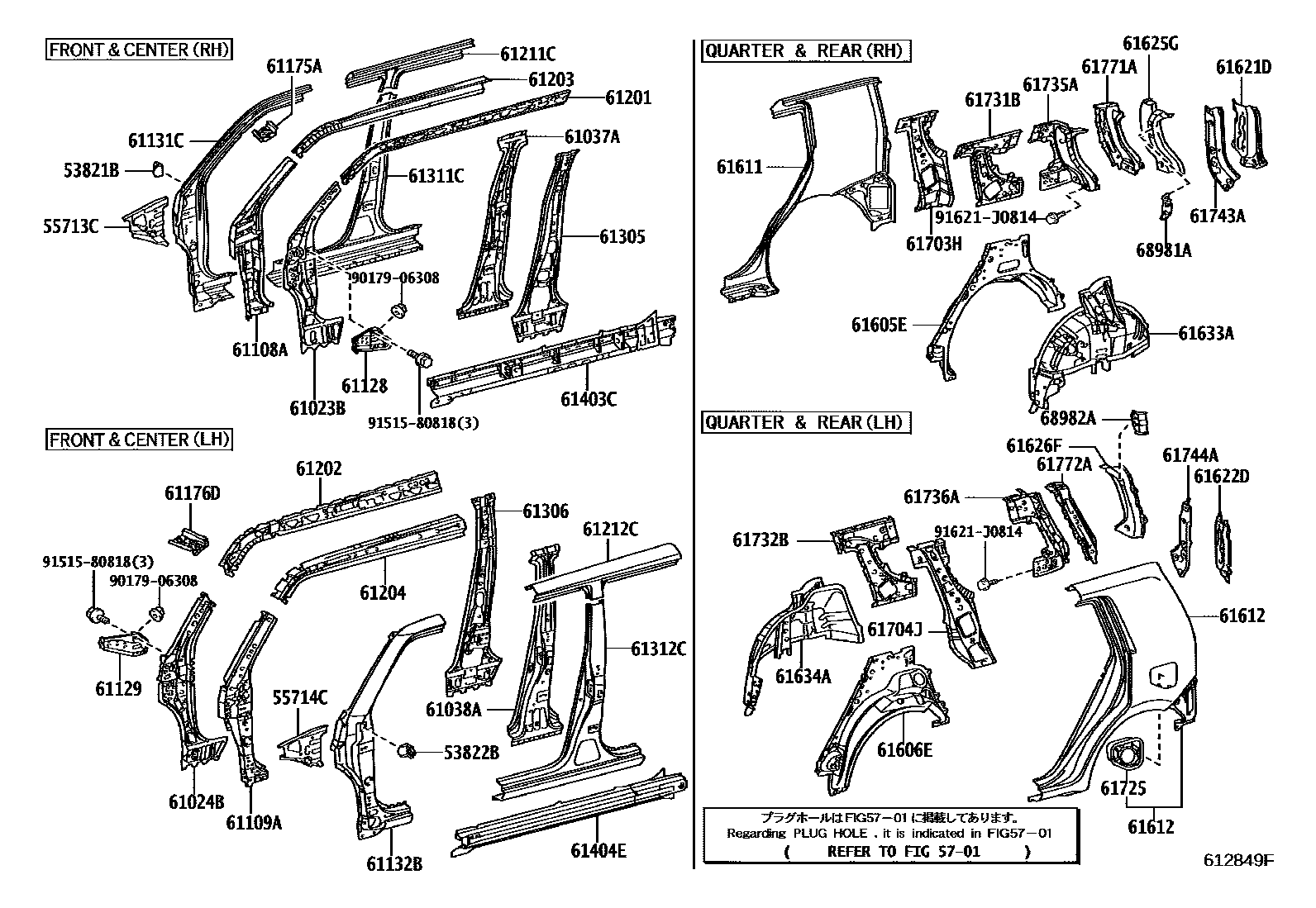

55 parts on this diagram · 2 diagrams in section
