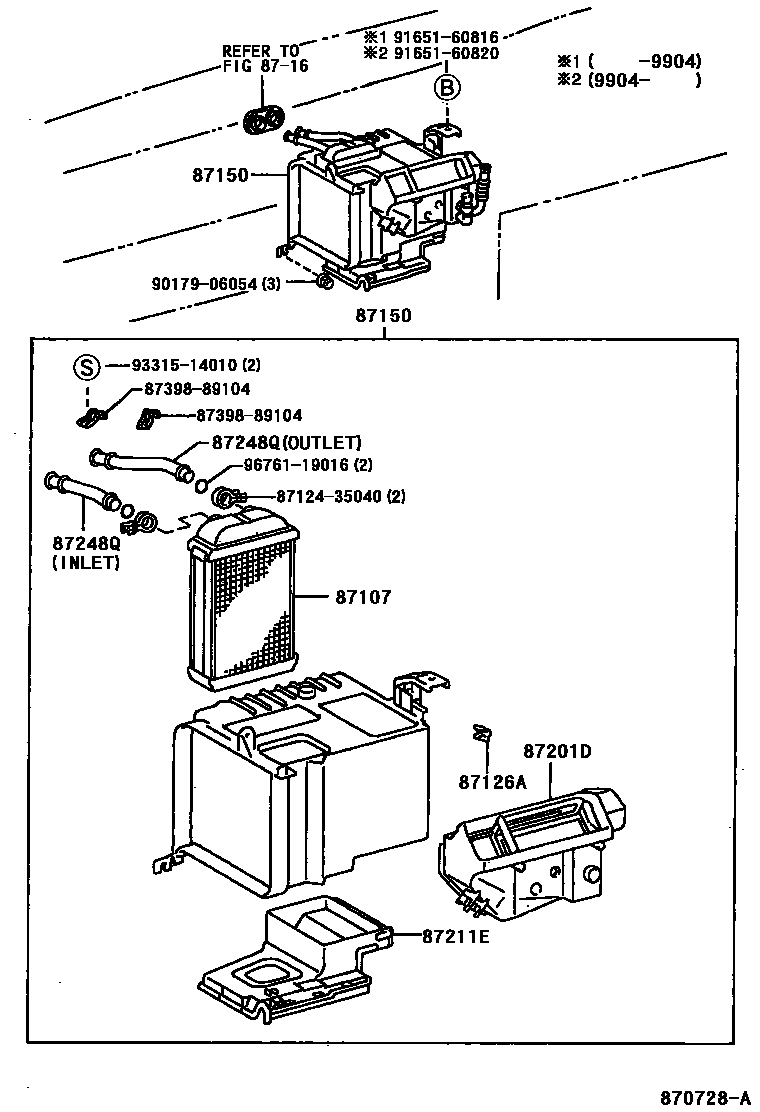

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1W(AUTOMATIC AIR CONDITIONER) 0003 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-12500iAE111199805

87126ACLAMP, HEATER CONTROL

main87126-13010iAE111199805

W(AUTOMATIC AIR CONDITIONER)

87150RADIATOR ASSY, HEATER

main87150-13010iAE111199805

main87150-13020iAE111199805-199906

W(AUTOMATIC AIR CONDITIONER)

sub87150-13021

main87150-13021iAE111199906

W(AUTOMATIC AIR CONDITIONER)

8716

87201DDUCT SUB-ASSY, AIR

main87201-12480iAE111199805

main87201-12510iAE111199805

W(AUTOMATIC AIR CONDITIONER)

87211EDUCT, AIR

main87211-13010iAE111199805

main87211-13020iAE111199805

W(AUTOMATIC AIR CONDITIONER)

87248QPIPE, FRONT HEATER RADIATOR WATER

main87156-12020iAE111199805

INLET

main87156-12030iAE111199805

OUTLET

8712435040CLAMP, HEATER

main87124-35040

8739889104BAND ASSY (FOR COMBUSTION HEATER)

main87398-89104

9017906054

main90179-06054

9165160816

main91651-60816

9165160820

main91651-60820

9331514010

main93315-14010

9676119016

main96761-19016

14 parts on this diagram · 3 diagrams in section
