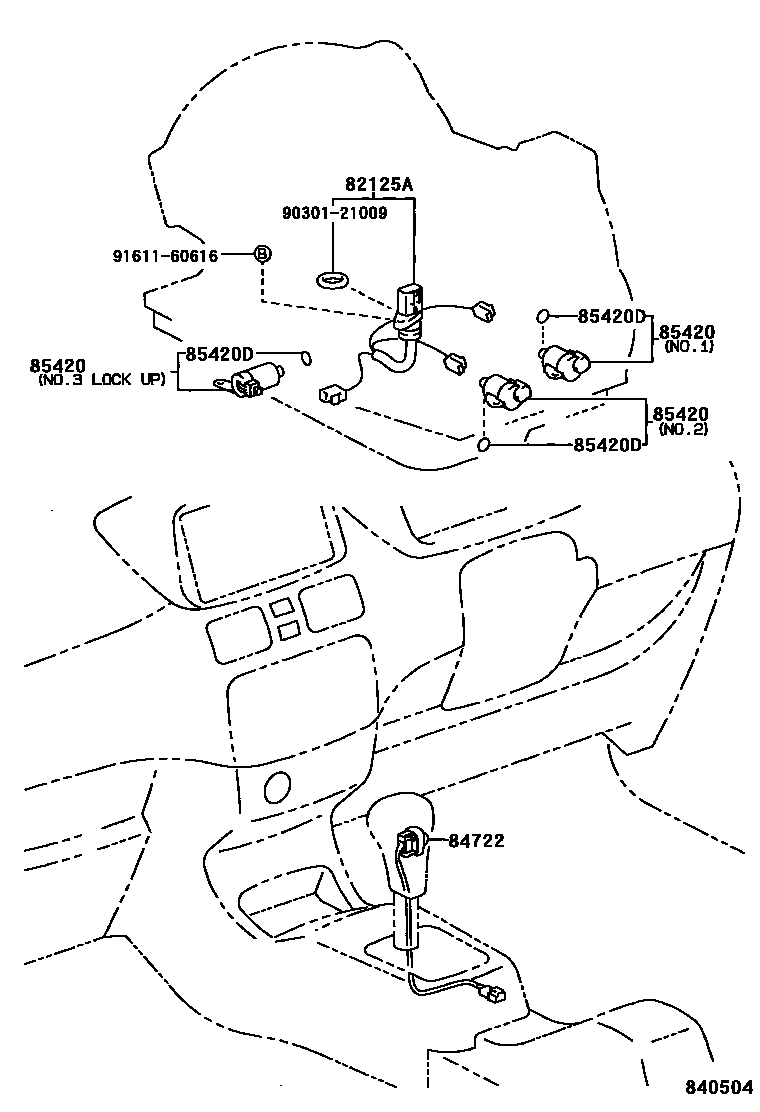

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-12350iAE111199805

84722SWITCH, TRANSMISSION CONTROL

main84722-12060-B1iAE111199805-199904

MD.CHARCOAL,TRIM1#

sub84722-12060

main84722-13010-B0iAE111199904

MD.CHARCOAL,TRIM1#

sub84722-13010

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iAE111199805-199809

NO.1

sub85420-21010

main85420-12120iAE111199805-199809

NO.2

sub85420-21030

main85420-12140iAE111199805-199809

NO.3(LOCK UP)

sub85420-21050

main85420-21010iAE111199809

NO.1,DENSO

main85420-21020iAE111199809-199904

NO.1,AISIN

sub85420-21010

main85420-21030iAE111199809-199904

NO.2,DENSO

sub85420-21040

main85420-21040iAE111199809

NO.2,AISIN

main85420-21050iAE111199809-199904

NO.3(LOCK UP),DENSO

sub85420-21060

main85420-21060iAE111199809

NO.3(LOCK UP),AISIN

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAE111199805

9030121009

main90301-21009

9161160616

main91611-60616

6 parts on this diagram · 1 diagram in section
