INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B6iAE111199805

MD.CHARCOAL,TRIM1#

sub81240-12060

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAE111199805

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE111199805

81260ALAMP ASSY, MAP

main81260-13010-B2iAE111199805

W(MOON ROOF),MD.CHARCOAL,TRIM1#

sub81260-13010

main81260-16061-B1iAE111199805

MD.CHARCOAL,TRIM1#

sub81260-16061

81260CBULB(FOR MAP LAMP)

main90981-12005iAE111199805

12V 8W

main90981-12014iAE111199805

12V 10W,W(MOON ROOF)

81261LENS AND COVER, MAP LAMP

main81261-13010-B1iAE111199805

W(MOON ROOF),MD. CHARCOAL,TRIM1#

sub81261-13010

main81261-16060iAE111199805

81870DLAMP ASSY, KEY CYLINDER

main81870-20050iAE111199805

81870EBULB, KEY CYLINDER LAMP

main90981-11014iAE111199805

14V 1.4W

9016445005

main90164-45005

9017906009

main90179-06009

9046706132

main90467-06132

9354054016

main93540-54016

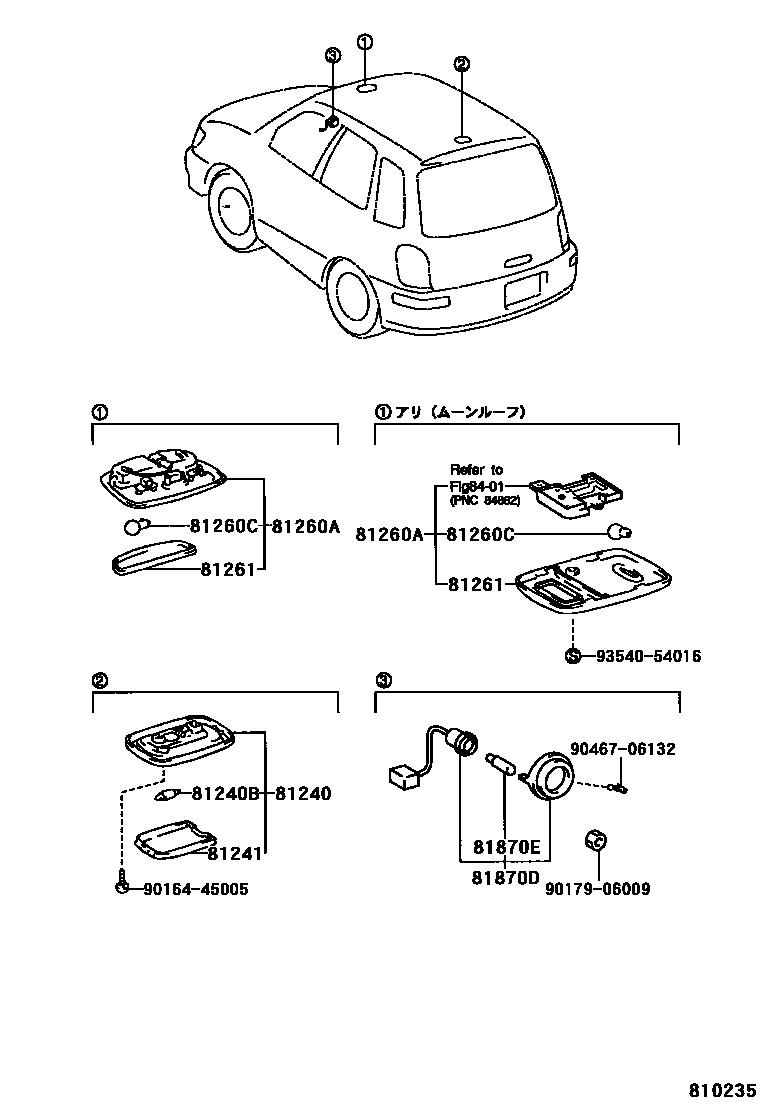

12 parts on this diagram · 1 diagram in section
