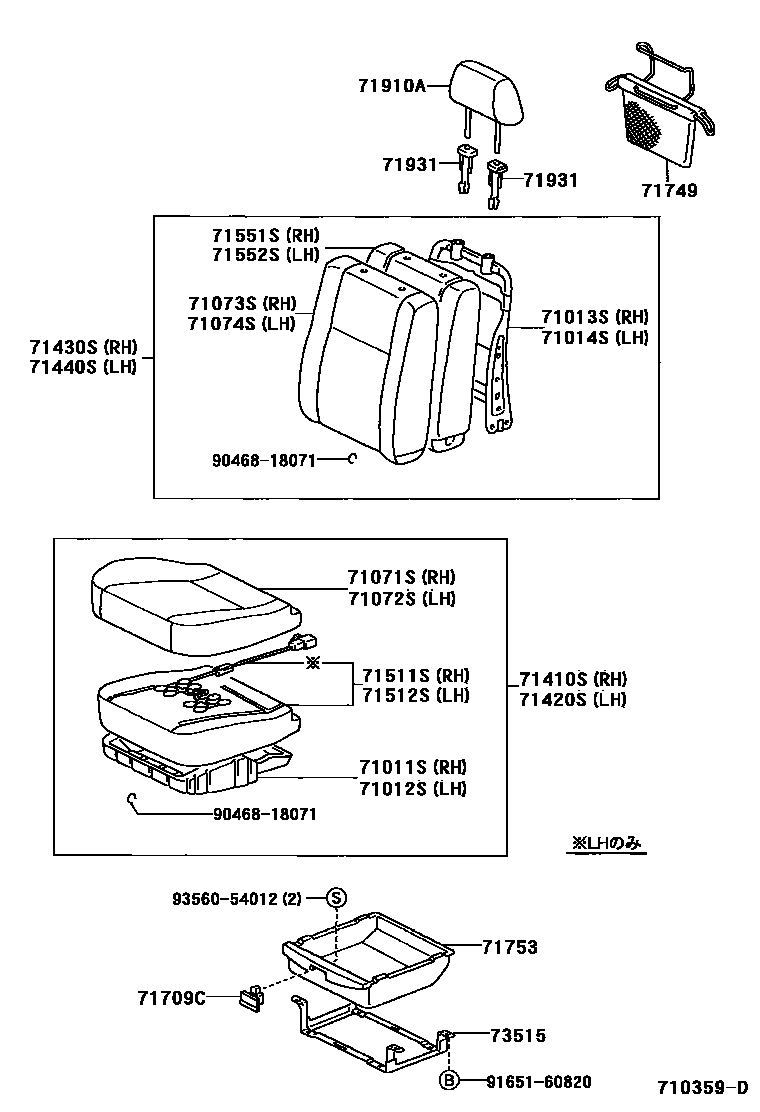

FRONT SEAT & SEAT TRACK

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-20430i199805

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-10230i199805

W(FRONT ROTATION SEAT)

main71011-13010i199805

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-13040i199805-199904

main71013-13060i199904

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71013-13040i199805

main71013-13050i199805

W(FRONT ROTATION SEAT)

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-13410-B2i199805-199904

MEDIUM CHARCOAL,TRIM1#

sub71071-13410

main71071-13560-B0i199904

MEDIUM CHARCOAL,TRIM1#

main71071-13570-B0i199912

HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-13520-B0i199805-199904

MEDIUM CHARCOAL,TRIM1#

main71072-13530-B0i199805-199904

W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71072-13600-B0i199904

MEDIUM CHARCOAL,TRIM1#

main71072-13610-B0i199912

HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

main71072-13630-B0i199904

W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71072-13640-B0i199912

HONG KONG SPORTS PACKAGE & W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-13391-B2i199805-199904

MEDIUM CHARCOAL,TRIM1#

main71073-13570-B0i199904

MEDIUM CHARCOAL,TRIM1#

main71073-13580-B0i199912

HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-13341-B2i199805-199904

MEDIUM CHARCOAL,TRIM1#

main71074-13351-B2i199805-199904

W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71074-13510-B0i199904

MEDIUM CHARCOAL,TRIM1#

main71074-13520-B0i199912

HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

main71074-13540-B0i199904

W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71074-13550-B0i199912

HONG KONG SPORTS PACKAGE & W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-13410-B2i199805-199904

***,MEDIUM CHARCOAL,TRIM1#

sub71410-13410

main71410-13610-B0i199904

***,MEDIUM CHARCOAL,TRIM1#

main71410-13620-B0i199912

***,HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-13580-B0i199805-199904

***,MEDIUM CHARCOAL,TRIM1#

main71420-13590-B0i199805-199904

***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71420-13710-B0i199904

***,MEDIUM CHARCOAL,TRIM1#

main71420-13720-B0i199904

***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71420-13770-B0i199912

***,HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

main71420-13780-B0i199912

***,HONG KONG SPORTS PACKAGE & W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-13411-B2i199805-199904

***,MEDIUM CHARCOAL,TRIM1#

main71430-13570-B0i199904

***,MEDIUM CHARCOAL,TRIM1#

main71430-13580-B0i199912

***,HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-13411-B2i199805-199904

***,MEDIUM CHARCOAL,TRIM1#

main71440-13421-B2i199805-199904

***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71440-13660-B0i199904

***,MEDIUM CHARCOAL,TRIM1#

main71440-13670-B0i199912

***,HONG KONG SPORTS PACKAGE,MEDIUM CHARCOAL,TRIM1#

main71440-13690-B0i199904

***,W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

main71440-13700-B0i199912

***,HONG KONG SPORTS PACKAGE & W(FRONT ROTATION SEAT),MEDIUM CHARCOAL,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-13030i199805

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-13010i199805

main71512-13020i199805

W(FRONT ROTATION SEAT)

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-13030i199805-199904

main71551-13050i199904

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-13030i199805

main71551-13040i199805

W(FRONT ROTATION SEAT)

71709CLOCK SUB-ASSY, SEAT UNDER TRAY

main55560-95J00-B3i199805

DK.CHARCOAL,TRIM1#

sub55560-95J00

sub55560-26010

sub72250-36010

main55560-95J00-C0i199904

BLACK,TRIM10

sub55560-95J00

sub55560-26010

sub72250-36010

71749NET, FRONT SEATBACK POCKET

main71749-13010-B0i199805-199904

SHADOW GRAY,TRIM1#

main71749-13010-B1i199904

SHADOW DRAY,TRIM1#

71753TRAY, FRONT SEAT UNDER

main71753-13010-B0i199805

DK.CHARCOAL,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-46010-B1i199805

MD.CHARCOAL,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-13030-B0i199805

W(LOCK),MD.CHARCOAL,TRIM1#

sub71930-13030

main71931-12040-P9i199805

W/O(LOCK),MD.CHARCOAL,TRIM1#

sub71931-12040

sub71931-10020

73515RAIL, FRONT SEAT UNDER TRAY, NO.1

main73507-13010i199805

9046818071

main90468-18071

9165160820

main91651-60820

9356054012

main93560-54012

25 parts on this diagram · 5 diagrams in section
