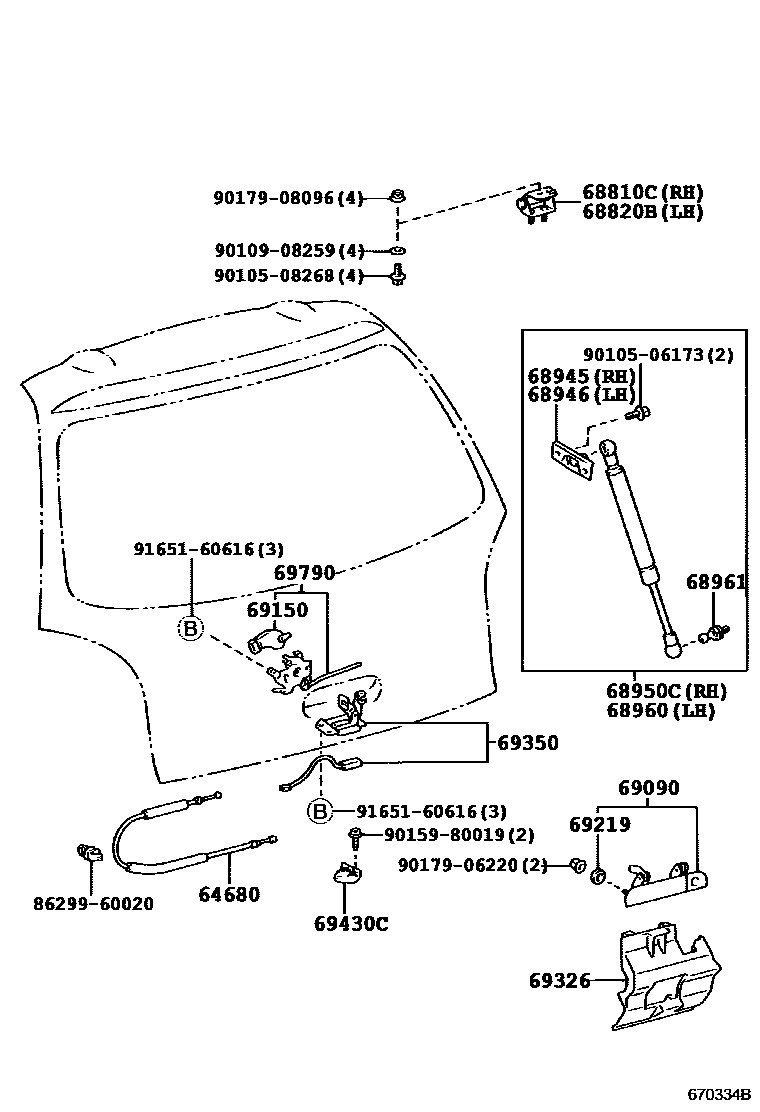

BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69150ACTUATOR ASSY, BACK DOOR LOCK
69219SEAL, BACK DOOR OUTSIDE HANDLE
69326PLATE, BACK DOOR OUTSIDE HANDLE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69790CONTROL ASSY, BACK DOOR LOCK
8629960020PAD, SPEAKER
main86299-60020
9010506173
main90105-06173
9010508268
main90105-08268
9010908259
main90109-08259
9015980019
main90159-80019
9017906220
main90179-06220
9017908096
main90179-08096
9165160616
main91651-60616
23 parts on this diagram · 1 diagram in section
