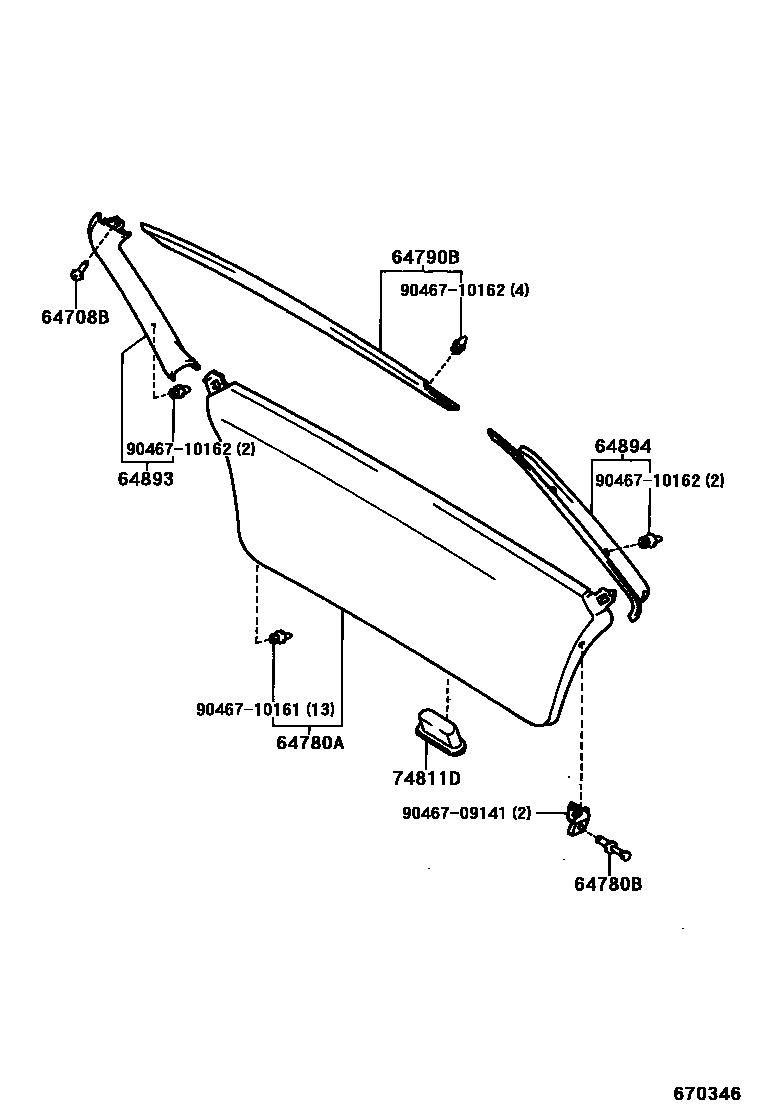

BACK DOOR PANEL & GLASS

0001 1 0002 1

64708BCLIP, BACK DOOR TRIM

main90467-07072-22iAE111199805

BLACK,TRIM1#

sub90467-07072

64780APANEL ASSY, BACK DOOR TRIM

main64780-13070-B0iAE111199805

MD.CHARCOAL,TRIM1#

sub64780-13070

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-07073-B1iAE111199805

MD.CHARCOAL,TRIM1#

sub90467-07073

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-13010-B0iAE111199805

MD.CHARCOAL,TRIM1#

64893COVER, BACK DOOR TRIM, UPPER, RH

main64893-13010-B0iAE111199805

MD.CHARCOAL,TRIM1#

64894COVER, BACK DOOR TRIM, UPPER, LH

main64894-13010-B0iAE111199805

MD.CHARCOAL,TRIM1#

74811DHANDLE, DOOR PULL

main74811-13010-B2iAE111199805

MD.CHARCOAL,TRIM1#

sub74811-13010

9046709141

main90467-09141

9046710161

main90467-10161

9046710162

main90467-10162

10 parts on this diagram · 2 diagrams in section
