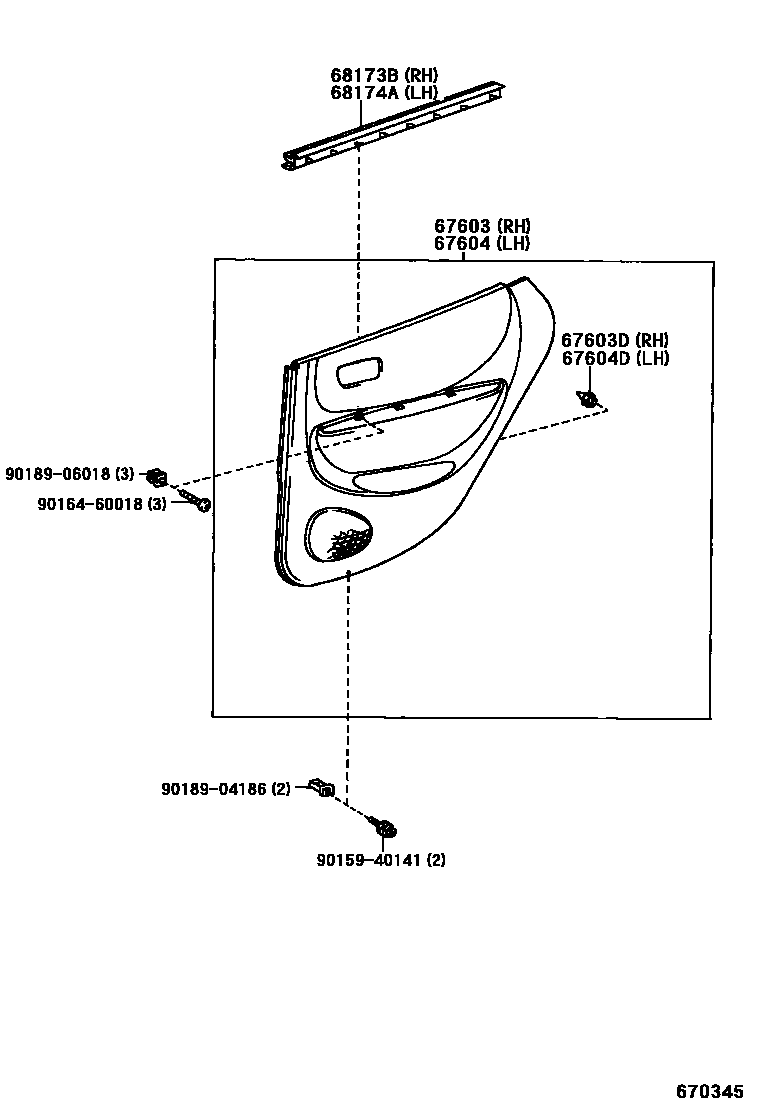

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-13570-B0iAE111199805-199904

MD.CHARCOAL,TRIM1#

main67630-13670-B0iAE111199904

DARK CHARCOAL,TRIM1#

main67630-13670-B1iAE111..05S199912

XXXX,TRIM1#

main67630-13680-B0iAE111..05S199912

HONG KONG SPORTS PACKAGE,DARK CHARCOAL,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050×6iAE111199805

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-13570-B0iAE111199805-199904

MD.CHARCOAL,TRIM1#

main67640-13670-B0iAE111199904

DARK CHARCOAL,TRIM1#

main67640-13670-B1iAE111..05S199912

XXXX,TRIM1#

main67640-13680-B0iAE111..05S199912

HONG KONG SPORTS PACKAGE,DARK CHARCOAL,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050×6iAE111199805

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-13020iAE111199805

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-13020iAE111199805

9015940141

main90159-40141

9016460018

main90164-60018

9018904186

main90189-04186

9018906018

main90189-06018

10 parts on this diagram · 2 diagrams in section
