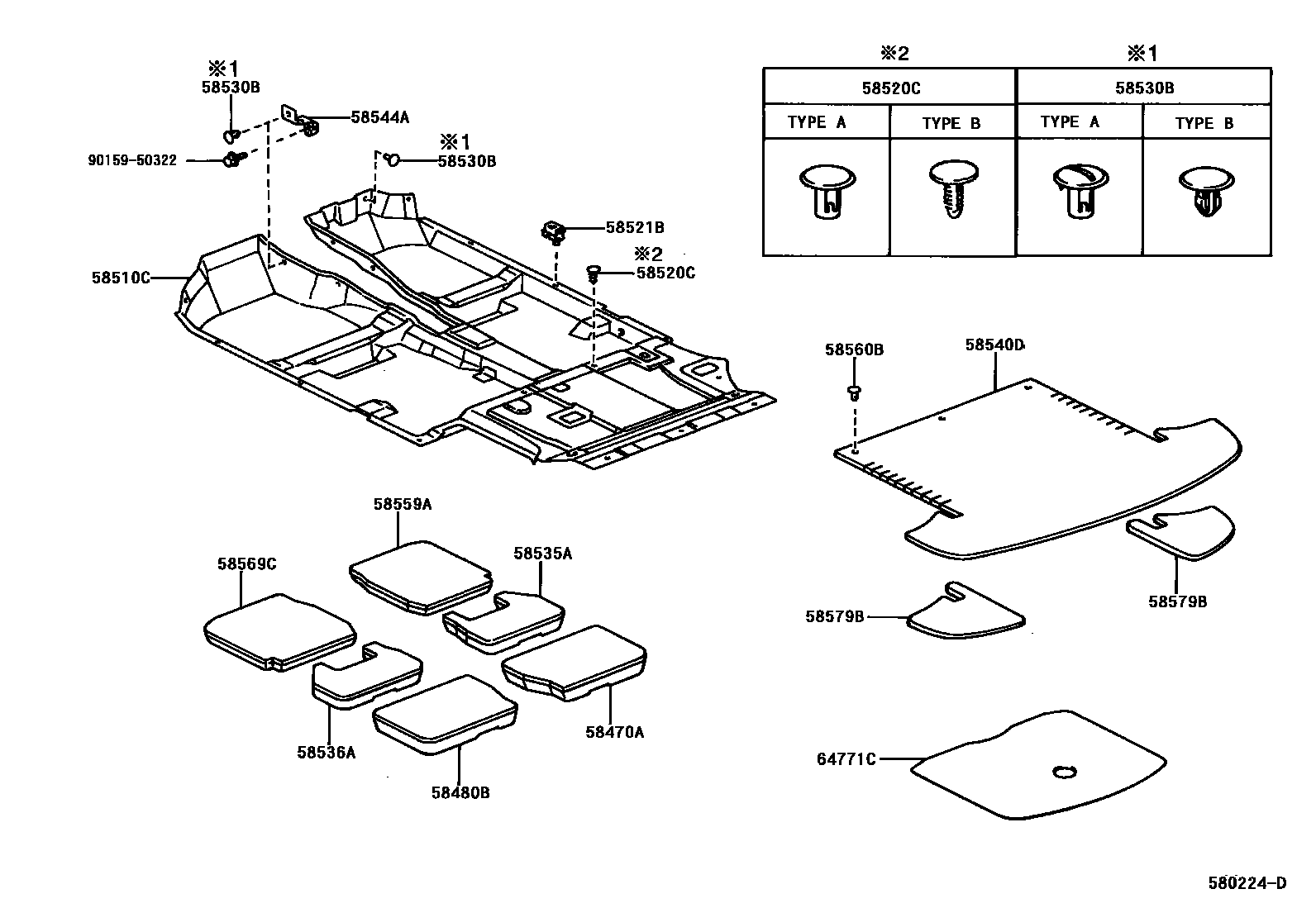

MAT & CARPET
58470ABOARD ASSY, REAR FLOOR, NO.1
58480BBOARD ASSY, REAR FLOOR, NO.2
58510CCARPET ASSY, FRONT FLOOR, FRONT
DARK CHARCOAL,TRIM1#
DARK CHARCOAL,TRIM1#
58520CCLIP(FOR FRONT FLOOR CARPET)
TYPE A:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
TYPE B:REFER TO ILLUSTRATION
58535ABOARD, FRONT FLOOR MAT, REAR NO.1
58536ABOARD, FRONT FLOOR MAT, REAR NO.2
58540DCARPET ASSY, FLOOR, REAR
MEDIUM CHARCOAL,TRIM1#
58544ABRACKET, FLOOR CARPET, LH
58559APAD, FRONT FLOOR SIDE, RH
58560BCLIP(FOR FLOOR CARPET, REAR)
TYPE A:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM1#
58569CPAD, FRONT FLOOR SIDE, LH
64771CCOVER, SPARE WHEEL
9015950322
main90159-50322
16 parts on this diagram · 1 diagram in section
