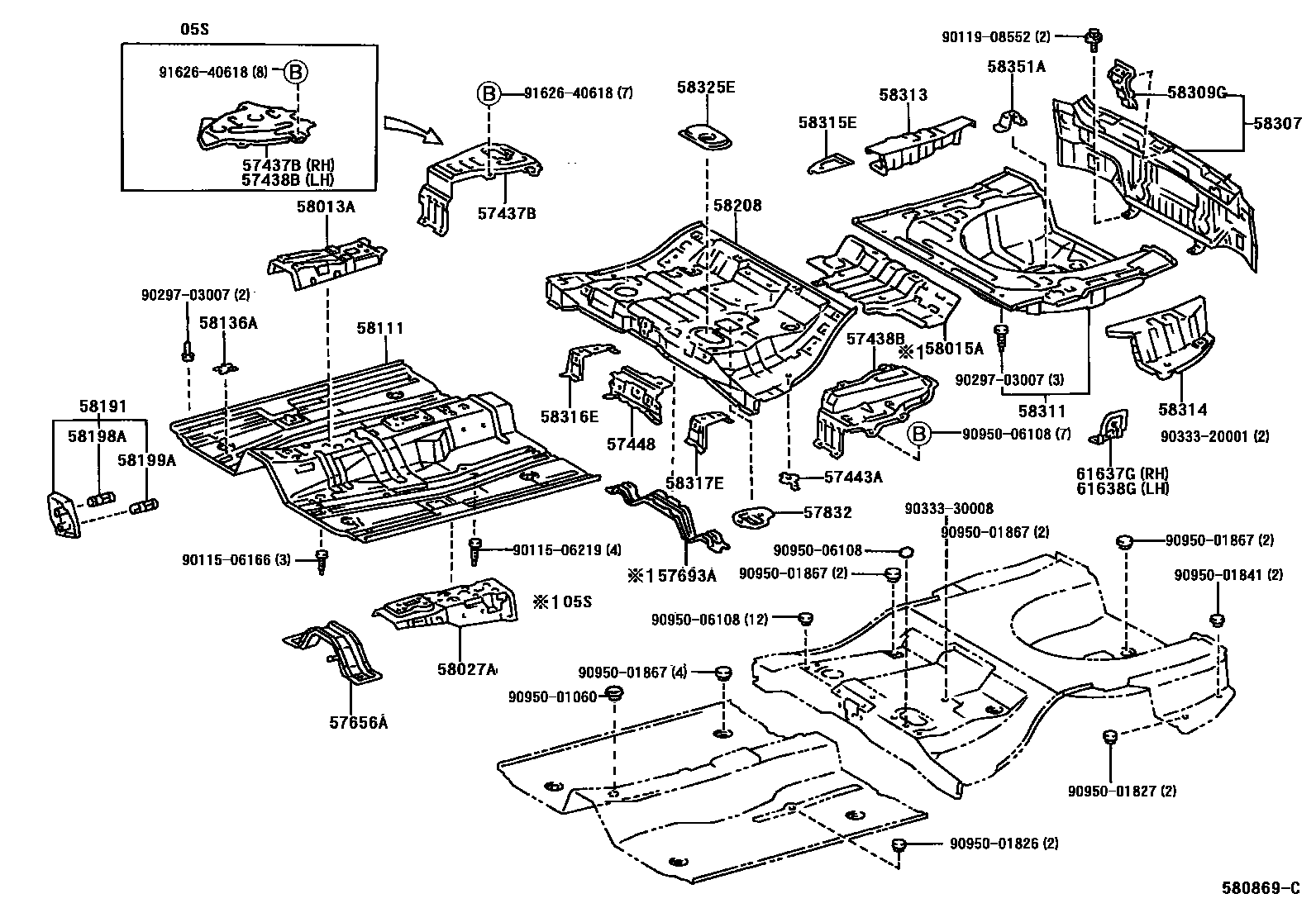

FLOOR PAN & LOWER BACK PANEL
57443ASUPPORT, SIDE STEP, REAR RH
57448RETAINER, CENTER FLOOR CROSSMEMBER
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57693AREINFORCEMENT, FUEL TANK MOUNTING BRACKET, RH
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
58013APANEL SUB-ASSY, FRONT FLOOR, REAR UPPER
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58136ACOVER, FRONT FLOOR SERVICE HOLE
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58307PANEL SUB-ASSY, BODY LOWER BACK
58309GRETAINER SUB-ASSY, BACK DOOR LOCK STRIKER
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58316ERETAINER, REAR SEAT SET
58317ERETAINER, REAR SEAT, NO.2
58325ECOVER, REAR FLOOR SERVICE HOLE
58351ABRACKET, SPARE WHEEL CARRIER
61637GBRACE, QUARTER WHEEL HOUSE, RH
61638GBRACE, QUARTER WHEEL HOUSE, LH
9011506166
main90115-06166
9011506219
main90115-06219
9011908552
main90119-08552
9029703007
main90297-03007
9033320001
main90333-20001
9033330008
main90333-30008
9095001060
main90950-01060
9095001826
main90950-01826
9095001827
main90950-01827
9095001841
main90950-01841
9095001867
main90950-01867
9095006108
main90950-06108
9162640618
main91626-40618
41 parts on this diagram · 1 diagram in section
