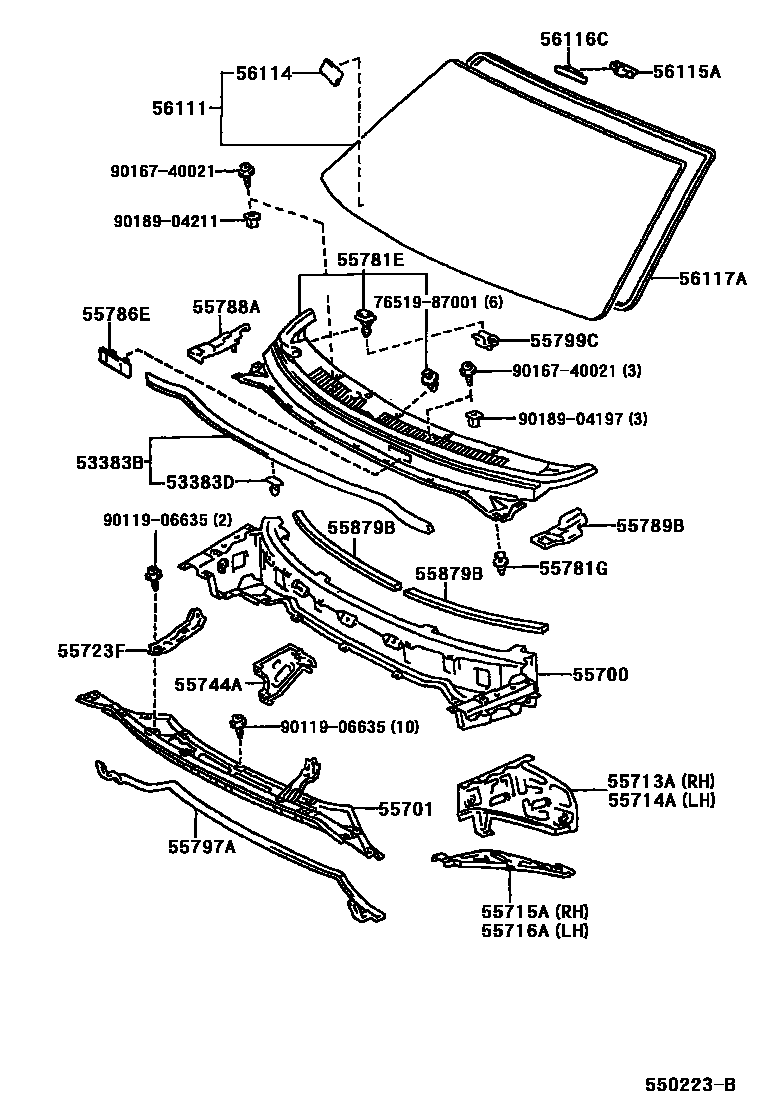

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55700PANEL ASSY, FRONT
55701PANEL SUB-ASSY, COWL
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55723FBRACE, COWL TOP TO COWL, INNER NO.3
55744AREINFORCEMENT, PEDAL BRACKET MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55786EPLATE, COWL TOP VENTILATOR LOUVER
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55797ASEAL, COWL WATER EXTRACT
55799CCLIP, COWL TOP VENTILATOR LOUVER
55879BSEAL, COWL VENT
56111GLASS, WINDSHIELD
*TL,T=4.76,GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
7651987001CLIP, FRONT END PANEL MOULDING, LH
9011906635
9016740021
9018904197
9018904211
28 parts on this diagram · 1 diagram in section
