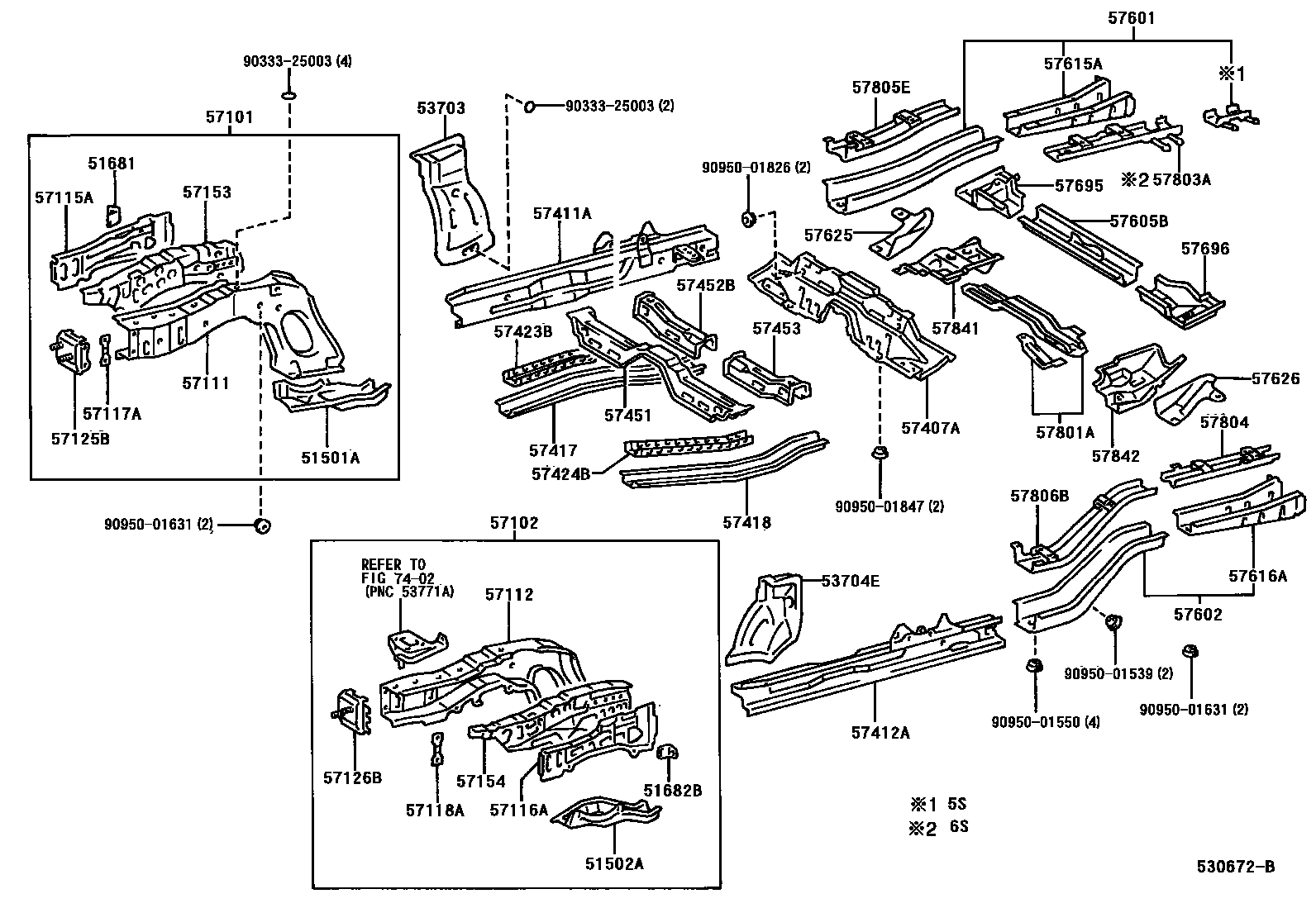

FLOOR SIDE MEMBER
51501AREINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51502AREINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51681BRACKET, FLEXIBLE HOSE
51682BBRACKET, FLEXIBLE HOSE, LH
53703APRON SUB-ASSY, FRONT FENDER, REAR RH
53704EAPRON SUB-ASSY, FRONT FENDER, REAR LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57125BREINFORCEMENT, FRONT SIDE MEMBER, RH
57126BREINFORCEMENT, FRONT SIDE MEMBER, LH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH
57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH
57451MEMBER, FRONT FLOOR CROSS
57452BMEMBER, FRONT FLOOR CROSS, NO.2
57453MEMBER, FRONT FLOOR CROSS, NO.3
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH
57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH
57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH
57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57842REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
7402
9033325003
9095001539
9095001550
9095001631
9095001826
9095001847
51 parts on this diagram · 1 diagram in section
