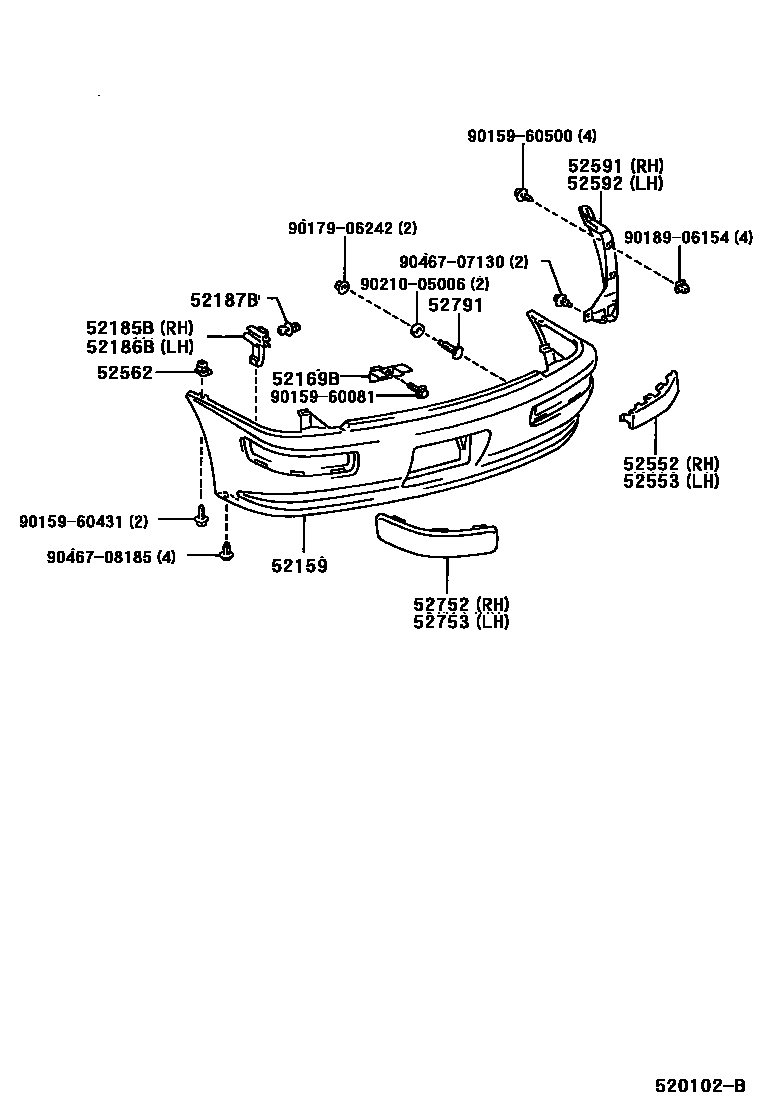

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-13902iAE111199805-199904

main52159-13903iAE111199904

52169BBRACKET, REAR BUMPER, CENTER

main52169-13020iAE111199805

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-13040iAE111199805-199904

main52185-13050iAE111199904

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-13040iAE111199805-199904

main52185-13050iAE111199904

52187BGUIDE, REAR BUMPER LOCATION

main52187-16070iAE111199805

52552FILLER, REAR BUMPER, RH

main52552-13030iAE111199805

52553FILLER, REAR BUMPER, LH

main52553-13030iAE111199805

52562RETAINER, REAR BUMPER, UPPER SIDE

main52562-12020iAE111199805

52591SEAL, REAR BUMPER SIDE, RH

main52591-13020iAE111199805-199904

main52591-13030iAE111199904

52592SEAL, REAR BUMPER SIDE, LH

main52592-13020iAE111199805-199904

main52592-13030iAE111199904

52752MOULDING, REAR BUMPER SIDE, RH

main52752-13010iAE111199805-199904

52753MOULDING, REAR BUMPER SIDE, LH

main52753-13010iAE111199805-199904

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010iAE111199805

sub90109-06354

9015960081

main90159-60081

9015960431

main90159-60431

9015960500

main90159-60500

9017906242

main90179-06242

9018906154

main90189-06154

9021005006

main90210-05006

9046707130

main90467-07130

9046708185

main90467-08185

21 parts on this diagram · 1 diagram in section
