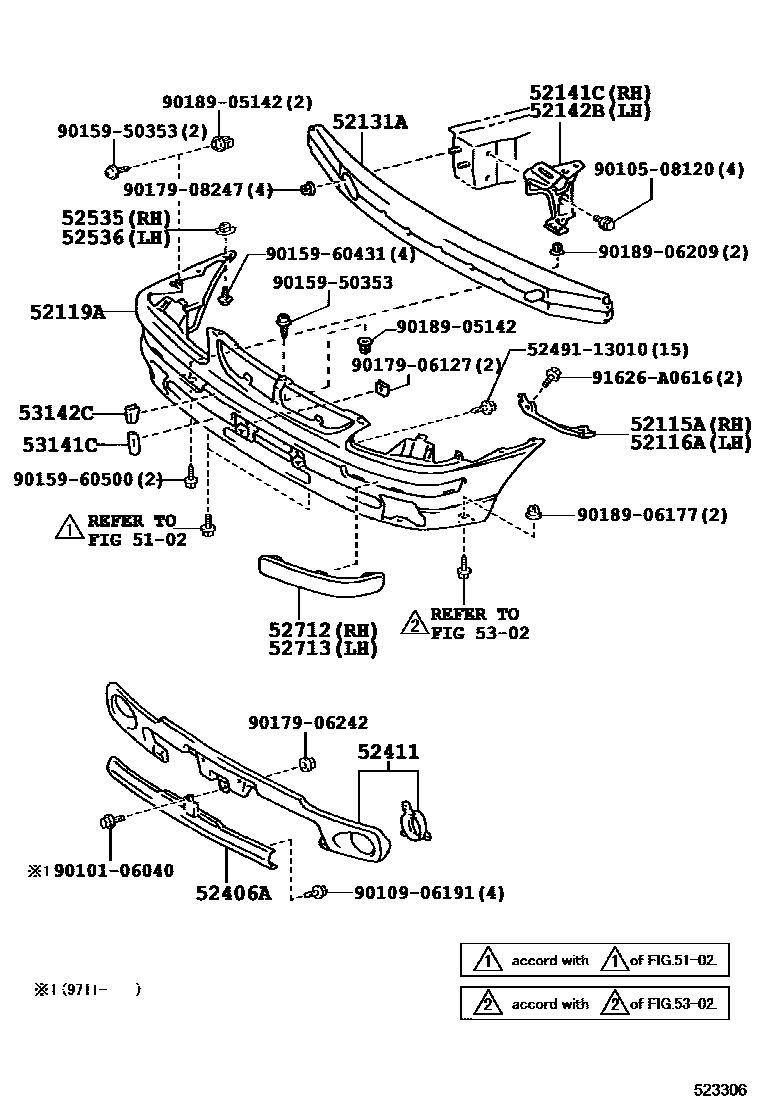

FRONT BUMPER & BUMPER STAY
5102
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
W(FOG LAMP)
W(FRONT FOG LAMP)
52131AREINFORCEMENT, FRONT BUMPER
52406AGARNISH SUB-ASSY, FRONT BUMPER GUARD
52411GUARD, FRONT BUMPER
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK ME.,205
SUPER RED 2,3E5
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
BLUE MC.,8M6
52535RETAINER, FRONT BUMPER SIDE, RH
sub52535-30150
52536RETAINER, FRONT BUMPER SIDE, LH
sub52535-30150
52712MOULDING, FRONT BUMPER SIDE, RH
52713PLUG, FRONT BUMPER MOULDING
5302
53141CGARNISH, RADIATOR GRILLE
W(FRONT FOG LAMP)
5249113010BOLT, BUMPER PAD
main52491-13010
9010106040
main90101-06040
9010508120
main90105-08120
9010906191
main90109-06191
9015950353
main90159-50353
9015960431
main90159-60431
9015960500
main90159-60500
9017906127
main90179-06127
9017906242
main90179-06242
9017908247
main90179-08247
9018905142
main90189-05142
9018906177
main90189-06177
9018906209
main90189-06209
91626A0616
main91626-A0616
30 parts on this diagram · 2 diagrams in section
