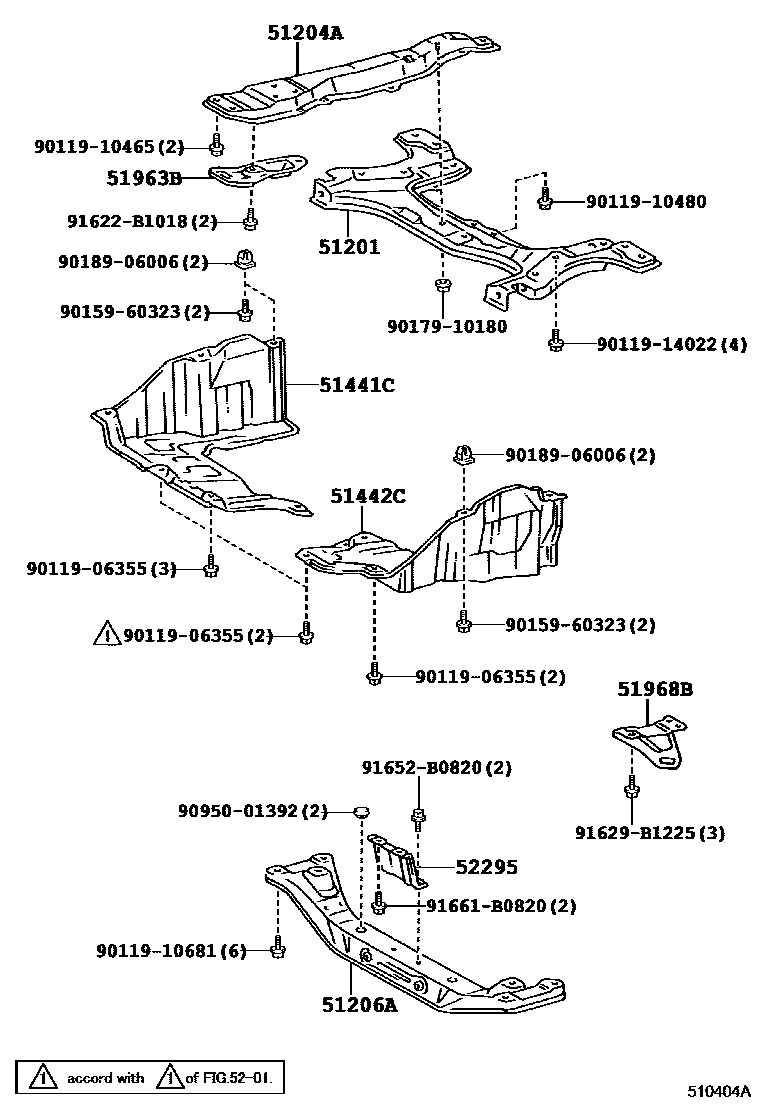

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12380iAE111199805

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE111199805-199905

sub51204-12081

main51204-12081iAE111199905-200001

sub51204-12082

main51204-12082iAE111200001

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE111199805

51441CCOVER, ENGINE UNDER, RH

main51441-12150iAE111199805

51442CCOVER, ENGINE UNDER, LH

main51442-12110iAE111199805

51963BHOOK, TRANSPORT, FRONT RH

main51963-12210iAE111199805

51968BHOOK, TRANSPORT, REAR LH

main51968-13020iAE111199805

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12020iAE111199805

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011910681

main90119-10681

9011914022

main90119-14022

9015960323

main90159-60323

9017910180

main90179-10180

9018906006

main90189-06006

9095001392

main90950-01392

91622B1018

main91622-B1018

91629B1225

main91629-B1225

91652B0820

main91652-B0820

91661B0820

main91661-B0820

21 parts on this diagram · 1 diagram in section
