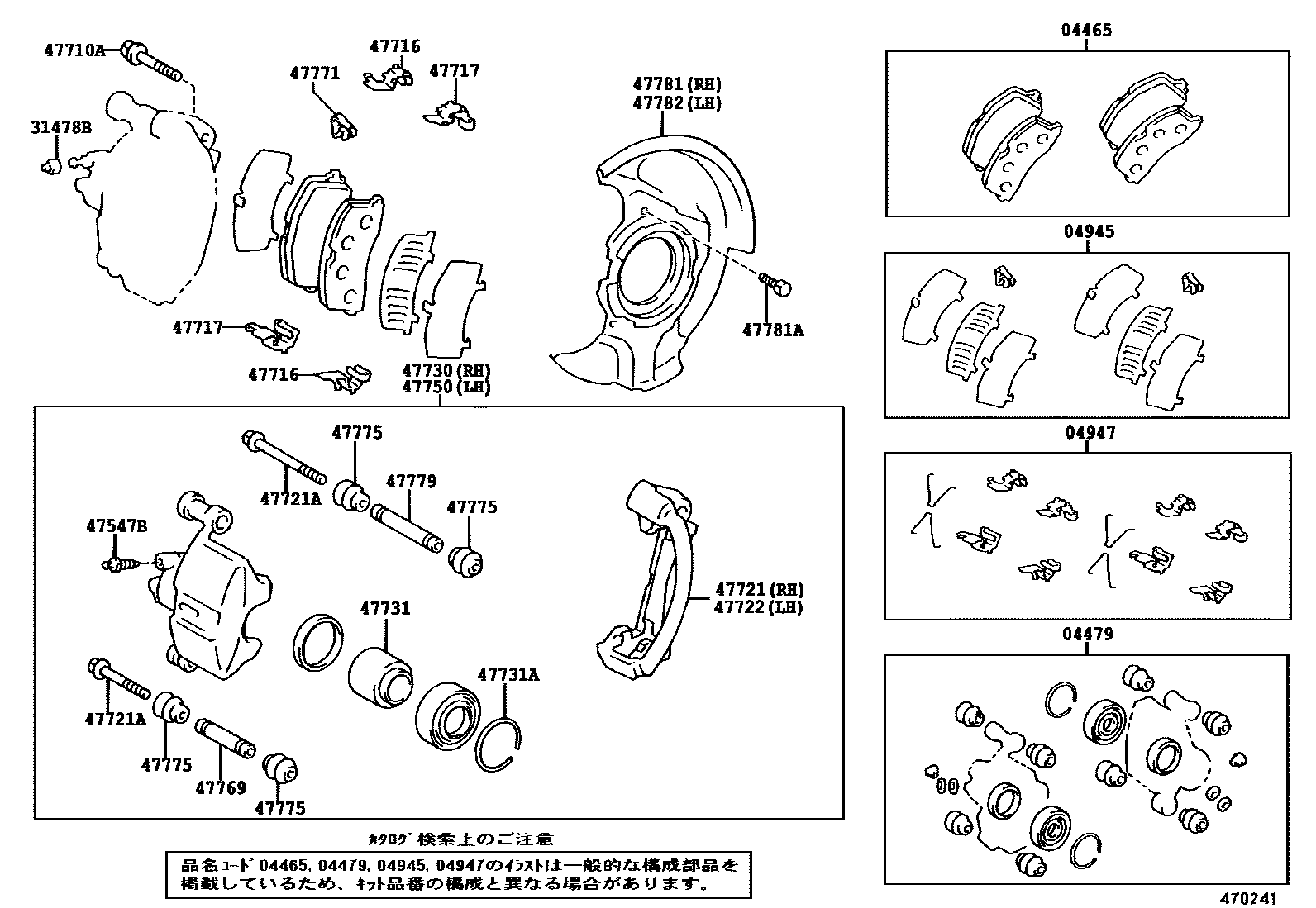

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-13010iAE111199805

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12140iAE111199805

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13020iAE111199805

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iAE111199805

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE111199805

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE111199805

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE111199805

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iAE111199805

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140iAE111199805

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12130iAE111199805

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAE111199805

*9-1.25PX71-25

main90119-09004iAE111199805

*9-1.25PX91-25

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12130iAE111199805

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12320iAE111199805

47731PISTON, FRONT DISC BRAKE

main47731-12130iAE111199805

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iAE111199805

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12320iAE111199805

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAE111199805

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iAE111199805

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010iAE111199805

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAE111199805

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12170iAE111199805

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAE111199805

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12170iAE111199805

23 parts on this diagram · 1 diagram in section
